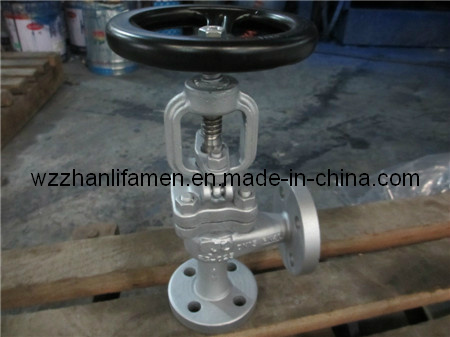

Details of the DIN Cast Steel Angle Type Globe Valve are below:
1. Technical Specifications:
(1)Design Standard: DIN EN 13709-2003
(2)Face to Face Dimensions: DIN EN588-1: 1995
(3)End Flange Dimension: DIN EN 1092-1: 2002
(4)Test Standard: DIN EN 12266: 2003
2. Performance Specifications: Please consult the tables below.
3. Main Parts and Materials: Please consult the tables below.
4. Main Sizes and Dimensions: Please consult the tables below.,
If this products interests you, please feel free to contact with us!
Quality First, Reputation Uppermost!
Performance Specifications |
Nominal Pressure | 1.6MPa | 2.5MPa | 4.0MPa |
Pressure Test | Intensity Test | 2.4MPa | 3.75MPa | 6.0MPa |
Back Seal Test | 1.76MPa | 2.75MPa | 4.4MPa |
Seal Test | 1.76MPa | 2.75MPa | 4.4MPa |
Gas Test | 0.6MPa | 0.6MPa | 0.6MPa |
Suitable Temperature | (-)29-425ºC |
Suitable Medium | W.O.G |
1.Body | GG GS-C25 SS304 SS316 | 9.Eye Bolt | B7,B8 |
2.Disc | C.C+13Cr SS304 SS316 | 10.land | GS-C25,304,316 |
3.Disc Nut | C.S. SS304 SS316 | 11.Nut | A1942H,8 |
4.Gasket | Graphite+S.S PTFE | 12.Stem | F6a,304,316 |
5. Bolt | A193-B7,A193-B8 | 13.Bonnet | GS-C25,304,316 |
6.Nut | A1942H,A194-8 | 14.Stem Nut | Bronze,304,316 |
7.Pin | C.S. SS304 SS316 | 16.Handwheel | A105,F304,F316 |
8.Packing | Flexible Graphite | 17.Washer | C.S.304 316 |
Size DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
L | PN16 | 90 | 95 | 100 | 105 | 115 | 125 | 145 | 155 | 175 | 200 | 225 | 275 | 325 | 375 | 425 | 475 |
PN25 | 90 | 95 | 100 | 105 | 115 | 125 | 145 | 155 | 175 | 200 | 225 | 275 | 325 | 375 | 425 | 475 |
PN40 | 90 | 95 | 100 | 105 | 115 | 125 | 145 | 155 | 175 | 200 | 225 | 275 | 325 | 375 | 425 | 475 |
H | PN16 | 185 | 188 | 255 | 275 | 303 | 310 | 337 | 425 | 435 | 500 | 554 | 718 | 815 | 932 | 992 | 1205 |
PN25 | 185 | 188 | 255 | 275 | 303 | 310 | 337 | 425 | 435 | 500 | 554 | 718 | 815 | 932 | 992 | 1205 |
PN40 | 185 | 188 | 255 | 275 | 303 | 310 | 337 | 425 | 435 | 500 | 554 | 718 | 815 | 932 | 992 | 1205 |
W | PN16 | 120 | 120 | 140 | 140 | 160 | 180 | 180 | 200 | 250 | 300 | 300 | 400 | 520 | 550 | 600 | 650 |
PN25 | 120 | 120 | 140 | 140 | 160 | 180 | 180 | 200 | 250 | 300 | 300 | 400 | 520 | 550 | 600 | 650 |
PN40 | 120 | 120 | 140 | 140 | 160 | 180 | 180 | 200 | 250 | 300 | 300 | 400 | 520 | 550 | 600 | 650 |
Weight /KG | PN16 | 4.5 | 5 | 5.5 | 7 | 10.6 | 12 | 15 | 21 | 36 | 53 | 65 | 120 | 165 | -- | -- | -- |
PN25 | 4.5 | 5 | 5.5 | 7 | 10.6 | 13 | 18 | 23 | 38 | 55 | 74 | 135 | 195 | -- | -- | -- |
PN40 | 5 | 5.5 | 6 | 7.5 | 11 | 14 | 20 | 24 | 40 | 57 | 82 | 160 | 215 | -- | -- | -- |
