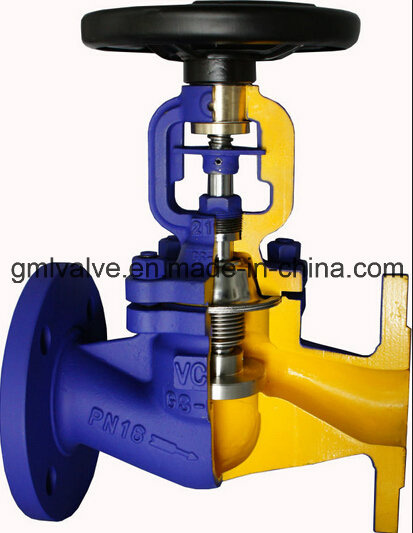

DIN API ANSI JIS KS BS GOST Cast Iron Flange Globe Valve with CE and ISO9001
DIN Globe Valve
Specifications
1)Nominal pressure:1.6MPa
2)Shell test:2.4MPa
3)Seal test:1.8MPa
4)Body:Grey iron
5)Bonnet:Grey iron
6)Disc:Grey iron GG25+2Cr13
7)Stem:Stainless steel
8)Seat ring:Stainless steel
9)Suitable medium:Water,oil,vapoor etc.
10)Actuator:Manual
Standard
Face to face:DIN3202-F1
Flange standard:DIN2532/2533
DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 |
D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 |
D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 |
