Specifications

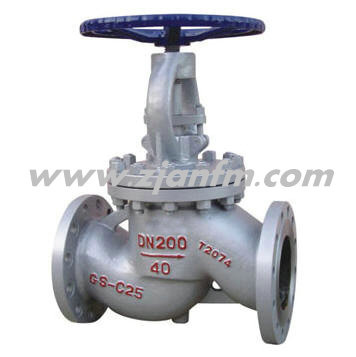

DIN Globe Valve Flanged End,
B. B, OS&Y, DIN Flanged End conform to DIN2545 or EN1092-1,
Design and Manufacture Standard: DIN3356,
Pressure: 40bar,
Body/Bonnet: Cast Carbon Steel GS-C25,
Disc: A105+13Cr,
Stem: A182 F6, Size: 100mm(4"),
Handwheel Operation
Applicable Standards:
-Design and Manufacture Standard: DIN3356
-Inspection and Test Standard: DIN3230, EN12266-1
-Pressure-Temperature Rating Standard: ASME B16.34
-Face to Face Dimension Standard: DIN3202-F1, EN558-1
-End Flanges Dimension Standard: DIN2545, EN1092-1
Design Description:
-B. B., bolted bonnet
-OS&Y, outside screw and yoke
-Rising Stem
-Flanged Ends
-Seal surface is build-up welding with Co hard alloy, which is attrition-resistant, corrosion-resistant, has good friction resistant and long life.
-Stem quenched and tempered, and its surface is treated by nitriding treatment, thus it has good corrosion resistant and friction resistant
Application:
Water, Oil, Gas, Refinery, Chemical, Petrochemical, Power Plant and General Industries.
The part material, flange and butt-welding end dimension can be selected according to current operating condition and users' requirement to meet the requirements of various engineering
Other type of DIN Globe Valve could be available
