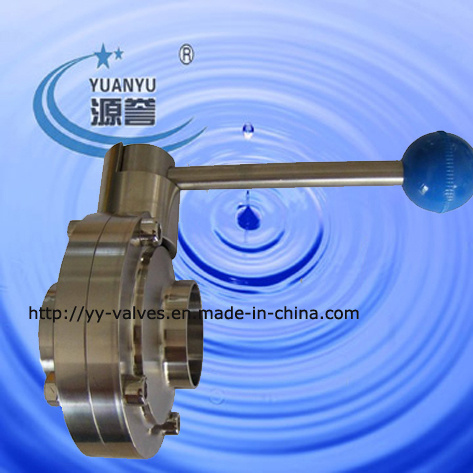

DIN Sanitary butterfly valve with welded ends
1)Material of valve: SUS304/SUS316L, AISI304, AISI316L
2)Size:DN25-DN150
Diameter:
28/25,34/31,40/37,53/50,70/66,85/81,104/100,129/125,154/150
3)Standard of valve: DIN Standard
4)Material of seal: Silicon/EPDM/FPM FDA117.2600
5)Connection mode: Welded ends
6)Power: Pulling handle/multi-position plastic handle/multi-position stainless steel handle/electric actuator/pneumatic head
7)Work principle: This kind of valve can be handled by manual or an electric actuator, and also can be handled by a pneumatic actuator.
8)Medium: Food, beverage, dairy, pharmacy.
9)certification: Metallurgical tests&pressure tests.
As a manufacturer, we can produce according to customer's requirement.
CE Certificate can be provided.
Technical Data |
| Material | Contact with the product components | 304/316L(1.4306/1.4404) | Can provide material inspection report |
| Materal no contact with the product components | 304(1.4301) |
| Sealing material | Standard | silicon | Adopt sealing material with all the seal material the FDA 117.2600 |
| Option | EPDM/FPM |
| Pressure | Pressure of work | 0-10 bar |
| Control air pressure | 5-8 bar |
| Temperature | Working temperature | Silicon:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC) |
| sterilization temperature | 150ºC(Max 20min) |
| Surface treatment | Inside surface treatment | Ra≥0.4-0.8μm |
|
| Surface treatment | Ra≥0.8-1.6μm |
|
| Connection | The diameter welding | DIN Standard |
| Connection mode: | weld connection |
| Optional driven | Brainpower |
| Pneumatic control | Pneumatic head and fixed bracket |
| Manual handle mode | pulling handle (round puling handle, square pulling handle) Position-P4 | Gripper handle(stainless steel&plastic) Postions-G12 | American type stainless steel gripper handle Postions-G12 |
| Type1 |
| Unit: mm |
| Size | Diameter Outside | Diameter Inside |
| DN25 | 28 | 25 |
| DN32 | 34 | 31 |
| DN40 | 40 | 37 |
| DN50 | 52 | 49 |
| DN65 | 70 | 66 |
| DN80 | 85 | 81 |
| DN100 | 104 | 100 |
| Type2 |
| Unit: mm |
| Size | Diameter Outside | Diameter Inside |
| DN25 | 28 | 25 |
| DN32 | 34 | 31 |
| DN40 | 40 | 37 |
| DN50 | 53 | 50 |
| DN65 | 70 | 66 |
| DN80 | 85 | 81 |
| DN100 | 104 | 100 |
| More than DN100, please contact us for data. |
| Type3 |
| Unit: mm |
| Size | Diameter Outside | Diameter Inside |
| DN25 | 31 | 26 |
| DN32 | 37 | 32 |
| DN40 | 43 | 38 |
| DN50 | 55 | 50 |
| DN65 | 72 | 66 |
| DN80 | 87 | 81 |
| DN100 | 106 | 100 |
