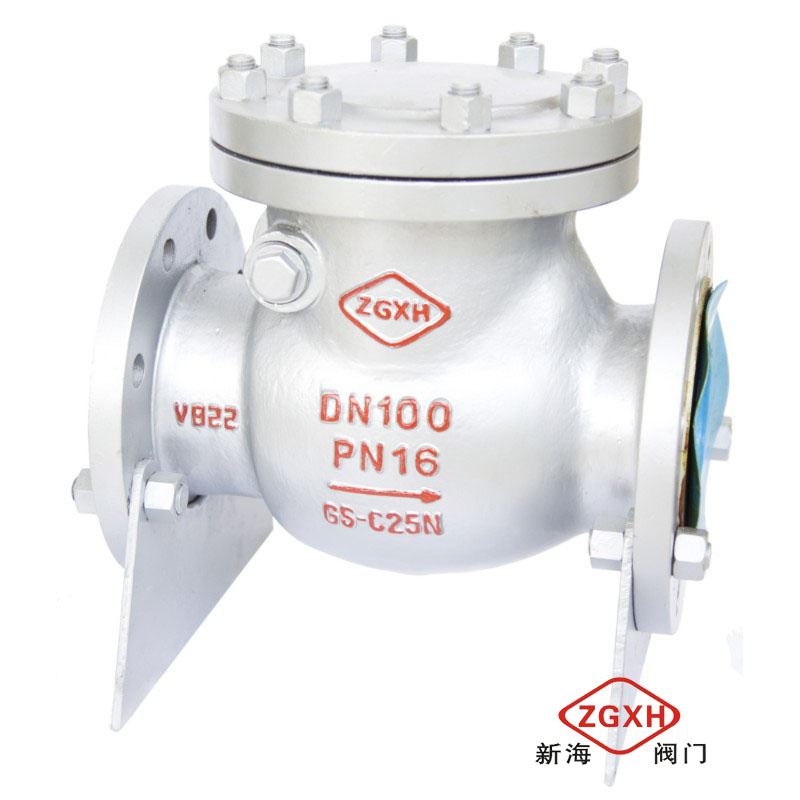

DIN Swing Check Valve (H44H)
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
3/Set |
| Pay Type: |
L/C,T/T |
Material: 1.0619(GS-C25), 1.4308, 1.4408, 1.7363, 1.7357, 1.7380
PN16 Size: DN40~DN900
PN25 Size: DN40~DN900
PN40 Size: DN40~DN900
PN63 Size: DN40~DN600
PN100 Size: DN40~DN600
Stardards:
A) Design and manufacture: DIN3840, BS EN 1868
B) Face to face and end to end: DIN3202, BS EN 558-1
C) Flange end dimensions: DIN2543, BS EN 1092-1, DIN2544, DIN2545, DIN2546, DIN2548
D) Inspection and test: DIN3230, BS EN12569.
|
Part Name |
Material |
|
1 |
Body |
DIN 17245 GS-C25+CR13 |
DIN 17245 GS-C25+STL |
DIN 17245 GS-C25+STL |
DIN 17445 1.4308 |
DIN 17445 1.4408 |
|
2 |
Disc |
DIN 17245 GS-C25+CR13 |
DIN 17245 GS-C25+CR13 |
DIN 17245 GS-C25+STL |
DIN 17445 1.4308 |
DIN 17445 1.4408 |
|
9 |
Cover |
DIN 17245 GS-C25 |
DIN 17245 GS-C25 |
DIN 17245 GS-C25 |
DIN 17445 1.4308 |
DIN 17445 1.4408 |
|
3 |
Arm |
DIN 17245 GS-C25 |
DIN 17245 GS-C25 |
DIN 17245 GS-C25 |
DIN 17445 1.4308 |
DIN 17445 1.4408 |
|
5 |
Pin |
ASTM A182 F6a |
ASTM A182 F6a |
ASTM A182 F6a |
ASTM A182 F304 |
ASTM A182 F316 |
|
6 |
Nut |
ASTM A194 2H |
|
|
ASTM A194 8 |
ASTM A194 8 |
|
7 |
Bolt |
ASTM A197 B7 |
|
|
ASTM A193 B8 |
ASTM A193 B8 |
|
4 |
Nut |
ASTM A194 2H |
|
|
ASTM A182 F304 |
ASTM A182 F316 |
|
8 |
Gasket |
SS Sprial Wound W/graphite, or SS Spiral Wound W/PTFE, or Reinforced PTFE |
| Prod Model: |
H44 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel |
| Structure: |
Swing |
| Connection Form: |
Flange |
Zhejiang Xinhai Valve Manufacturing Co., Ltd, located in Oubei, Wenzhou city, was established in 1986. with more than 20 years experience, our company now becomes a professional valve manufacturer by developing, manufacturing, marketing and servicing. And it covers an area of 10, 000 square meters and has two subsidiary factories.
Our product includes gate, check, globe, ball, butterfly, plug, strainer and other valve. The valves are manufactured according to ANSI, API, DIN, GOST, BS, JIS, Chinese GB standers and the customers' requirements. These products have been installed throughout the world, having a wide variety of applications in the Gas, Oil, Refining, Chemical, Marine, Power Generation and Pipeline Transmission Industries.
Pressure range: Class125-Class2500, PN6-PN420
Size range: NPS1/2-NPS48
Operation type: Manual, gearbox, chain wheel, pneumatic, electronic, etc
Connection End: Flanged, BW, SW, NPT, wafertype, etc.
Materials(casting): WCB, WCC, LCB, LCC, LC1-3, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC5, WC6, WC9, Monel, etc.
In order to introduce the international quality management system, Xinhai have got the approval o ISO 9001, API-6D, CE and Chinese TSG certification. Also, Xinhai established a multi-functionl phys-chemical lab to futher supervise the quelity time to time and fittde out spectrum analyzer, portable spectrograph(PMI), impact tester, hardness meter, tensile tester, thickness meter, magnetic particle tester, gugitive emission tester and NDE testing equipment.
