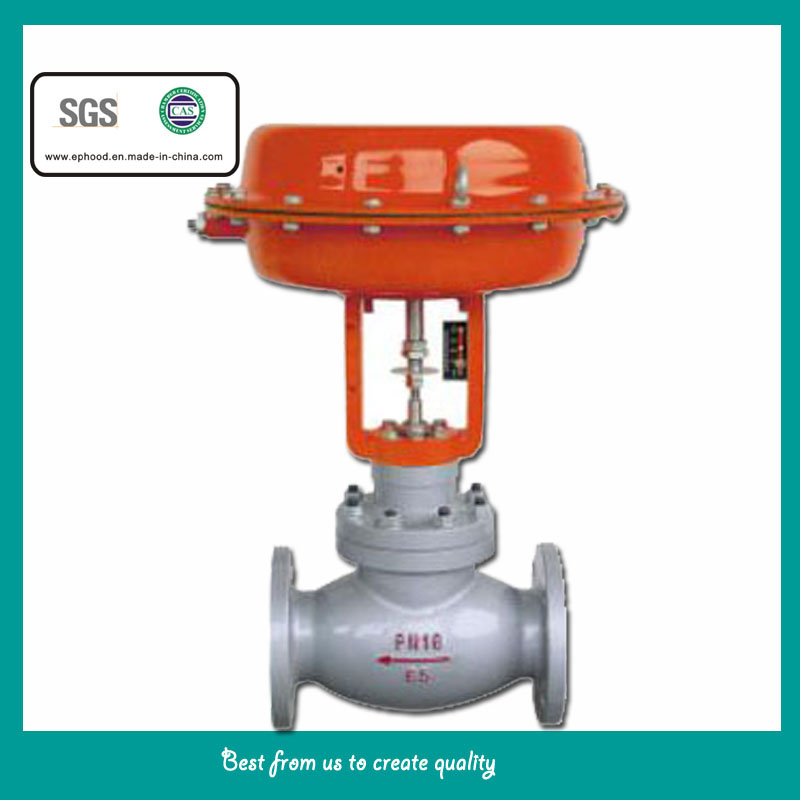

Dn50, pneumatic diaphragm shut-off valve
Body material: Cast iron, cast steel
DN: 20~200
PN: 10, 16, 40, 64
Temperature: -60~450° C
Power: Pneumatic
Medium: Gas, liquid, oil, steam
Seat: Stainless steel
Packing: PTFE, flexible graphite
1) Using balanced valve disk structure, the axial unbalanced force is small, allows the differentialpressure is big, good stability
2) Sleeve strong interchangeability, tear open outfit is convenient, easy to maintenance
3) All metal valve core structure for a variety of workplace, reach the standard level IV leakage, ZXMQ type sealing structure of valve core reach the standard grade VI leakage
4)Body according to the fluid mechanics principle designed to uniform the low flow resistance port, wide adjustable range, inherent adjustable ratio of 50, rated flow coefficient increases by 30%
5) Actuator adopts more spring structure, highly reduced by 30%. 30% reduction in weight
|
Nominal diameter |
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
A
|
282
|
308
|
394
|
498
|
L
|
PN16 , 40
|
150
|
160
|
180
|
200
|
230
|
290
|
310
|
350
|
400
|
480
|
600
|
PN64
|
230
|
230
|
260
|
260
|
300
|
340
|
380
|
430
|
500
|
550
|
650
|
H 1
|
PN16
|
52.5
|
57.5
|
70
|
75
|
82.5
|
92.5
|
100
|
110
|
125
|
142.5
|
170
|
PN40
|
52.5
|
57.5
|
70
|
75
|
82.5
|
92.5
|
100
|
117.5
|
135
|
150
|
187.5
|
PN64
|
65
|
70
|
77.5
|
85
|
90
|
102.5
|
107.5
|
125
|
147.5
|
172.5
|
207.5
|
H
|
High temperature
type |
PN16
|
429
|
438
|
474
|
477
|
502
|
626
|
662
|
687
|
836
|
896
|
987
|
PN40
|
429
|
438
|
474
|
477
|
502
|
626
|
662
|
695
|
845
|
896
|
1000
|
PN64
|
456
|
468
|
511
|
525
|
535
|
663
|
673
|
705
|
868
|
958
|
1260
|
|
|
570
|
570
|
610
|
610
|
630
|
730
|
810
|
820
|
960
|
1090
|
1180
|
