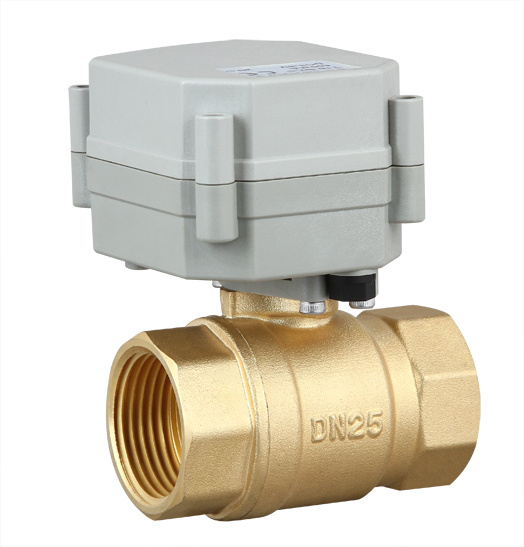

Specification:
Size: 1''
Rated Voltage: DC5V, DC12V, DC24V, AC/DC7-35V, AC/DC110V-230V
Wiring control: CR201, CR202, CR301, CR302, CR303, CR401
Manual override: NO
Indicator: NO
Max. Working pressure: 1.0MPa
Body: Brass/stainless
Actuator: Modified plastic
Internal diameter: 24mm
Torque: 2N.m
Protection class: IP67
Product Characteristics:
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification

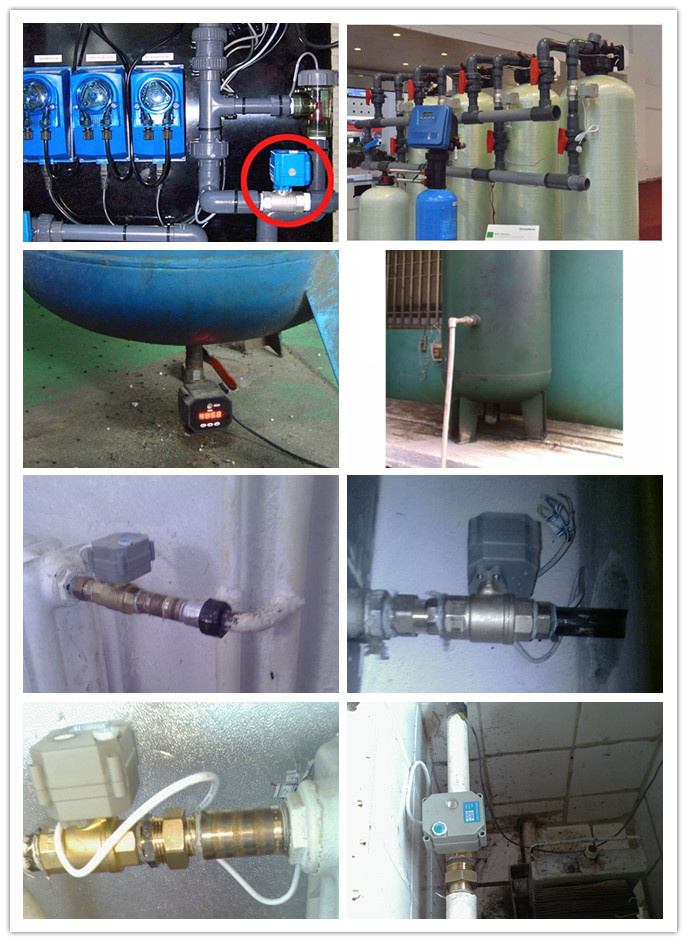

Suitable Application:
1. IC card water meters, heat energy meters, solar water heats instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water systems, Water heater, washing machine, AHW etc.
6. Air or geothermal heat pumps
Product size |
NPT 1/2" NPT 3/4" NPT 1" NPT 1-1/4" Optional |
Maximum working pressure |
1.0MPa |
Circulation medium |
Fluid, air |
Rated voltage |
DC5V, DC12V, DC24V, AC/DC7-35V, AC/DC110V-230V Optional |
Wiring control methods |
CR2-01 CR2-02 CR3-01 CR3-02 CR3-03 CR401 Optional |
Working current |
≤80MA |
Open/close time |
≤5S |
Life time |
70000 times |
Valve Body material |
Brass Nickel plated Brass 304 Stainless steel 306 Stainless steel Optional |
Actuator material |
Engineering Plastics |
Sealing material |
EPDM & PTFE |
Actuator rotation |
90 degree |
Cable length |
0.5M, 1.5M, 7M |
Max. torque force |
2 Nm, 10Nm Optional |
Environment temperature |
-15centigrade - 50 centigrade |
Liquid temperature |
2centigrade - 90centigrade |
Manual override |
Yes No Optional |
Indicator |
Yes No Optional |
TaizhouTonhe Flow Control Equipment Co., Ltd. is a professional manufacturer and exporter of electric control valves from 2008, We always pay high attention to the quality control and new products R&D. Specialized in motorized valves, electric fluid control valves, electric actuator, with intelligent design, manufacture, sales and technical service.

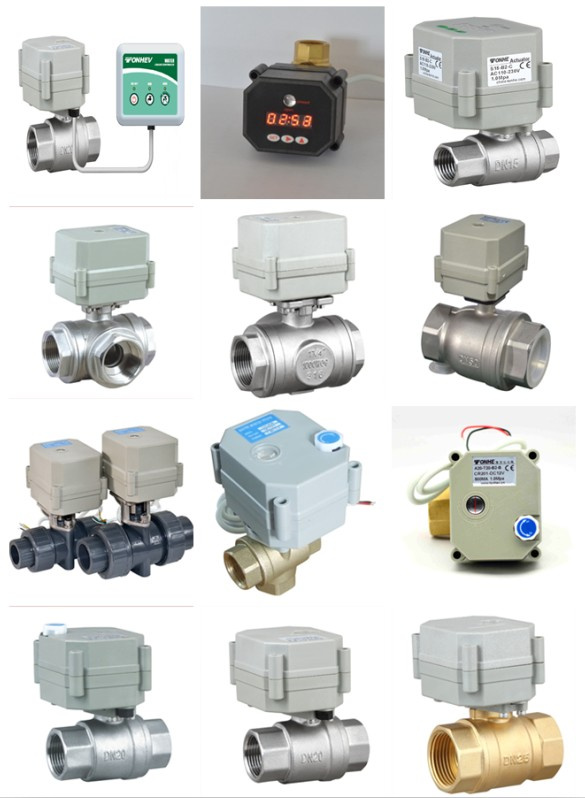

Our main products are Tonhe series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features. They are widely used in automatic water pump tanks, automatic watering, heat meter, central air conditioning fan coil, fire sprinkler, water treatment, water efficiency, solar instrument, Agriculture Irrigation equipment, industrial automatic control equipment, and so on.
