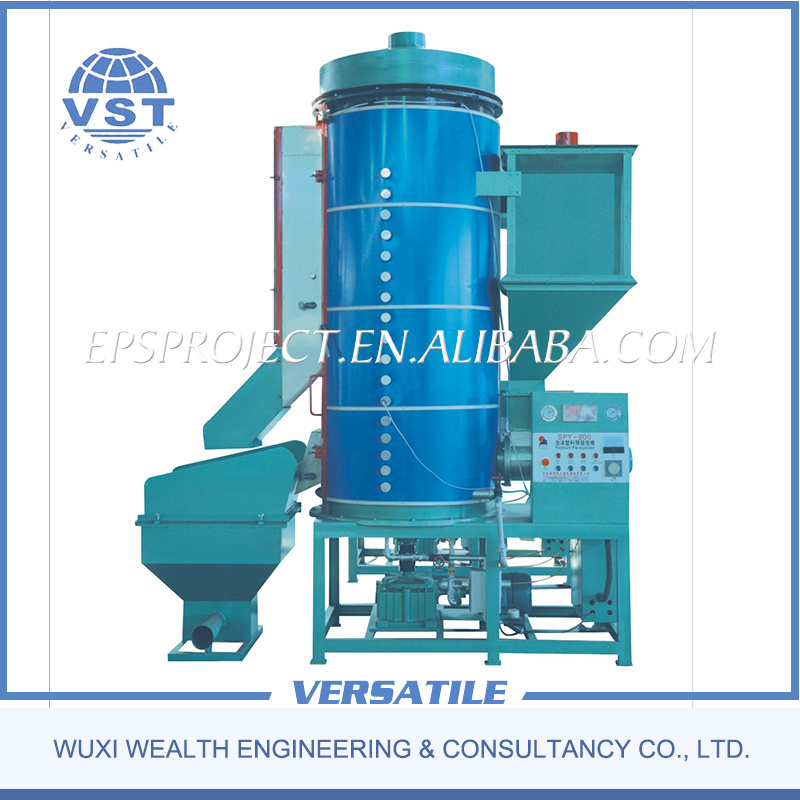

Dong-shan EPS Batch Foaming Machine
Main Features:
1, All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.
2, With primary and secondary expansion device to get density of 8-30g/l
3, Fist filling is controlled by frequency converter
4, With power-off protection device
5, With Japan steam presure reducing valve
| TECHNICAL DATA |
|
|
|
|
| Item |
| FDS930B | FDS1100B | |
| Expansion Chamber | Diameter
Volume
Useable volume | Φ 900mm
0.9m³
0.75m³ | Φ 1100mm
1.4 m³
1.0m³ |
|
| Steam | Entry
Consumption
Pressure | DN50
4-6kg/cycle
0.6-0.8MPa | DN50
6-8kg/cycle
0.6-0.8MPa |
|
| Compressed Air | Entry
Pressure | DN50
0.5-0.8MPa | DN50
0.5-0.8MPa |
|
| |
| | |
|
| Throughout | 10g/l
15g/l
20g/l
30g/l | 230g/l
320g/l
450g/l
670g/l | 320g/l
550g/l
750g/l
850g/l | |
| Material Conveying Line |
| Φ 150mm | Φ 150mm |
|
| Connected Load |
| 15.5Kw | 17.5Kw | |
| Density | | 10~50 | 10~40 | |
| Overall Dimension | (L*W*H) | 2700*4200*5900(mm) | 2900*4500*5900(mm) |
|
| Weight |
| 2700kg | 3200kg | |
| Room Height Required |
| 3000mm | 3000mm |
|

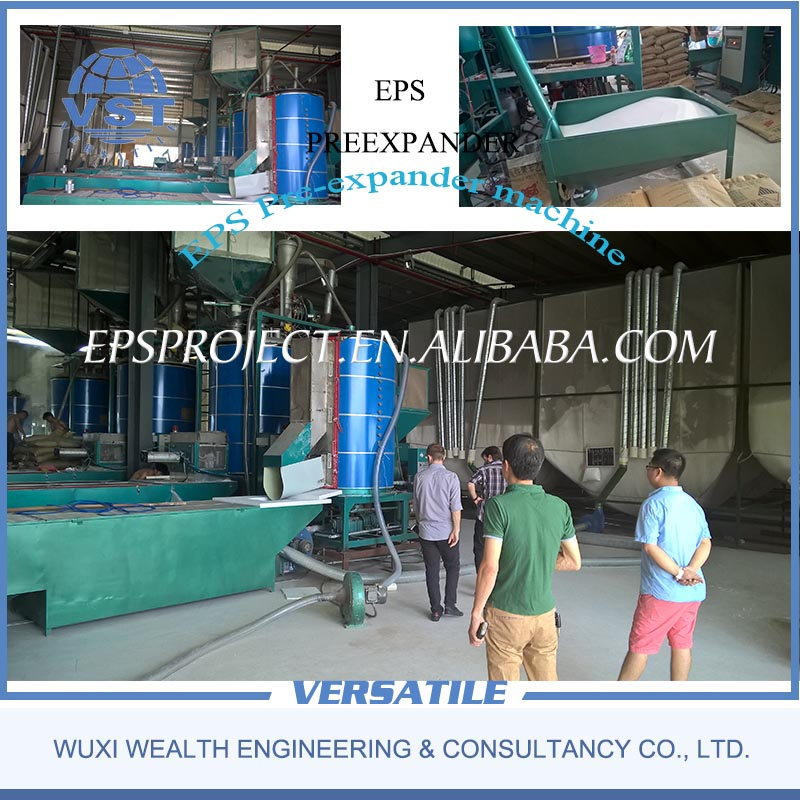

EPS Machine Pre-expander
Fuyang Wealth Imp&Exp Co., Ltd. Was founded in 2009, dealing with different kinds of equipment and engineering projects. Our main products are EPS raw material production line, EPS machines, cold room, Sandwich panel line, and some food processing equipment etc. At present, we are the only supplier in China to supply EPS raw material production line overseas successfully. Apart from our main equipment, we also help clients to search professional manufacturer for their required products. We offer one-station service to our clients, including factory checking and selection, production follow-up, product inspection, container loading supervision, after-sales service.
We stick to the principle of Service first, Quality first and develop our business heartfully and responsibly. We have technical person to check factories, to inspect products, and to communicate with manufacturers. We pay whole life responsibilty to the products we sell to our clients. We sincerely hope establishing long and friendly business relationship with clients from all over the world.
For those who suffer from distinguishing suppliers from long lists in B2B websites, and who have large range of products request but hesitate to pay multiple visits in China due to distance and time cost, we could therefore serve as your deputy in sourcing in China. We will share with you our experience and knowledge in market, make factory vsit and arrange every details well for you in China. We will be fast responser for any of your communication.
We are looking forward to your cooperation!
