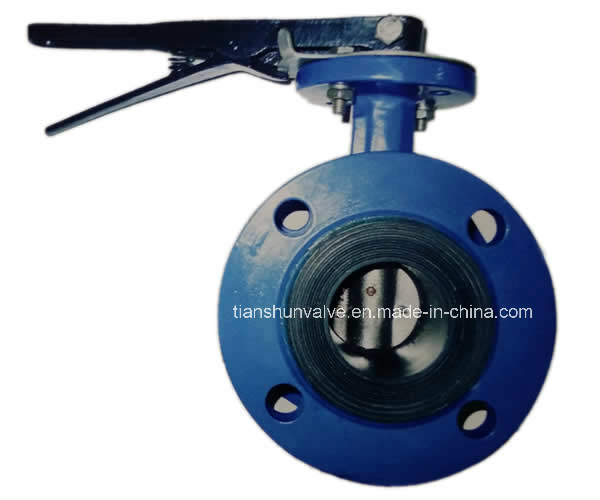

Lever operated double flanged butterfly valve are with these features:
Designed and Manufactured to BSEN593 and MSS SP-67 and API 609
Suitable to ANSI 125/150, BS4504, DIN flanges
Size Ranges: NPS 2"~52"
Pressure Rating: PN10/16, ANSI125/150/300/600/900
Materials available in Iron, Steel, Stainless Steel, Duplex and Bronze, Seat Material in Both Resilient and Metal Type, Different trim materials available to suit different service conditions
Fire-safe design to API 608/API 6FD upon request
To MSS SP 01-75 On request
Operations: Lever, Worm-gear, Electric, Pneumatic and Hydra-pneumaticLever operated double flanged butterfly valve are with these features:
Designed and Manufactured to BSEN593 and MSS SP-67 and API 609
Suitable to ANSI 125/150, BS4504, DIN flanges
Size Ranges: NPS 2"~52"
Pressure Rating: PN10/16, ANSI125/150/300/600/900
Materials available in Iron, Steel, Stainless Steel, Duplex and Bronze, Seat Material in Both Resilient and Metal Type, Different trim materials available to suit different service conditions
Fire-safe design to API 608/API 6FD upon request
To MSS SP 01-75 On request
Operations: Lever, Worm-gear, Electric, Pneumatic and Hydra-pneumatic
|
DESIGN |
MSS-SP-6B |
|
ENDS CONNECTION |
RF |
|
PRE-TEMP.RATING |
ASME B 16.34 |
|
INSPECT & TEST |
API 598 |
|
F-F DIMENSION |
DIN 3202 |
|
FLANGED DIMENSION |
DIN 2543 |
|
MARKING |
MSS-SP-25 |
|
FIRE SAFE DESIGN |
API 607 |
|
PAINTING |
VATAC STD |
|
PAINTING |
-- |
Tianjin Tanggu tianshun valve Industries Limited is located in China's largest production base of the valve; High - Tech Development Zone, Tanggu District, Tianjin Marine, was professional design and manufacture all kinds of butterfly valves Factory production ( ISO9002 certification ), the annual production capacity of 150, 000 sets. The company's wafer butterfly valve, butterfly valve, Flanged butterfly valves are exported to Europe, Africa, Middle East and Southeast Asian countries and regions, special don't be eco - friendly nylon coating, the company developed and produced series of PTFE coating, anti-corrosion butterfly valve, gathered at home and abroad advanced - pin connection technology, spray technology, with the sealing property is reliable (No leaks ), corrosion resistance and high temperature resistant, non-toxic, harmless, operating torque features of small, safe and reliable running, was praised by users at home and abroad.
