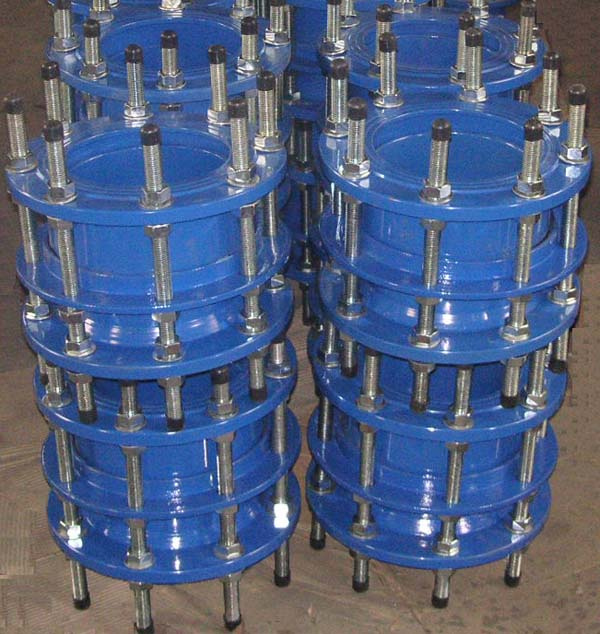

ISO2531/EN545 dismantling joint
Suitable for all flanged piping materials above ground or in chamber
Flanges and drillings to ISO7005-2 ( BS EN1092-2: 1997, DIN2501)
Use: For water, sewage and neutral liquids to max. 70° C
The dismantling joint enables easy installation and dismantling of isolating valves, non return valves, flow metering equipment, pumps etc.
It compensates for axial displacement of the pipe during installation/dismantling.
Features:
1) Body: Ductile Iron GGG500-7
2) Bolts, Nuts and Washers Material: Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request.
3) Tie Rods: Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request.
4) Gaskets material: For water or Gas: NBR Grade A.
For drinking water: EPDM rubber to BS2494: 1990 type W.
For drinking water and sewage: SBR Grade F.
5) Body Coating: Fusion Bonded Epoxy Coating inside and outside, or bitumen painting upon customers request
6) Sizes: DN50 - DN2000
7) Pressure Grade: PN10 / 16 / 25
8) Package: Bubble plastic bags, Cartons and Wooden cases
Our company, Qingdao Judibode trading CO. Ltd. Is a large and professional manufacturing company.
Our main products are as below:
1; Universal couplings, universal flange adaptor, Gibault joint for PVC pipe, Quick flange adaptor for PVC/PE pipe, Saddle for PVC pipe, Universal saddle with SS band., Flange adaptor and coupling for PE/PVC pipe, dismantling joint, repair clamp, expansion joint etc. All of them are according to EN545/ISO2531 and PN10/PN16/PN25/PN40.
2; All kinds of valves, include gate valve, check valve, angle valve, air valve etc.
For surface treatment, beside Epoxy Resin power coated, Nylon coated also available.
3; Cast steel, Sand casting, Precision casting, Dewaxing casting.
The main products: Tractor Accessories, Rotavator accessories,
Excavator parts.
4; Our market: Europe(like AVK-Denmark, PAM-France), USA(Star-America), Middle-east(Amiantit-K. S. A), Africa and South-America.
5; Our capacity: 400tons/month.
