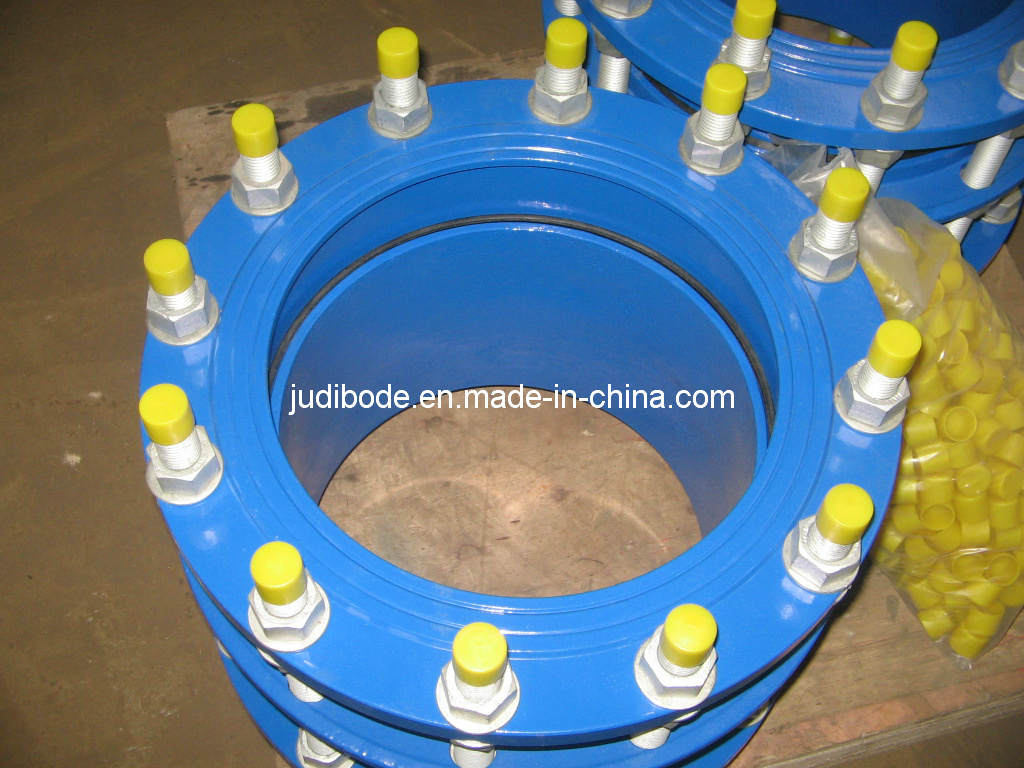

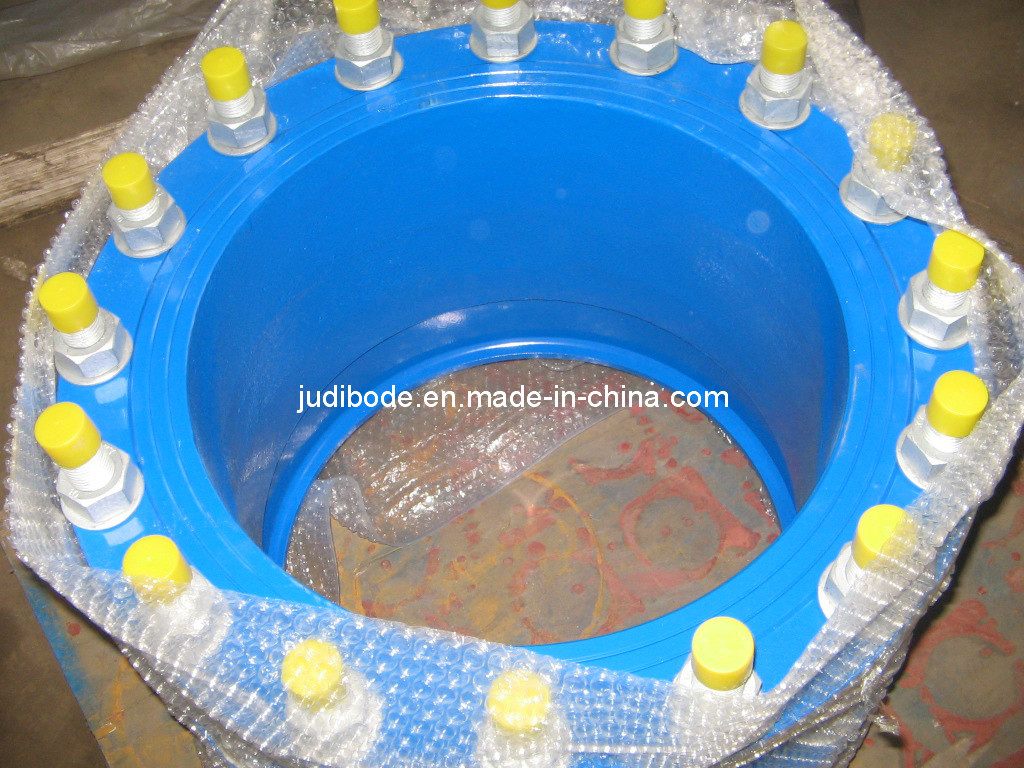

1; These types of pipe line Dismantling Joint are used for easy Dismantle of the equipments fitted in the Pipe Line. They are used before Butterfly Valve, Pumps, and other different valves etc.
2; As per pressure rating the thickness can be varied as per customer requirement
3; Manufactured in accordance with EN545. ISO2531. EN598, AWWA110(153)
4;
Valve Type Dismantling joint
DN DN65-DN3000
Working Pressure PN10, PN16, PN25, PN40
Flange Connection PN10, PN16, PN25, PN40
Please contact us for other sizes and pressures
|
NO |
PART NAME |
MATERIAL |
|
1 |
PIPE |
DUCTILE IRON |
|
2 |
BODY |
DUCTILE IRON |
|
3 |
RETAINER |
DUCTILE IRON |
|
4 |
RING |
EPDM |
|
5 |
STUD |
ELECTRO GALVANISED STEEL |
Our company, Qingdao Judibode trading CO. Ltd. Is a large and professional manufacturing company.
Our main products are as below:
1; Universal couplings, universal flange adaptor, Gibault joint for PVC pipe, Quick flange adaptor for PVC/PE pipe, Saddle for PVC pipe, Universal saddle with SS band., Flange adaptor and coupling for PE/PVC pipe, dismantling joint, repair clamp, expansion joint etc. All of them are according to EN545/ISO2531 and PN10/PN16/PN25/PN40.
2; All kinds of valves, include gate valve, check valve, angle valve, air valve etc.
For surface treatment, beside Epoxy Resin power coated, Nylon coated also available.
3; Cast steel, Sand casting, Precision casting, Dewaxing casting.
The main products: Tractor Accessories, Rotavator accessories,
Excavator parts.
4; Our market: Europe(like AVK-Denmark, PAM-France), USA(Star-America), Middle-east(Amiantit-K. S. A), Africa and South-America.
5; Our capacity: 400tons/month.
