Product introduction

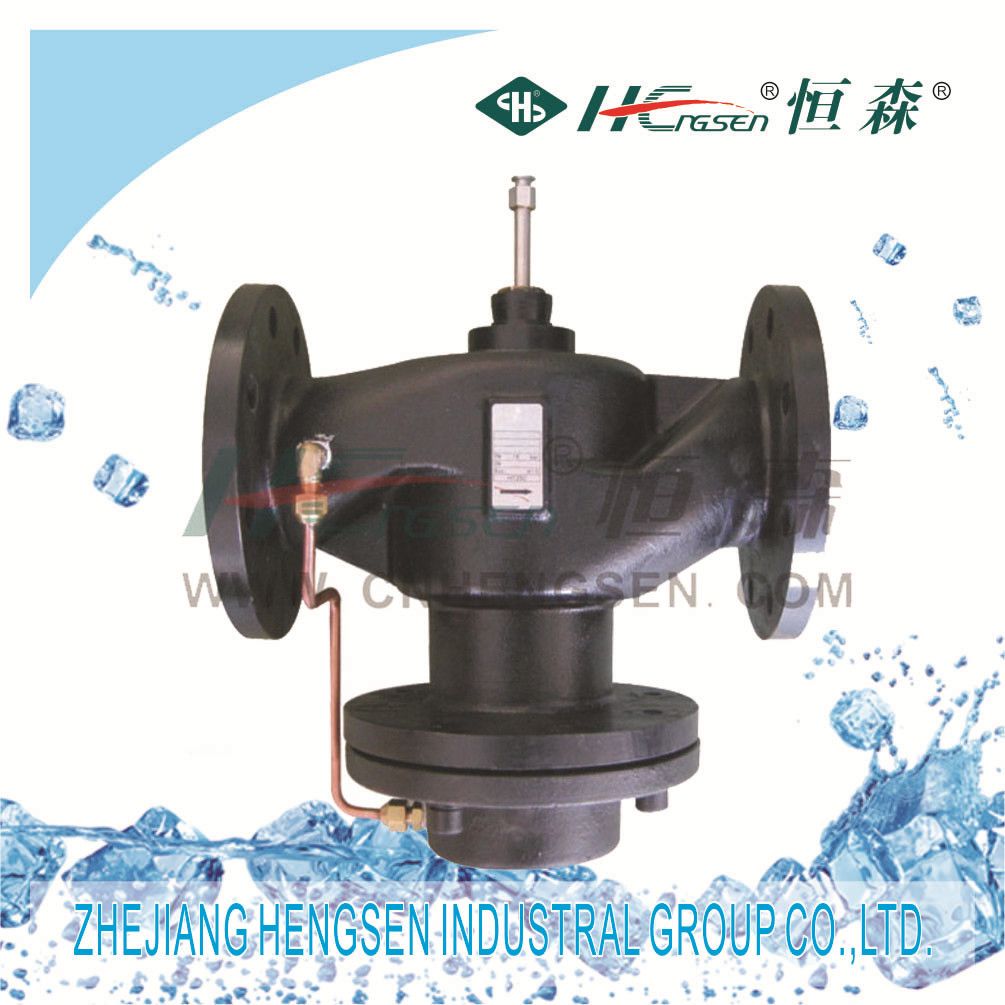

DF/F-08DP series of valves are combination of balancing valve and control valve. It is widely used to control temperature in heating system (such as Make-up Air Unit and Air Handling Unit). It control flow value and temperature in every circle. It is intellective management. Then save energy and reduce wastage.
Advantages
Stability: Flow value is not influenced by pressure undulation. Flow value is not influenced by each other.
Save energy: It can save more 6%-20% energy than traditional system.
High efficiency: Less testing time and effective system running.
Comfort: It is more comfortable with small temperature adjustment tolerance.
Features
Linear running journey
Valve flow characteristic: Liner or equal percentage.
Flow value tolerance: ≤ 5%
Ambient temperature: 0-150º C
Material and lifetime
Valve body: Cast iron
Inner parts: Brass, stainless steel
Spring: Stainless steel
Diaphragm: EPDM
Lifetime: More than 10 years
Type
| Caliber
(mm) | Model
| Pressure
difference
range MPa | Flux
Range
(m³/h) | Other data |
| DF/F-08DP-2032HC(XE) | DN32 | 2 WAY | 0.03-0.3 | 0.6-6.5 | Work pressure: PN16
Flux error: 5%
Flux temperature: 0-100 degree |
| DF/F-08DP-2040HC(XE) | DN40 | 0.03-0.3 | 1.1-10 |
| DF/F-08DP-2050HC(XE) | DN50 | 0.03-0.3 | 2-12.1 |
| DF/F-08DP-2065HC(XE) | DN65 | 0.03-0.3 | 3-20.4 |
| DF/F-08DP-2080HC(XE) | DN80 | 0.03-0.3 | 5-30.8 |
| DF/F-08DP-2100XF | DN100 | 0.03-0.3 | 10-45.3 |
| DF/F-08DP-2125XF | DN125 | 0.03-0.3 | 15-70.7 |
| DF/F-08DP-2150XF | DN150 | 0.03-0.3 | 20-101.8 |
| DF/F-08DP-2200XF | DN200 | 0.03-0.3 | 50-360 |
