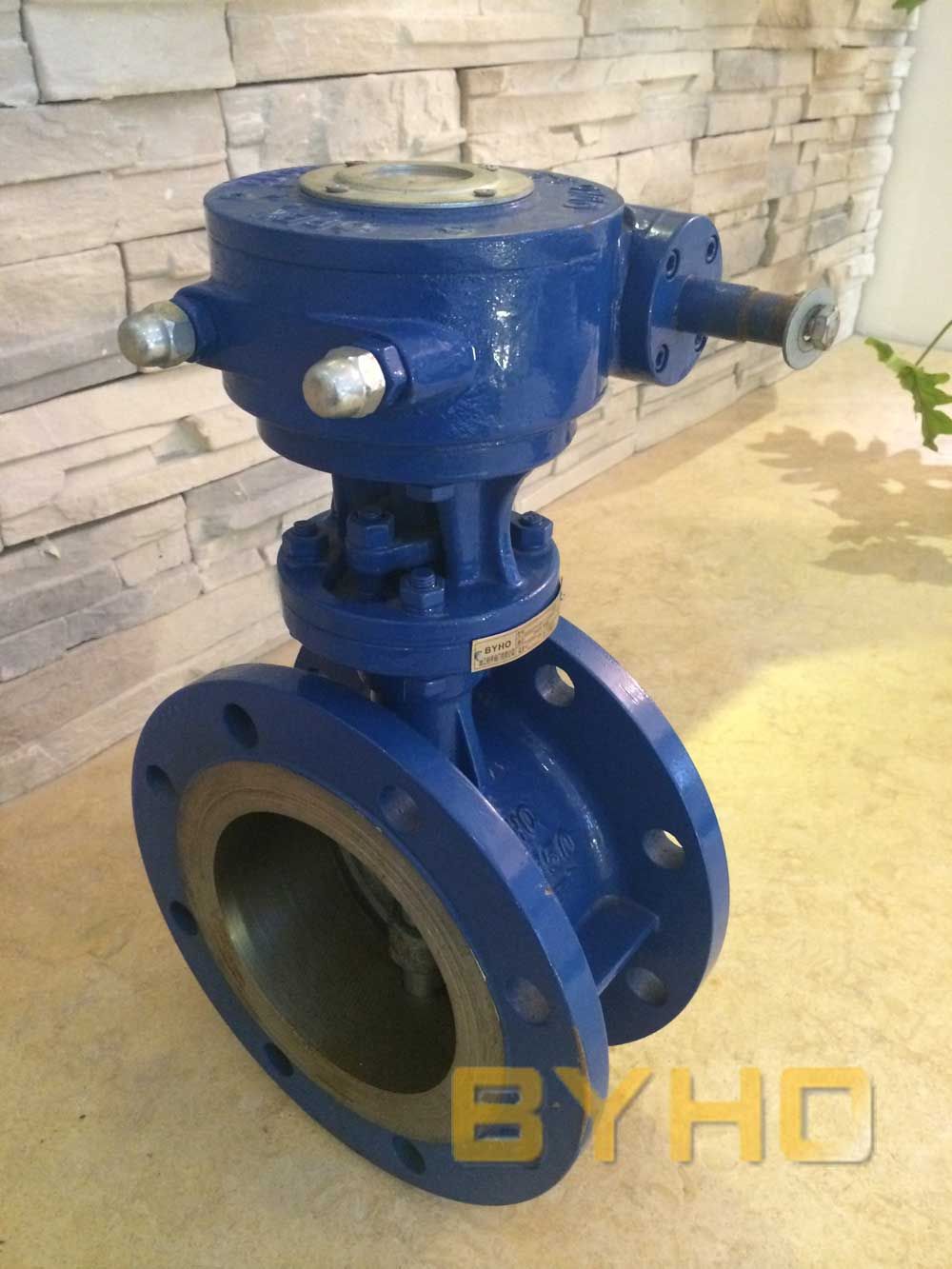

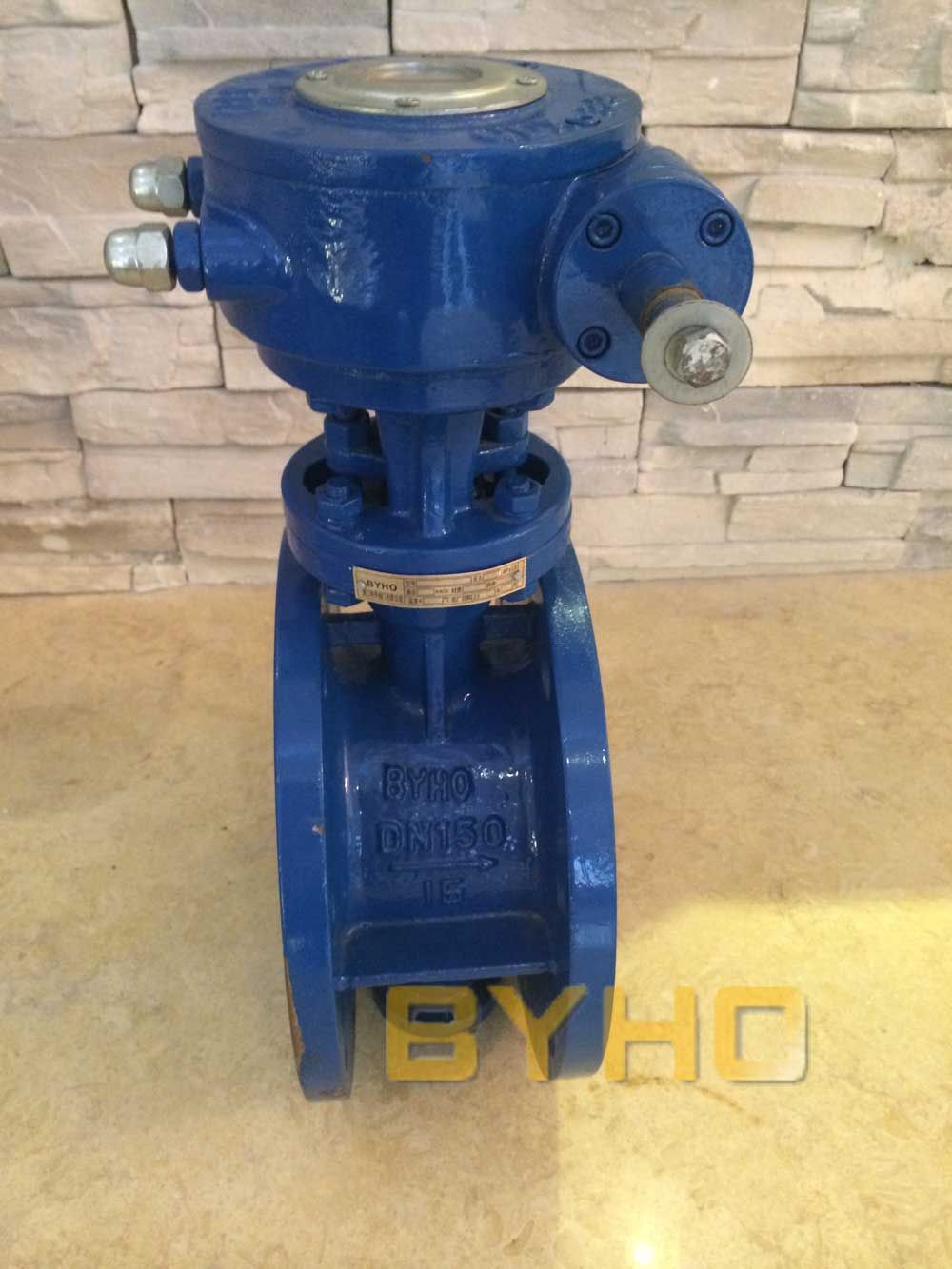

Size: NPS 2"~48"
Pressure Rating: Class 150 lb~Class 300 lb
Material: GG25, GGG40, GGG50, WCB, LCB, CF8, CF8M, CF3, CF3M
Design & Manufacturing Standard: API 609, MSS SP-67, BSEN 593
Structure Length Size: API 609, BSEN 558
Butt Welding Size: ASME B16.5, ASME B16.47, BSEN 1092
Pressure-Reference Temperature: ISO 5208, BSEN 12266
Drive Method: Manual, Gear Case, Electro-motion, Pneumatic, Linkage
| NO. | PART | MATERIAL |
| 1 | Packing | Graphite |
| 2 | Body | Carbon Steel, Stainless Steel |
| 3 | Disc | Carbon Steel, Stainless Steel |
| 4 | Bolts | Carbon Steel, Stainless Steel |
| 5 | Shaft | Carbon Steel, Stainless Steel |
| 6 | Seat | PTFE,Stainless Steel |

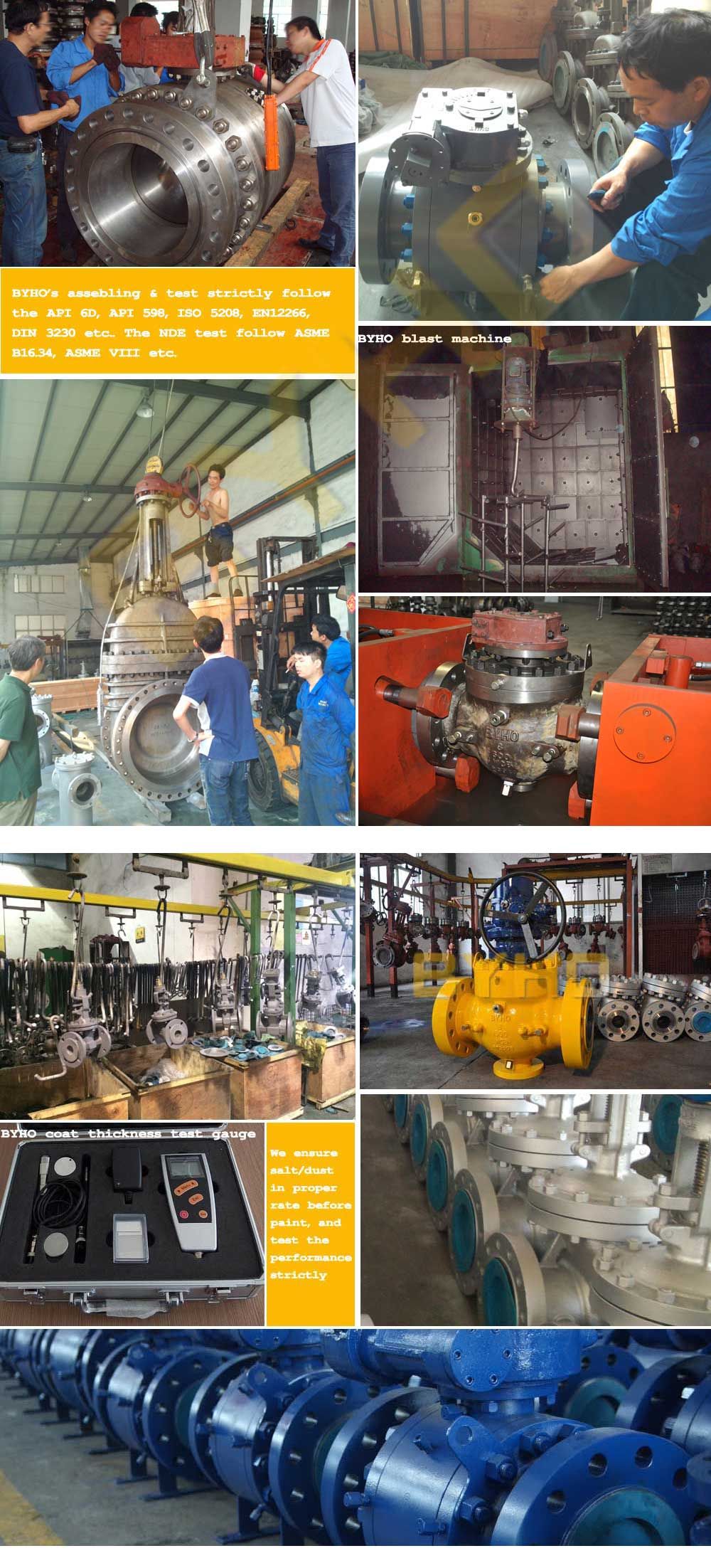

Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.
Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.
Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.
Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
