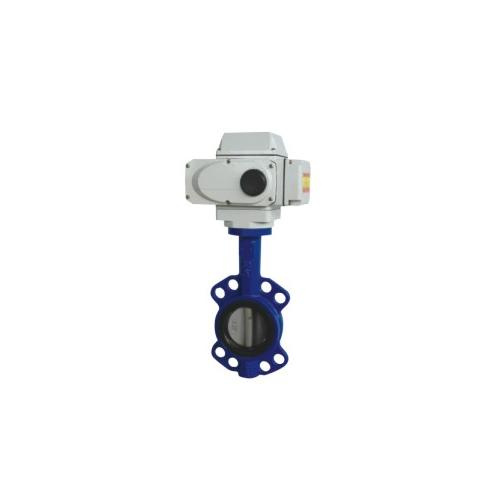

RV ZR(H) JD electric contrl buttery valve adopts an integral stucture, can be controlled to move as long as there are input control signal(4-20m ADC or 1-5V DC) and single-phase power source, has the advantages of strong function, small size, convenienve and pleasing, reliable performance, simple mating, and large flow capacity, and is suitable for occasions of stickr mediums comprising grains and fiber in particular.
It can be broadly applied into the industrial process automatic control systems of industries like food, environmental protection, light product chemistry, teaching instrument, paper-making, electric power, etc.
|
nominal diameter |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
flow coefficient(Kv) |
110 |
180 |
232 |
368 |
656 |
735 |
1240 |
2025 |
2712 |
3875 |
5038 |
|
rangge of motion |
0-90° |
|
allowable differential pressure Δ P |
less than the nominal pressure(1.6Mpa) |
|
leakage (Q) |
By GB/T4213-92, the KV Value of 10-4 |
|
ambient temperature º C |
-20~60º C |
|
intrinsic error |
± 2.5% |
|
hysteresis error |
± 2.5% |
|
dead band |
1% |
|
adjustable range |
250: 1 350: 1 |
As one of the four subsidaries of Shanghai River-wave International Group Co., Ltd, Shanghai River-wave Fluid Machine Manufacturing Co., Ltd. Was accredited with Shanghai Hi-tech Enterprise in 2010. The application of the first-class fine machining center, CNC machine tools as well as control valve flow characteristics testing and monitoring center makes it highly effective for us to provide users with flow curves, flow characteristic curves of the control valve and other curves related to pressure, flow and temperature by means of microprocessor control.
Currently, Shanghai River-wave put its major focus on manufacturing control valves, regulating valves, PSA pneumatic sequencing valves, electric control valves, ball valves, butterfly valves, globe valves and products of other series. We have been proving valves for Germany BASF, Bayer, Shanghai Waigaoqiao Shipbuilding Co., Ltd, Yangzi Petrochemical Co., Ltd. Jiangnan Shipbuilding Works, etc...The company has been granted more than 30 patents. From 2007 to 2011, Shanghai River-wave has been assredited with Contract Honoring and Credit Keeping Enterprise for consecutively four years. Meanwhile, River-wave has obtained the TS National Manufacturing License for Special Equipment and CE Certificate, CCS Certificate for ships, etc.
Core Value of Shanghai River-wave: Satisfied customers, happy employees, assured Stockholder, stainable development.
