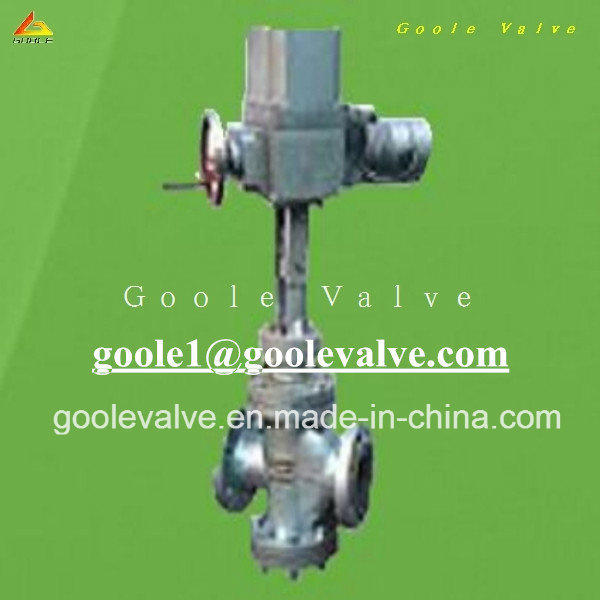

Electric Double-Seated Steam Pressure Reducing Valve (GAY945h)
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
Structural Characteristic&Purpose.This series reducing valve mainly composed of valve body, valve seat and valve flap. It adopts the structure of double valve seat and double cone valve flap. It adopts pressure balancing valve flap. Realize remote control and auto control through valve flap elevation to adjust the pressure, ZKZ-BC or other type straight travel electric activator can be equipped. The decompression ratio of this series product is best to be 0.6. The product is mainly applied on steam piping, to reduce and regulate the pressure. It is widely used in combined heat and power generation, spinning, printing and dyeing, petro-chemistry and sugar-making industries. Main Technical Parameters&Indexes Of Performance. | Nominal pressure | PN1.6Mpa | PN2.5Mpa | PN4.0Mpa | PN6.4Mpa | PN10.0Mpa | PN16.0Mpa |
| Tested pressure of shell | 2.4Mpa | 3.75Mpa | 6.0Mpa | 9.6Mpa | 15.0Mpa | 24.0Mpa |
| Sealing test pressure | 1.6Mpa | 2.5Mpa | 4.0Mpa | 6.4Mpa | 10.0Mpa | 16.0Mpa |
| Maximum upstream pressure | 1.6Mpa | 2.5Mpa | 4.0Mpa | 6.4Mpa | 10.0Mpa | 16.0Mpa |
| Pressure range of outlet | Best decompression ratio 0.6 |
| Medium | Steam |
| Temperature-pressure class | ANSI B16.34 |
*the shell test does not include membrane and top cover.Electric Pressure Reducing Valve material of main component. | Name of component | Material of component |
| Valve body, valve cover, seat cover | WCB |
| Valve seat | 304 |
| Valve flap | 2Cr13 |
| Valve rod | 2Cr13 |
| Gasket | flexible graphite/ 1Cr19Ni9Ti |
| Guide sleeve | 2Cr13 |
| Filling stuff | flexible graphite |
| Bolt | 35CrMoA |
| Nut | 45 |
Connecting Dimensions.

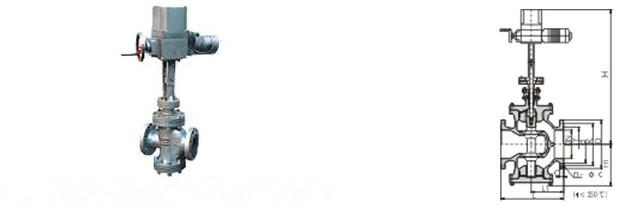

| DN | external dimension |
| L | L1 | H | H1 |
| 50 | 300 | 150 | 880 | 190 |
| 65 | 340 | 170 | 890 | 205 |
| 80 | 380 | 190 | 910 | 215 |
| 100 | 400 | 215 | 950 | 240 |
| 125 | 430 | 225 | 990 | 275 |
| 150 | 450 | 230 | 1090 | 320 |
| 200 | 500 | 260 | 1160 | 340 |
| 250 | 550 | 285 | 1230 | 370 |
| 300 | 750 | 395 | 1370 | 460 |
| 350 | 850 | 445 | 1450 | 530 |
| 400 | 950 | 550 | 1570 | 660 |
| 500 | 1130 | 680 | 1780 | 800 |
|
| DN | external dimension |
| L | L1 | H | H1 |
| 50 | 300 | 150 | 880 | 200 |
| 65 | 340 | 170 | 890 | 215 |
| 80 | 380 | 190 | 910 | 225 |
| 100 | 400 | 215 | 950 | 250 |
| 125 | 430 | 225 | 990 | 285 |
| 150 | 450 | 230 | 1090 | 330 |
| 200 | 500 | 260 | 1160 | 355 |
| 250 | 550 | 285 | 1230 | 390 |
| 300 | 750 | 395 | 1370 | 480 |
| 350 | 850 | 445 | 1450 | 550 |
| 400 | 950 | 550 | 1570 | 700 |
| 500 | 1130 | 680 | 1780 | 820 |
Option Of Electric Activator&Performance Index. | DN(mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 500 |
| executing organ model | ZKZ-310BC | ZKZ-410BC/ ZKZ-510BC | ZKZ-510BC | ZKZ-610BC/B+Z250/F1800 |
| Travel(mm) | 25 | 30 | 50/30 | 50 | 60 | 100 |
| thrust force(N) | 4000 | 6400/16000 | 16000 | 25000 |
| Whole travel time(S) | 20 | 32 | 37 | 62 |
| Input signal | 4-20Ma DC |
| Power supply | 220V 50HZ |
| 380V 50HZ |
| Basic error(%) | 2.5 |
| Basic error(%) | 1.5 |
| Basic error(%) | 3 |
| Prod Model: |
GAY945H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Gay945h |
| Size: |
1"-20" |
| Category: |
Pressure Reducing Valve |
| Connecting Type: |
Flange |
| Material: |
C.S |
| Medium: |
Steam.,etc |
| Working Temperature: |
Below 425 Deg C |
| Usage: |
Pressure Reducing |
| Application: |
Steam Pipelines |
