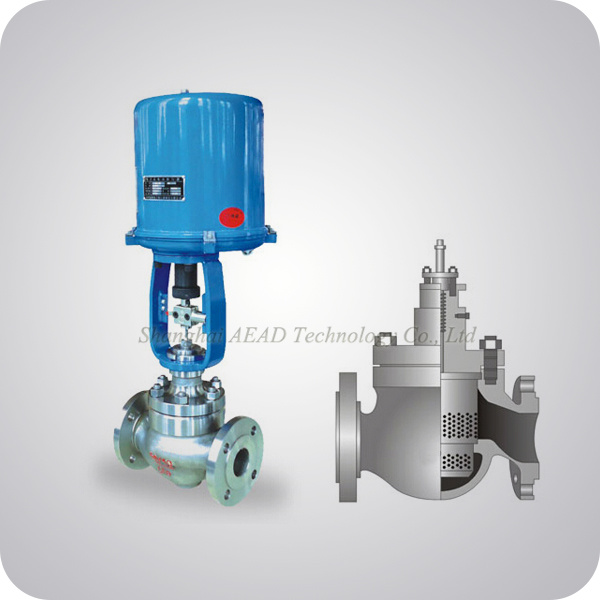

Electric Low Noise Control Valve
Overview
AEAD Electric low noise control valve is a top entry globe type control valve, which is
manufactured under ISO 9001 quality assurance system. The valve is mainly designed
to reduce the noise with compressible value. There are many small balanced holes of gas
throttle. The body channel is streamlined by S shape with guiding vane which is used to
improve the stable flowing of liquid around cage, high capacity. The plug features with
guiding area and good vibration resistance. The control valve is equipped with electric
actuator and compact in structure as well as big in output force. This valve is designed
to control a broad variety of fluids, like steam, water, most of the medium and gases.
Features
1. Electric actuator for wide application
2. Balanced trims are suitable for high pressure drop and shutoff
3. Hardened trims to handle high pressure drop applications
4. Low nose caged guided design to reduce the noise
5. Reduced trim can be chosen to provide wide capabilities for site applications
6. Extended bonnet for low temperature
7. Finned bonnet for high temperature
8. Higher maximum valve flow coefficients
9. Bigger body volume to reduce cavitations
Technical Specifications
1. Body type: Low noise cage, globe control valve type
2. Size: DN15~DN250 (3/4" to 10")
3. Pressure Class: PN16,PN40,PN64. ANSI 150,ANSI300,ANSI600
4. Characteristics: Equal Percentage, Linear, quick open
5. Body Materials: ZG230~450, ZG1Cr18Ni9, WCB, LCB, CF8M, CF3M
6. Trim materials: 304, 316, 304L, 316L
7. Temp range: -196°C to +566°C
8. Connection: Flanged, Socket welding, Butt welding
9. Gland packing: PTFE, Braided PTFE, Grafoil
10. Leakage: Class IV (Metal seat, standard), Class V, Class VI (Soft seat, zero leakage)
11. Actuator: Electric actuator
Shanghai AEAD Technology Co., Ltd is a cooperation of Chinese and German technique which mainly performs in R&D, production and sales.
AEAD Technology was first founded in 2009 in Jiangsu, and established Shanghai Branch in May 18th, 2014. The new Shanghai factory would complete in DEC 2014, located in the Free Trade Zone. Before the business started in 2009, the General Manager Mr. R. H. Liu and Technical Director Mr. S. P. Zong had dedicated in instrumentation for more than 20 years. After 5 years development and achieving good reputation in domestic market, we become a leading manufacture in East China. Now we believe we are ready to overseas users.
The company adopts advanced production line from Germany, and the main products include A+E series products for exporting and A+D products for domestic sales in pressure, temperature, flow, level, calibration and valve which can cater for the needs from domestic and foreign markets. Products are organized and sold under fully dedicated divisions, each staffed with an experienced and highly trained team of dedicated technical sales, applications engineering and customer service support personnel. Products are applied to water treatment, petrochemical, chemicals, machinery, pharmacy, food, mine, metallurgy, etc.
AEAD Technology adheres to the development strategy of Internationalization, Technicalization, Industrialization, which can realize the high-end extension of the products from domestic market to international market. The value chain turns from providing single product to system solution, and the operation expands from linear-oriented to a comprehensive modern enterprise operation including merger and capital operation.
The company has already passed the ISO9001 Quality Management System Certification, ISO14001 Environmental System Certification, and Occupation Health Safety Management System Certification (OHSAS18000).
