Product Introduction

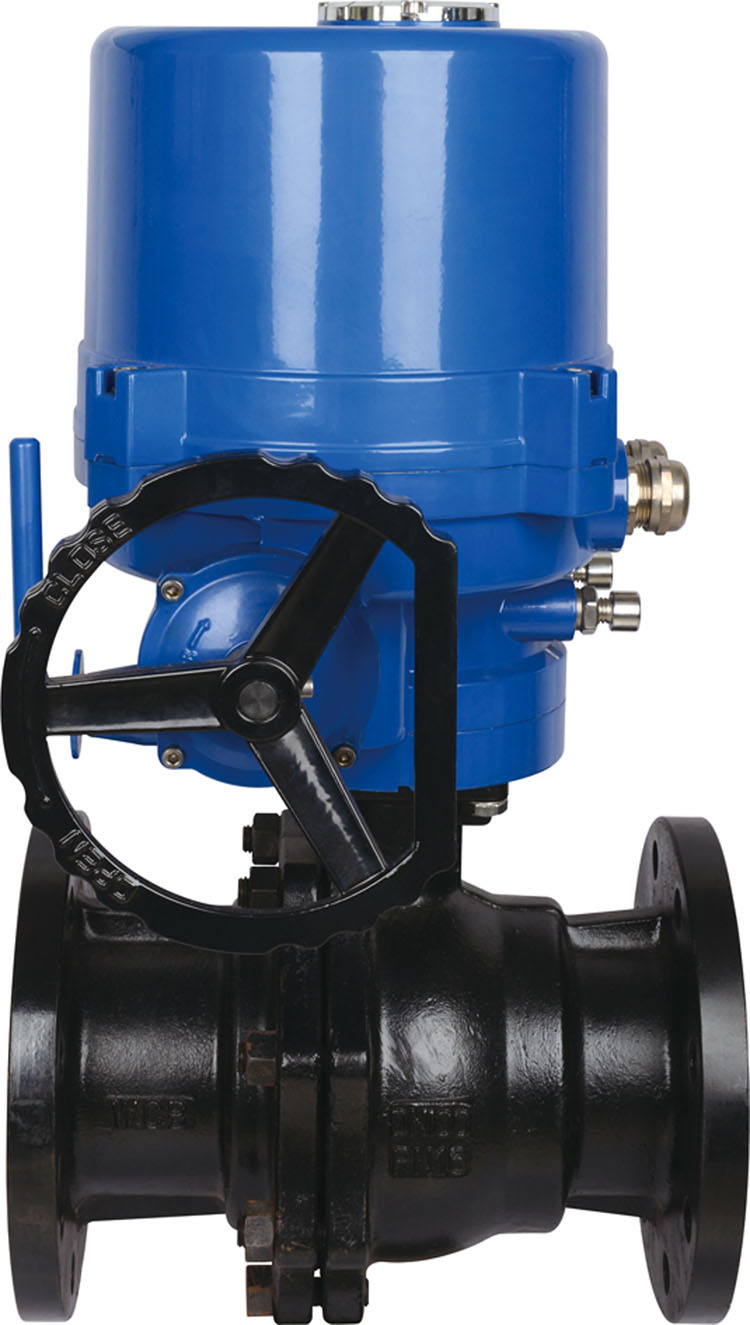

Electric Ball Valve is a rotary ball valve by turning 90° , with the characteristics of fine sealing performance
, large flow capability, small flow resistant coeffience, simple structure and long service life. The valve passage is equle to the connecting pipe, and the meidum can nearly flow through it without the loss.
By connected with electric actuator, the valve is widely applicable for the working fields such as petroluem, chemical industry, metallurgy, paper making, power station etc. It can control not only the medium like the air, liquid and steam, but also the meidum containing the fibers.
ProductCharacteristics
1. Small flow resistance. The ball valve has smaller flow resistance among all valves. The flow resistance is very small, even if the valve is reduced bore.
2. Thrust shaft bearing can reduce the fricative torque of valve shaft in order to make the shaft operation balance.
3. The seat has a good sealing performance with adopting PTFE as te seal ring. And the sealing performance can be better with the increase of pressure.
4. The stem can only work by rotary motion, and the packing is not easy to destroy. So the stem has a reliable sealing performance.
5. PTFE has the features of self-lubriaction and reduces the fricative loss with the ball to make the service life long.
6. The lower-loading Stem with backward sealing construction not only prevents the handle form backing-out but also ensure the reliability of the scaling part of the handle.
| Nominal Diameter DN(mm) | DN15-DN300 |
| Nominal Pressure | PN1.0/1.6/2.5/4.0/6.4MPa |
| Suitable Medium | Water,Petroleum,Nitric Acids,Acetic Acids,Slurries,Viscosity fluid and so on |
| Suitable Temperature | -40ºC--+180ºC(PTFE/PPL Sealing)
-40ºC--+350ºC(Metal Sealing) |
| Leak rate | Fit for the standard of ANSI B16.104 |
| Rotary Angle | 90° |
| Body Metarial | WCB,304(CF8),316(CF8M) |
| Seat Materials | PTFE(Normal Temp),Special PPL(High Temp),
Metal Sealing(High Temp) |
Wenzhou Heli Automatic Meter Co., Ltd. (HL) is a High-tech enterprises specialized in manufacturing electric actuator, pneumatic actuator, rotary air damper actuator, integrating scientific research, production, distribution and service.
Founded in 1999, covers an areas of 13118 square meters. HELI company consistently pays attention to product quality and all of HELI products have passed the CE certification, the test of Shanghai industrial Automatic Instrument Institute with every performance and index qualified, etc.
HELI will bring you much more convenience. By consistently keeping the management conception of taking market as guide, serving by quality and credit, and developing by technology and innovation. Our company guarantees to realize the goal of double-win with user's benefits as precondition. In the future, HELI people will actively take the challenge with excellent quality, scientific management and perfect service.
Sincerely welcome friends all over the world to come here for negotiation and cooperation.
