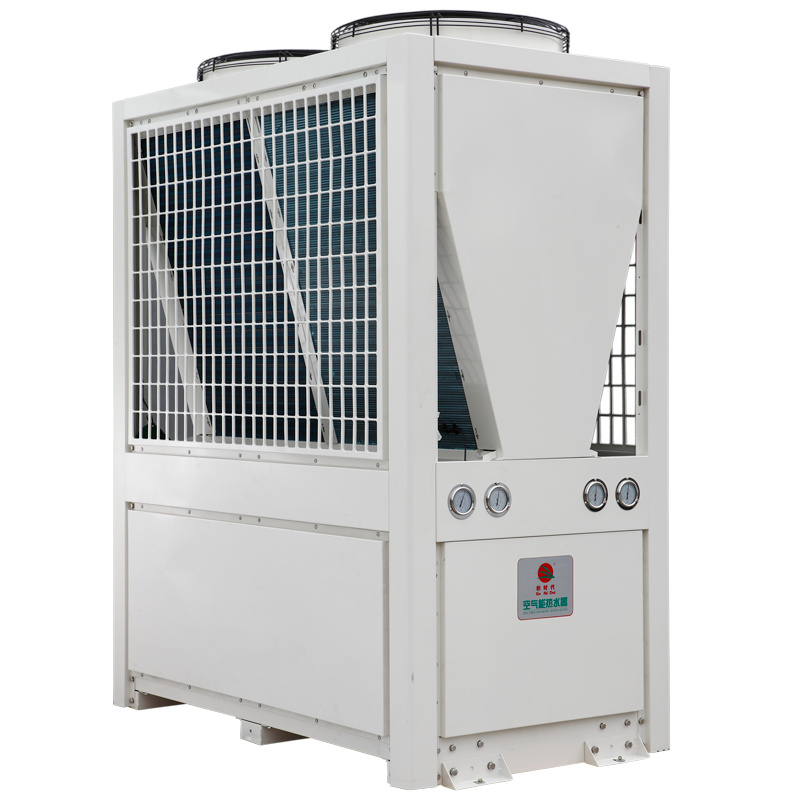

Energy saving heating and cooling equipment
Features
Eco-friendly, save energy & cost
Base frame and external panels made of galvanized powder coated steel
Reliable compressor
Flow switch for water flow protection
All weather operation
Automatic defrosting & desludging function included
Easy installation & low maintainance cost
Anti-corrosion & durable
Good demountability and compact structure
Supply OEM, ODM service
|
Model |
|
XSD10-DL |
XSD20-DL II |
XSD35-DL II |
XSD45-DL II |
XSD55-DL II |
XSD70-DL II |
XSD90-DL II |
|
HP |
|
3 |
5 |
10 |
12 |
16 |
20 |
25 |
|
Heating capacity |
kW |
8.60 |
15.00 |
30.00 |
35.40 |
45.70 |
56.70 |
74.00 |
|
BTU/h |
29343 |
51180 |
102360 |
120785 |
155928 |
193460 |
252488 |
|
COP |
|
3.82 |
4.05 |
4.11 |
4.00 |
4.21 |
3.97 |
4.20 |
|
Cooling capacity |
kW |
6.45 |
11.25 |
25.30 |
26.60 |
34.30 |
42.50 |
55.60 |
|
BTU/h |
22007 |
38385 |
86324 |
90759 |
117032 |
145010 |
189707 |
|
EER |
|
2.39 |
2.68 |
2.95 |
2.66 |
2.64 |
2.56 |
2.81 |
|
Power supply |
V/PH/Hz |
220V~/50Hz |
380V/3N~/50Hz |
|
Heating input power |
kw |
2.25 |
3.70 |
7.30 |
8.84 |
10.85 |
14.30 |
17.60 |
|
Heating input current |
A |
10.77 |
5.92 |
11.68 |
14.14 |
17.35 |
22.87 |
28.15 |
|
Cooling input power |
kw |
2.70 |
4.20 |
8.58 |
10.00 |
13.00 |
16.60 |
19.76 |
|
Cooling input current |
A |
12.92 |
6.72 |
13.72 |
15.99 |
20.79 |
26.55 |
31.60 |
|
Compressor type |
|
Scroll |
|
Number of Compressors |
|
1 |
1 |
2 |
2 |
2 |
2 |
2 |
|
Heat exchanger type(water side) |
|
Stainless steel brazing plate heat exchanger |
|
Throttling device |
|
Emerson thermal expansion valve |
|
Fan type |
|
Low noise high efficiency axial type |
|
Fan discharging |
|
Vertical |
|
Fan quantity |
|
1 |
1 |
2 |
2 |
2 |
2 |
2 |
|
Fan input |
W |
70 |
250 |
250 |
250 |
550 |
750 |
750 |
|
Fan speed |
RPM |
850 |
880 |
880 |
880 |
910 |
940 |
940 |
|
Ambient temperature |
degree Celsius |
(-10~43 degree Celsius) |
|
Refrigerant |
|
R22/R407C |
|
Noise in 1 meter distance |
dB |
59 |
62 |
63 |
63 |
66 |
68 |
68 |
|
Water pipe size |
inch |
R1 |
R1 |
R1-1/2 |
R1-1/2 |
Rc2 |
Rc2-1/2 |
Rc2-1/2 |
|
Cabinet |
|
Stainless Steel/Steel with powder coated |
Steel with powder coated |
|
Low pressure protection system |
|
Yes |
|
High pressure protection system |
|
Yes |
|
Water flow switch |
|
Yes |
|
Automatical defrost system |
|
Yes |
|
Dimension |
mm |
710/710/795 |
810/810/995 |
1450/705/1375 |
1450/705/1375 |
1445/850/1850 |
1990/980/2045 |
1990/980/2045 |
|
Package dimension |
mm |
810/810/980 |
920/920/1080 |
1580/840/1450 |
1580/840/1450 |
1580/860/2000 |
2090/1190/2145 |
2090/1190/2145 |
|
Net wieght |
kg |
112 |
137 |
311 |
324 |
406 |
584 |
626 |
|
Gross weight |
kg |
128 |
160 |
351 |
364 |
466 |
654 |
696 |
|
Testing condition: |
|
|
|
|
|
|
|
|
|
Heating condition: outside temp.(DB/WB) = 7/6 degree Celsius, water temp.(inlet/outlet) = 30 /35 degree Celsius. |
|
Cooling condition: outside temp.(DB/WB) = 35/24 degree Celsius, water temp.(inlet/outlet) = 12/7 degree Celsius. |

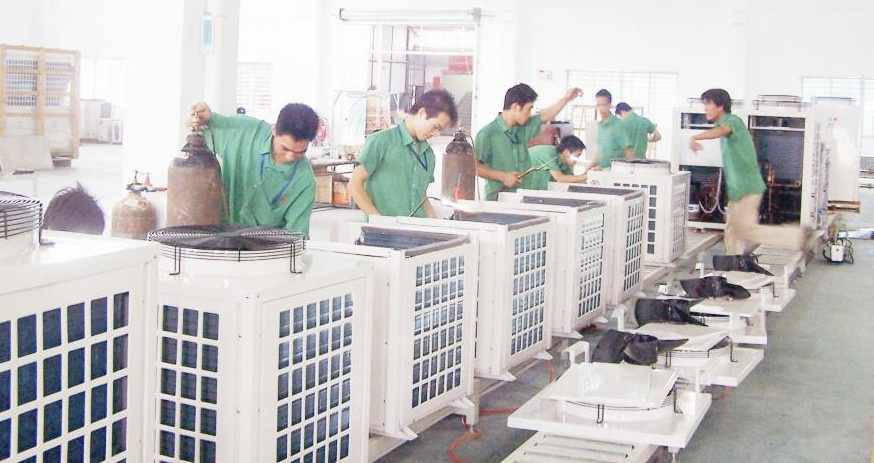

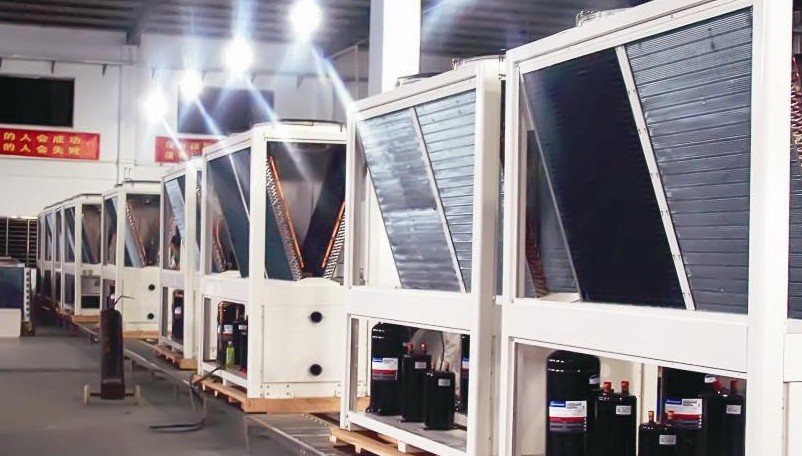

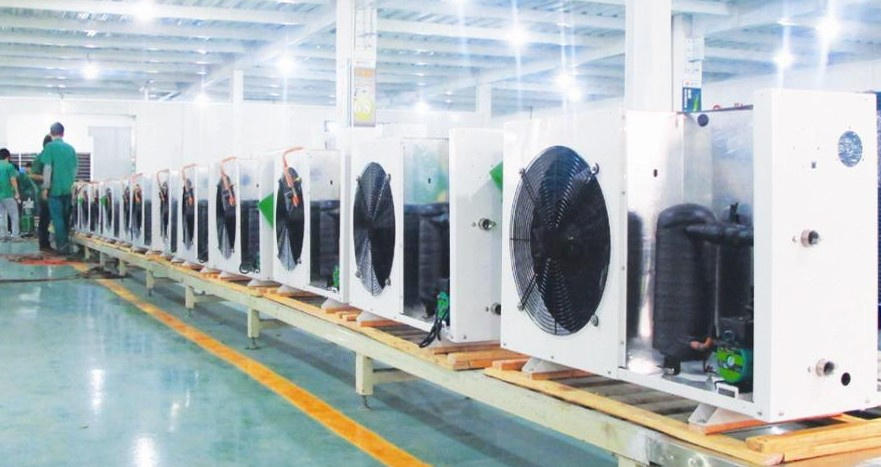

Established in 1994, Dongguan New Times New Energy Science & Technology Co., Ltd. is one of the famous enterprises specializing in manufacturing air source heat pump water heater in Guangdong Province, China. With more than 20, 000 square meters manufacturing factory and 15 years of technology experiences of R&D, we have owned independent intellectual property right and more than 30 patented technologies.
Our main product lines, with annual output of 30, 000 sets, include household and commercial air to water heat pump, integration of heating and cooling module unit, swimming pool air source heat pump, and high-temperature air source heat pump(up to 80ºC) as well. They can provide hot water from 45ºC to 80ºC, and also for heating in winter, cooling in summer. Our products have heating and cooling capacities ranging from 9, 000 to 1000, 000BTU.
The annual output value reaches over RMB200 million. All of our products are of high quality, good appearance, durable, and well performance in low temperature environment. We used advanced production equipment and testing machines, such as America Copland Compressor, Japan Panasonic Compressor, America high efficiency shell and tube heat exchanger, Freon inspectors, and electrical safety testing equipment. What's more, we are certified by 3C, CE, ISO9001: 2000 (UKAS) and ISO14001.
Our main markets include Europe, America, the Middle East, Southeast Asia, South Africa and Australia. With a highly effective management team, modern facilities, and excellent pricing, we endeavor to offer high quality products and the latest technology for incredible success and growth. We look forward to expanding our customer base and invite you to contact us for more products and company information.
