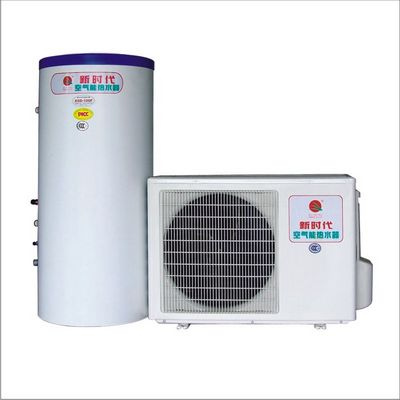

Home air source water heater heat pump
Features
Eco-friendly, save energy & cost
Base frame and external panels made of galvanized powder coated steel
Intelligent digital controller
Japanese Panasonic Compressor
Stable water flow
Automatic adjustment for water pressure &pressure unloading protection
All weather running
Automatic defrosting & desludging function
Water-electricity separation
Easy to install & maintain
|
Model |
|
KF80-A/100F |
KF80-A/150F |
KF120-A/100F |
KF120-A/200F |
KF120-A/320F |
|
Power supply |
V/Ph/Hz |
208~230V/1PH/50Hz |
|
Heating capacity |
kW |
3.71 |
3.71 |
4.95 |
4.94 |
4.93 |
|
Btu/h |
12658.52 |
12658.52 |
16889.4 |
16855.28 |
16821.16 |
|
Rated power input |
kW |
0.9 |
0.9 |
1.25 |
1.25 |
1.25 |
|
COP |
|
4.12 |
4.12 |
3.96 |
3.95 |
3.94 |
|
Water feed speed |
L/h |
80~100 |
80~100 |
120~150 |
120~150 |
120~150 |
|
Rated outlet water temp. |
Degree Celsius |
55 |
|
Max outlet water temp. |
Degree Celsius |
60 |
|
Ambient temperature |
Degree Celsius |
(-7~+43) |
|
Compressor |
|
Rotary×1 |
|
Fan discharging |
|
Horizontal |
|
Refrigerant |
|
R22/R407c/R410a |
|
Level against electric shock |
|
I |
I |
I |
I |
I |
|
Water proof grade |
|
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
|
Pressured water tank capacity |
L |
100 |
150 |
100 |
200 |
320 |
|
Water tank dimension |
mm |
470/1121 |
470/1592 |
470/1121 |
555/1333 |
555/1839 |
|
Tank shipping dimension |
|
560/540/1100 |
560/540/1600 |
560/540/1100 |
650/630/1420 |
794/774/1235 |
|
Heat pump dimension |
mm |
850/260/540 |
|
Heat pump shipping dimension |
mm |
930/360/610 |
|
Test condition |
Heating: Ambient temp. (DB/WB): 20 /15 Degree Celsius, water temp.(inlet/outlet): 15/55 Degree Celsius. |
|
The design and specifications are subject to change without prior notice. |
Established in 1994, Dongguan New Times New Energy Science & Technology Co., Ltd. is one of the famous enterprises specializing in manufacturing air source heat pump water heater in Guangdong Province, China. With more than 20, 000 square meters manufacturing factory and 15 years of technology experiences of R&D, we have owned independent intellectual property right and more than 30 patented technologies.
Our main product lines, with annual output of 30, 000 sets, include household and commercial air to water heat pump, integration of heating and cooling module unit, swimming pool air source heat pump, and high-temperature air source heat pump(up to 80ºC) as well. They can provide hot water from 45ºC to 80ºC, and also for heating in winter, cooling in summer. Our products have heating and cooling capacities ranging from 9, 000 to 1000, 000BTU.
The annual output value reaches over RMB200 million. All of our products are of high quality, good appearance, durable, and well performance in low temperature environment. We used advanced production equipment and testing machines, such as America Copland Compressor, Japan Panasonic Compressor, America high efficiency shell and tube heat exchanger, Freon inspectors, and electrical safety testing equipment. What's more, we are certified by 3C, CE, ISO9001: 2000 (UKAS) and ISO14001.
Our main markets include Europe, America, the Middle East, Southeast Asia, South Africa and Australia. With a highly effective management team, modern facilities, and excellent pricing, we endeavor to offer high quality products and the latest technology for incredible success and growth. We look forward to expanding our customer base and invite you to contact us for more products and company information.
