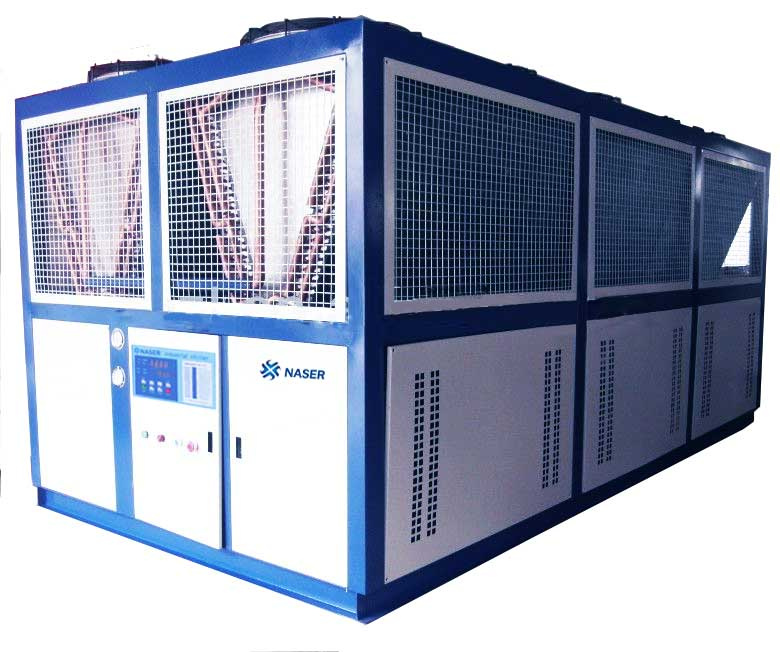

Evaporative Industrial Chiller with Electronic Expansion Valve
| Price: |
US $ 25500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
Low-temp Industrial Water Cooled Chiller Unit:
1. Water chiller, industrial chiller, air cooled
2. Cooling capacity: 8.42kw ~ 142.276kw
3. Copeland compressor
4. Refrigerant gas R22, R134a, R404a, etc
5. Suitable chilled water temperature: 5-45° C( air cooled chiller), no ambient temp demand( water-cooled chiller)
6. Power supply: 3PH-380V-50HZ or according to your country industrial claim
7. Strict test and inspection will be made before the chillers are delivered.
All water chiller types
1) Air-cooled/Water-cooled Scroll Chillers (Outlet water temperature: -40~35 degree C)
2) Air-cooled/Water-cooled SCrew Chillers (Outlet water temperature: -40~35 degree C)
3) Air-cooled/Water-cooled Scoll Chillers (Outlet water temperature: -5 degree C)
4) Water-cooled Screw Chillers (Outlet water temperature: -50 ~ -15 degree C)
FRQ:
1. Payment Terms:
T/T - 30% deposit before production, 70% balance before delivery, or other terms
2. Delivery Detail:
About 10 workdays after payments.
3. Pacage Terms:
International Standard Wooden Case for Export
Pls kindly offer the following information:
1. Cooling capacity
2. Inlet /outlet water temperature
3. Chiller water flow rate
4. Retrigreant
5. Voltage/Frquency
|
Type |
Screw air chiller |
|
Model |
NWS-
80ASCD |
NWS-
100ASCD |
NWS-
120ASCD |
NWS-
140ASCD |
NWS-
160ASCD |
NWS-
200ASCD |
NWS-
220ASCD |
NWS-
240ASCD |
NWS-
280ASCD |
NWS-
320ASCD |
Nominal
output |
50HZ |
Btu/h |
77026 |
987329 |
1083604 |
1256352 |
1452988 |
1786205 |
1987631 |
2151503 |
2562548 |
2863663 |
|
KW |
227.6 |
289.2 |
317.4 |
368.0 |
425.6 |
523.2 |
582.2 |
630.2 |
750.6 |
838.8 |
|
Kcal/h |
195736 |
248712 |
272964 |
316480 |
366016 |
449952 |
500692 |
541972 |
645516 |
721368 |
|
USRT |
64.7 |
82.2 |
90.2 |
104.6 |
121.0 |
148.8 |
165.5 |
179.2 |
213.4 |
238.5 |
|
Power input |
380V/3P/50HZ |
Compression |
Compressor power |
KW |
57.4 |
71.4 |
75.2 |
87.4 |
100 |
120.6 |
134 |
145.2 |
170.8 |
189.2 |
Quantity |
|
40HP*2 |
50HP*2 |
60HP*2 |
70HP*2 |
80HP*2 |
100HP*2 |
110HP*2 |
120HP*2 |
140HP*2 |
160HP*2 |
|
Flow regulator |
|
Termoexpension valve |
|
Retrigreant |
|
R22 |
|
Condenser |
Style |
Hihg Effective Red Copper Pipes Covered Into Aluminum Fins |
|
Evaporator |
style |
Hub pipe type |
Standard freezing water flow |
m ³./h |
32.91 |
41.82 |
47.39 |
54.96 |
63.52 |
78.10 |
86.91 |
94.06 |
112.05 |
125.19 |
Diameter of standard nipple |
DN |
80 |
80 |
80 |
80 |
80 |
100 |
100 |
100 |
100 |
100 |
Machine weight |
Kg |
925 |
1080 |
1200 |
1500 |
1680 |
2000 |
2150 |
2360 |
2800 |
3000 |
| Prod Model: |
NWS-80ASCD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Output: |
262kw |
| Compressor Power: |
60kw |
| Compressor Quantity: |
40HP*2 |
| Standard Freezing Water Flow: |
45.05m3/H |
| Machine Weight: |
925kg |
| Diameter Of Standard Nipple: |
100dn |
| Usage: |
for Manufacture |
| Cooling Method: |
Direct Cooling |
| Certification: |
SGS |
| Condition: |
New |
| Type: |
Air-Cooled |
