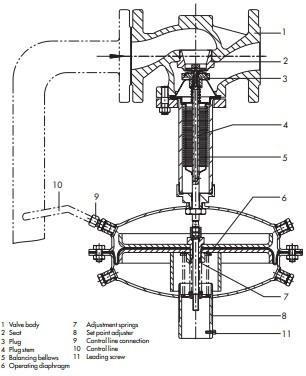

Design and principle of operationThe Type 2398 Excess Pressure Valve consistsOf a closing valve and an attached di-aphragm actuator. The excess pressure valveIs typically used to control inert gases and toConstantly maintain the upstream pressure ATA set point value within the range of 5 to 50Mbar. When the upstream pressure increases theValve opens, whereas a decreasing upstreamPressure causes the valve to close. The process medium flows through the valveBetween the seat (2) and plug (3) in the di-rection indicated by the arrow. The position of the valve plug determines theFlow, and hence the pressure ratio at the val-ve. The balancing bellows (5) is used to COM-pensate the forces resulting from the changesIn differential pressure, so that they do notHave any influence on the valve position. The upstream pressure to be controlled isTransmitted to the operating diaphragmVia the control line (10) and converted intoA positioning force. This positioning forceIs used to move the plug stem, dependingOn the force of the adjustment springs (7). The set point can be adjusted at the setPoint adjuster (8) by changing the load of The springs
