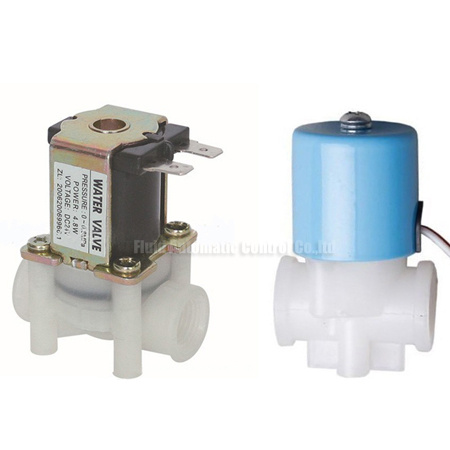

*FCD Series solenoid valve for RO reverse Osmosis water dispenser,water purifer
*Normal close pilot type
*Edible food grad health level plastic
*Working Medium public using water
*Port Size G1/4” NPT1/4 Jaco connector
*Thread connect type or quick push-in connect for option
Features and Technical information
Apply to RO Reverse Osmosis system home using water dispenser,commercial application water purifier,pipeline machine, drinking water machine, coffee machine etc
1,Product StructurePilot type Normal Closed
2,Port sizeG1/4 or NPT1/4 female Jaco connector,Or Quick push-in 1/4 Inch Hose
3,Voltage DC12VDC24VDC36VDC230VAC110VAC220V
4,Working Water pressure0~0.8Mpa
5,Working Medium1~100ºC Public using water
6,Water pressure endurance:Tested 2.0Mpa for 10Minutes no abnormity
7,Coil free mounting
8,Life cycle100000 cycles
9,For control the wastewater,must to match with the Flow Restrictor
Fenghua Fluid Automatic Control Co., Ltd. is a serious professional manufacturer of Pneumatic line products.
Company located in Xikou which is the national famous scenic coastal town enjoying very convenient sea, land and air transportation
Integrating development, production and sales together, FLUID possessing advanced equipment and strict complete managing system. Currently we have main products line air service units, Directional control valve, air cylinder, air fittings, air tubings, vacuum components, pneumatic parts and hydraulic fitting etc
With over 10 years experience and thorough knowledge to pneumatic industrial sector, FLUID dedicates to provide customers the high quality products, best technical solution and faithful service.
FLUID taking"customer supreme, quality first, reputation oriented" as tenet, keeping pace of every technical improvment and innovation to provide rich stocked standard products and customerized products also.
FFLUID staff promise"Reasonable price, short leading time, never ever lie to customer".
Both for mutual benefit and prosperous futher, FLUID welcome customers domestic and abroad to contact us for a long term cooperation.
