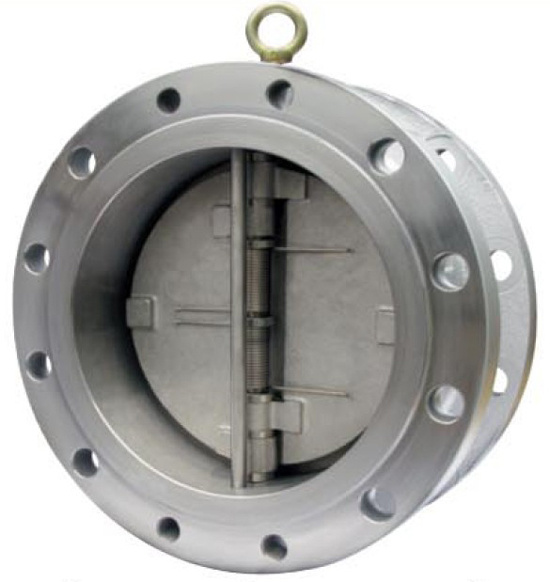

Flange check valves- PHV-4
APPLICATIONS
Pumping stations and network for clean water distribution, irrigation(filtered water)
Fire protection networks
Air-compressors
Applications with different fluids (to be consulted)
Ensuring the protection of pumps against flow inversion
TECHNICAL DATA
Range: DN 50 to DN1200
Connections: Wafer body for mounting between flanges PN 10/16 and ANSI 150# (for other inquire)
Maximum working pressures depending on material construction
Operating temperatures -10° C +120° C (for other temperatures inquire)
Seating: Class A according to standard ISO 5208
Minimum backpressure for tightness: 0.5 bars
TECHNICAL PERFORMANCES
Short Face To Face connection with good hydraulic performance
Low pressure drop
Compactness
Seal vulcanized on the seat of the body
Springs helping closing the plates (reducing waterhammer)
Two springs for equilibrated forces on the plates.
Stops on plates to reduce friction between ears of platesand shaft
Symmetrical flow obtained by the centering pin when the plates are fully opened.
Horizontal and Vertical installation in pipeline
Lifting rings from DN 250
ENSAYOS
Seat: 1.1 x nominal pressure
Body: 1.5 x nominal pressure
