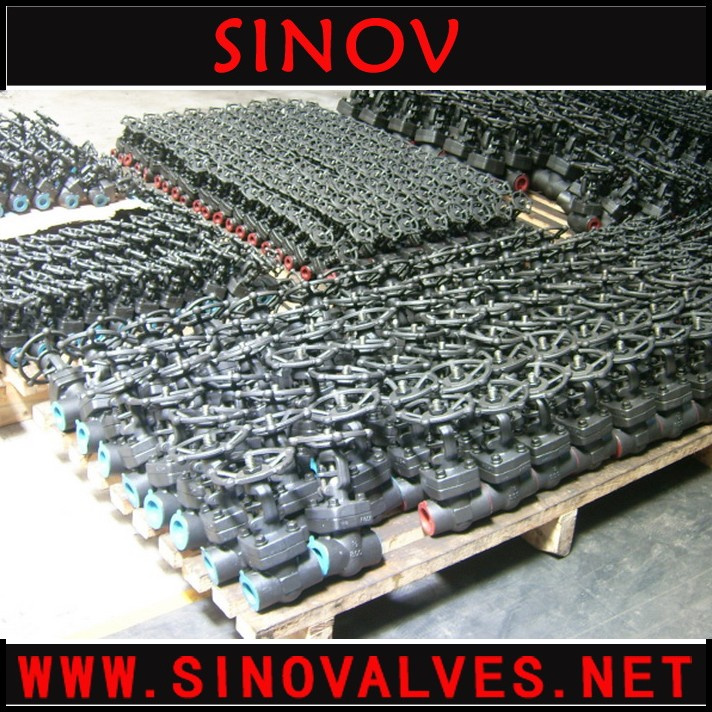

Forged Steel Gate Valves are with Features and Specifications as below:
Design & Manufacture:API 602
Constructions:OS&Y, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet
Back-seating, Renewable Seat Ring
Full Port / Conventional Port
Size Range:1/4" to 4"N.B.
Pressure Ratings:ANSI 800, 900, 1500 & 2500
End Connections:Threaded, Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections.
Materials Available in:A105, F304, F316 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials;Various trim materials available to suit service conditions
Various trim materials are available to suit different service conditions
To MR 0175 and MR 103 on request
CERTIFICATES
API
TUV CE
ISO
Since 1989, Sino Valve has dedicated itself to manufacture a wide range of industrial valves for the services of Oil, Gas, Refinery, Chemical, Marine, Power Station. 90% of our valves are OEM for European and United State valve brand, so top quality can be assured with competitive price.
