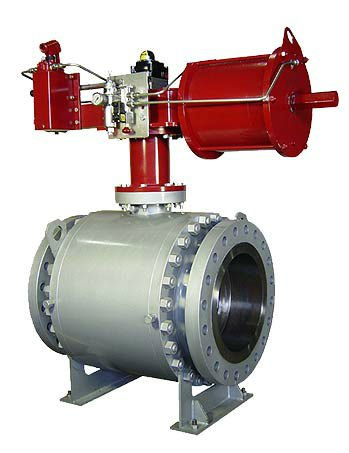

Forged Steel Ball Valve (Q647)

3 PC Forged Steel ball valve:

They are supplied for a broad range of applications in the power generation, chemical and petrochemical, oil and gas, pulp and paper, mining, and ship-building industries

A. Forged ball valve feature
ZHONGCHENG forged ball valve, the forging material can ensure sufficient rigidity and strength under maximum rated operation pressure without inherent flaw of cast. Enough wall thikness of separate body and adaptation of high strength tie bolts are convenient for valve maintenance and sufficient to bear the stress of pipe. The internal parts of valve are carefully designed and selected to ensure reliability under all kinds of work condition.

B. Anti-fire safe design
When the trunnion ball valve be used normally, its sealed by seat and ball surface, seat retainer sealed by O-ring and body, this is soft sealed and reliable sealing. When the seat and O-ring are burnt, the seat retainer and body will be sealed by expanded graphite. Thus act anti-fire safe purpose.

C...Anti-static device
In order to prevent friction among ball, stem and PTFE that generates static electricity which may light the combustibles and explosives that cause an accident, in this ball valve, static-conduction spring is set between the stem and the ball, the stem and the body. Thus static electricity is conducted to ground and system safety is secured.

D. Free leakage of body Sealed construction
The connective position of valve body and bonnet is double sealed by gasket and O-ring, on this base, such factors as fire, high temperature, shock and uneven opening or closing of the torque all can't induce external leakage.

E. Low torque in operation
The self-lubricated bearings are installed at the friction of stem, resulting in wear resistance, fiexibility of operation and low torque.

F. Double block&bleed(DBB)
When ball is full open or close position, the transmitter substance in center cavity of body can be released by drainage and emptying devices. In addition, the over loaded pressure in the center cavity of valve can be released to low pressure end by self relief seat.

G. Extension stem
For the underground installed valve, the stem can be lengthened and for the convenience of operation the corresponding compound injection nozzle and drainage valve can be extended to the top of valve.

Working condition:

Working temperature: -30 ° C~570 ° C

Working temperature: 1.6~42mpa

Media: W. O. G(Water, gas, Oil)

Design & Manufacture:

Port type: Full port (FP&FB), Reduce bore/Port(RB&RP)

BB, Bolted bonnet,

Design standard: BS5351, API 597, API 6D, DIN, JIN, ASMEB16.34

Structure: Split body, 3 pieces, floating and trunnion mounted

Connection ends: Flange (ASME/ANSI B16.5A, ASME B16.47) SW(ASME B16.25)

Connecting end: Flange or buttwelding end

Specification:

Size: From 1/2" to 24"
Class: From 150lb to 900lb

Operator type: Lever, gear, actuator(include electric, pneumatic, hydraulic, electric - hydraulic, etc.

Part Material Name:
Body: WCB LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3M, CF8C,

Ball: A105, 13CR, 2Cr13, F304. F316,

STEM: 13CR, 2Cr13, F304. F316,

SEAT: A105 +STL, . F316, F304,

Sealing face: Hard face and Soft face, Metal to metal seal or soft seal; Metal to metal sea;

Soft seal: PTFE
