Floating Ball Valves
A floating ball valve is a valve with its ball floating (not fixed by a trunnion) inside the valve body, it drifts toward to the downstream side and tightly pushes against the seat under the medium pressure to ensure sealing reliability. The floating ball valve has simple structure, good sealing performance but the seat material is required to withstand the workload since the sealing pressure is bared by the seat ring. Due to unavailability of high performance seat material, floating ball valve is mainly used in middle or low pressure application.

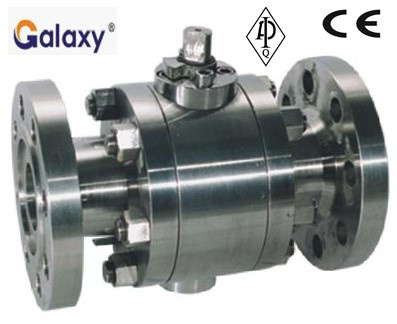

Galaxy series floating ball valve series featuring 2-PC split body side entry or uni body, a very popular design in floating ball valve. WINDMILL offers 3 main categories: Conventional design covers working temperature-46ºC~200ºC, Cryogenic design covers working temperature -196ºC~-46ºC, and High performance design covers working temperature 200ºC~500ºC.
Design Features
Full port or Reduce port
Fire safe certified
Blowout-proof stem
Anti-static
Low emission control
ISO 5211 top flange
Optional locking device
Reliable Seat Seal
The structure design of double-beveled sealing ring has been adopted to reduce the friction between the ball and the sealing ring to achieve lower operation torque. When the medium pressure is low, the ball has smaller contacting surface with sealing ring, which introduces higher sealing pressure to ensure the sealing reliability. When the medium pressure gets higher, the contacting area between ball and sealing ring increases accordingly. Larger contact area reduces the sealing pressure to avoid the deformation of sealing ring.
Fire Safe Design
In case of fire, non-fireproof material for packing and seat will be burnt-out and considerable medium leakage may possibly cause fire spread. FBV adopted metal to metal seal as auxiliary structure to prevent medium leakage in case of fire as shown in figures. The fire safe design confirms to the requirements of API607, API 6FA and BS 6755.
Products Range:
Size: 1/2"~10"
Rating: ANSI Class 150LB, 300LB
Materials: WCB, LCB, LCC, CF8, CF8M, CF3, CF3M or Equivalent.
Actuation: Lever, Gear, Pneumatic operator
Technical Specification:
Temp & Pressure: ASME B16.34 BS 5351
Wall thickness: ASME B16.34 BS 5351
Bore dimension: API 6D, BS 5351
Face to face: ASME B16.10 API 6D
Flanges dimensions: ASME B16.5 BS1560
Test & inspection: API 598, API 6D, BS 5146
Body material: A105, LF2, F304, F316, F304L, F316L
|
Parts Name |
Carbon Steel |
Low Temp. Steel |
Stainless Steel |
|
Body |
ASTM A105 |
ASTM A350 LF2 |
ASTM A182 F316 |
|
O-ring |
VITON |
VITON |
VITON |
|
Bonnet |
ASTM A105 |
ASTM A350 LF2 |
ASTM A182 F316 |
|
Nut |
ASTM A194 2H/2HM |
ASTM A194 4 |
ASTM A194 2HM/8 |
|
Stud |
ASTM A193 B7/B7M |
ASTM A320 L7 |
ASTM A193 B7M/B8 |
|
Seat |
RPTFE |
RPTFE |
RPTFE |
|
Ball |
ASTM A105+ENP |
ASTM A350 LF2+ENP |
ASTM A182 F316 |
|
Stem |
ASTM A182 F6a |
ASTM A182 F6a |
ASTM A182 F316 |
|
Stem washer |
304+PTFE |
304+PTFE |
304+PTFE |
|
O-ring |
VITON |
VITON |
VITON |
|
Packing |
PTFE/Graphite |
PTFE/Graphite |
PTFE/Graphite |
|
Packing Gland |
Carbon Steel |
Carbon Steel |
Stainless Steel |
|
Nut |
ASTM A194 2H/2HM |
ASTM A194 4 |
ASTM A194 2HM/8 |
|
Stopper plate |
Carbon Steel |
Carbon Steel |
Stainless Steel |
|
Lever |
Carbon Steel |
Carbon Steel |
Stainless Steel |
Zhejiang Galaxy Machinery Manufacture Co., Ltd., which is established in 1987, mainly deals in manufacturing and exporting of various kinds of petroleum machinery equipments and valves. We have 2 big workshops, one is especially for petroleum machinery equipements for manufacturing air-eliminator dispenser vane pumps, emergency shut-off valves, automatic nozzles; The other one is especially for valves, such as ball valves, gate valves, globe valves, check valves, and plug valves.
We are the ISO9001 certificated factory. All our production process are accord with the international quality standard. Allour products passed CE, and API. High quality and excellent after-sales service have made our products getting good market nearly in every part of the world, such as the USA, Australia, Africa, Germany, Singapore, India, Norway, Saudi Arabia, Kuwait, and Lebanon. With years of export experience, for valves we are good at manufacturing at such standards as GB, DIN, ANSI, BS, AS, JIS, ISO, and API. We can make orders as per clients' special requirements.
OEM/ODM is available for us.
"Galaxy's quality, forever guarantee", we welcome all clients visit our Co. And cooperate with us, we wish to achieve the win-win cooperation by joint efforts. Welcome to our factory any time at your convenience.
