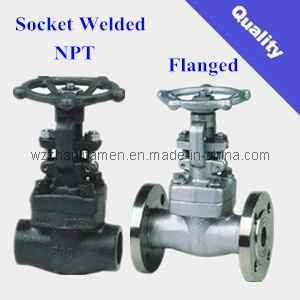

Followings are the details of the Forged Steel Gate Valve made by our company:
1. Technical Specifications: (1)Design Standard: API 602/ANSI B 16.34
(2)Face to Face Dimensions: ANSI B16.10
(3)Connection Type: Socket Weld ANSI B 16.11, Threaded End ANSI B1.20.1
(4)Structures: Bolted Bonnet, Welded Bonnet and Seal-sealed Type
(5)Test Standard: API 598
2. Performance Specifications: (1)Shell Test: 19.5Mpa(800LB), 37.5Mpa(1500LB), 63.0Mpa(2500LB)
(2)Seal Test: 14.3Mpa(800LB), 27.5Mpa(1500LB), 46.2Mpa(2500LB)
(3)Suitable Temperature: Carbon Steel -29-425 Celsius degree, Stainless Steel: -59-
540 Celsius degree
(4)Suitable Medium: W. O. G
3. Main Parts and Materials: (1)Body: A105, LF2, F5, F11, F22, F304, F316
(2)Seat: A276-420+STL, 304+STL, 316+STL
(3)Wedge: A276-420, 304, 316
(4)Stem: A276-410, A276-304, A276-316
(5)Bonnet: A105, LF2, F5, F11, F22, F304, F316
(6)Packing: Flexible Graphite+304, PTFE
(7)Gland: A276-410, A276-304, A276-316
(8)Gland Flange: A105, F304
(9)Stem Nut: A194-2H, 304, 316
(10)Handwheel: QT400-5
(11)Lock Nut: A194-2H, 304, 316
(12)Nut: A194-2H, 304, 316
(13)Bolt: A194-B7, 304, 316
(14)Pin: 2Cr13, A276-304
(15)Bonnet Bolt: A194-B7, 304, 316

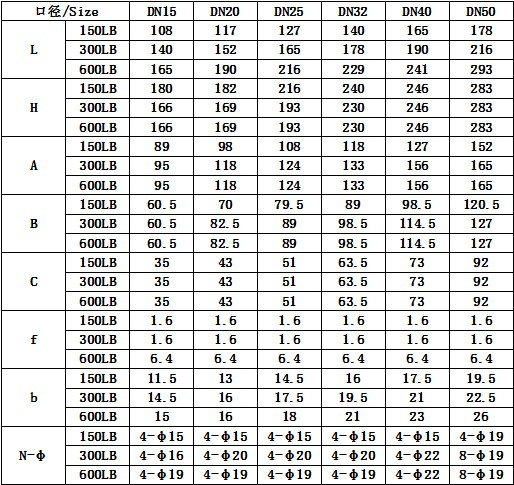

4. Main Sizes and Dimensions: Please consult the table below! Flanged Type:
Socket Welded and NPT Type:
If this product interests you, please feel free to contact with us!
