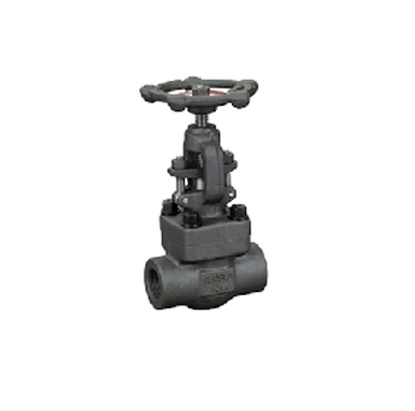

Features of Forged steel globe valve:
1) Standards:
A) Design&Manufacture: API 602, BS 5352, ASME B16.34
B) Face to Face: MSS SP-84
C) Connection End: ASME B2.1, ASME B16.11
D) Test and Inspection: API598
2) Sizes: 1/2" - 2" or DN12 - DN50
3) Pressure Rating: Class150 - Class1500 or PN16 - PN250
4) Material: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, etc.
5) Operated by: Handwheel.
Features:
Welded connection valve cover
Integral seal down
Low leakage test stem packing by
Automatically adjust the preload gland packing
Application criteria:
Design: API 602/ASME 16.34/BS 5352
Pressure Test: API 598
Tag: MSSl SP25
SW Socket welding ends according to ASME B16.11
BW butt end byl ASME B16.25
NPT threaded connectors according to ASME B1.20.1
Pressure rating: CLASS 800, CLASS 1500, CLASS 2500
Size range: 1/4 "to 2"
Carbon Steel: A105, LF2
Stainless Steel: F304, F304L, F316, F316L
Duplex: F51, F55
Alloy: F1, F5, F5A, F9, F11, F22
Design & Manufacturing Standard | API 602, ASME B16.34 |
Face to face(end to end) | ASME B16.10, API 6D, EN 558 |
Flange Connection Size | ASME B16.5, (DIN 2501) |
Butt Welding Size | ASME B16.25 |
Pressure-Reference Temperature | ASME B16.34 |
Test and inspection | API 598, API 6D |
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.
Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.
Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.
Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
