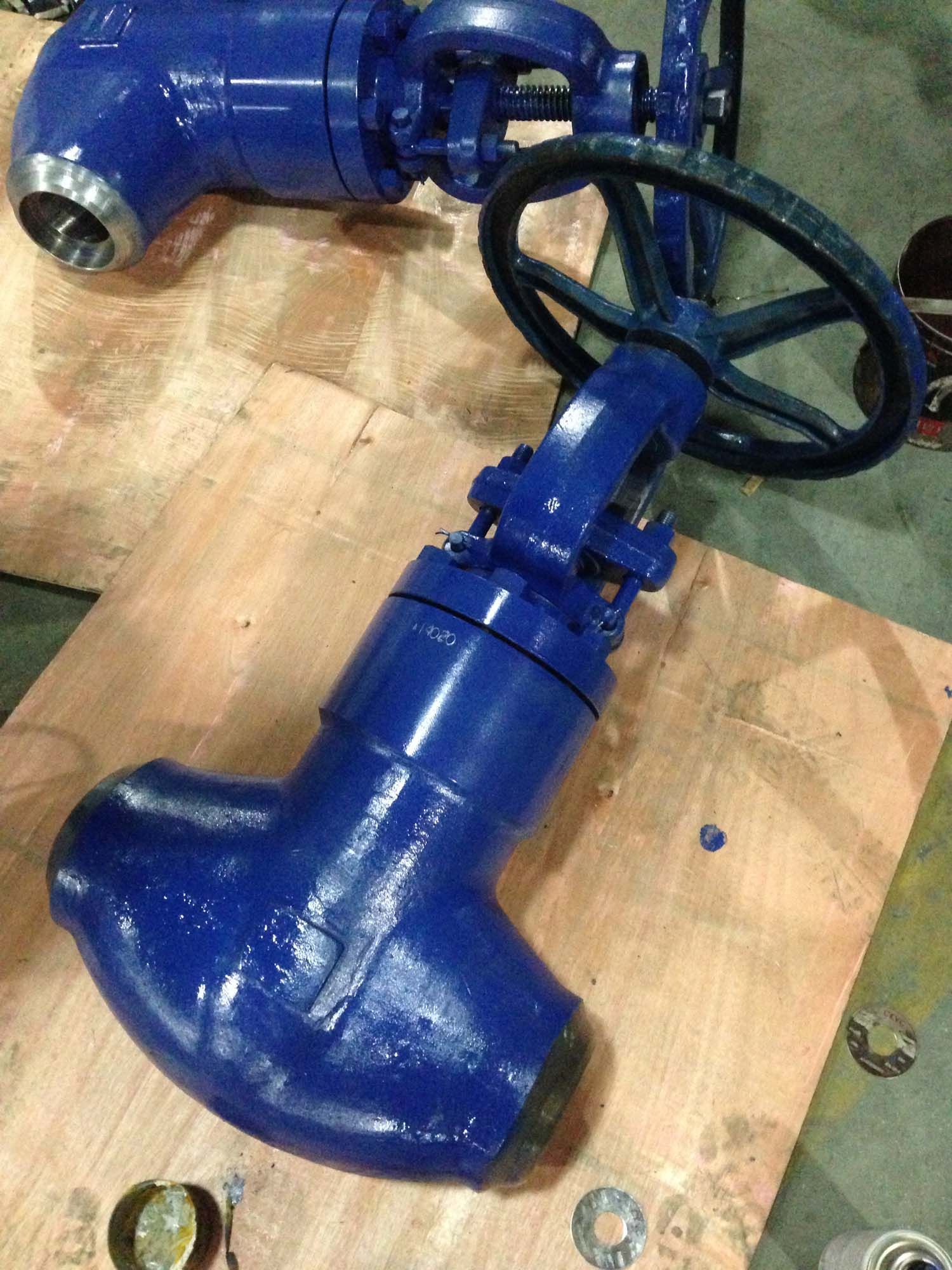

Forged Steel High Pressure Globe Valve
Product Description
Cast & Forged Steel Globe Valve
Features & Specifications:
1. Design & Manufacture of Globe Valve: API 602
2. Bolted Bonnet Globe Valve,Self-sealing type
3. Full Port Or Reduced Bore
4. Size Range of Globe Valve: 1/2" to 48".
5. Pressure Ratings: ANSI 150, 300, 600, 900,1500,2500
6. End Connections of Globe Valve: Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections
7. Materials Available in: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials of Globe Valve are available to suit service conditions
Actuations: Manual, Electric, Hydrau-Pneumatic Actuator
Forged Steel High Pressure Globe Valve
Features:
Welded connection valve cover
Integral seal down
Low leakage test stem packing by
Automatically adjust the preload gland packing
Application criteria:
Design: API 602/ASME 16.34/BS 5352
Pressure Test: API 598
Tag: MSSl SP25
SW Socket welding ends according to ASME B16.11
BW butt end byl ASME B16.25
NPT threaded connectors according to ASME B1.20.1
Forged Steel High Pressure Globe Valve
Kaiweixi (KVC) specializes in the development, research, manufacture, and sales of valves. Established in 2003 with a registered capital USD7, 000, 000, Kaiweixicovers an area of 104, 000 square meters and has 360 employees, with 51 advanced technicians and 11 senior engineers. Our products covering plug valves, ball valves, check valves, globe valves, gate valves and hydraulic control valves conforming to ANSI/API, DIN, BS, JIS, EN and GB standards have been welcomed by clients in China and abroad.
