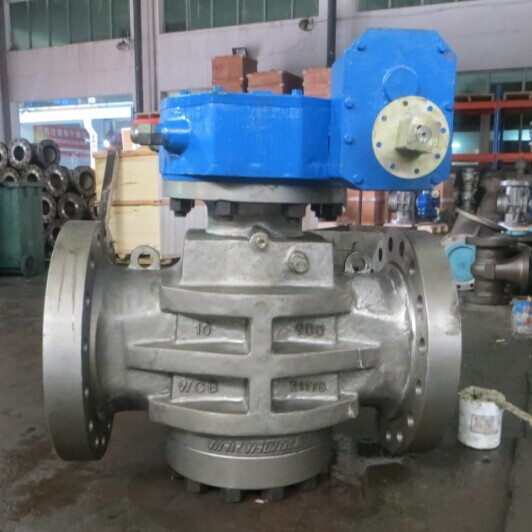

Pressure Balance Lubricated Plug Valves
Product Description
Inverted Pressure Balance Lubricated Plug Valves (X47H)
Standards Compliance:
Design and Manufacture: API 599, API 6D
Face to face(end to end): ANSI B 16.10
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API 598, API 6D
Main Structural Features:
Bolt cover, structure of flip-chip balanceable pressure and light on/off operation. An oil grove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability
Pressure
Class 150 ~ Class 1500
Size
2" ~ 20" / 50mm ~ 500mm
Operation
Manual, Gear, Pneumatic, Motor.Hydraulic.etc.
Kaiweixi (KVC) specializes in the development, research, manufacture, and sales of valves. Established in 2003 with a registered capital USD7, 000, 000, Kaiweixicovers an area of 104, 000 square meters and has 360 employees, with 51 advanced technicians and 11 senior engineers. Our products covering plug valves, ball valves, check valves, globe valves, gate valves and hydraulic control valves conforming to ANSI/API, DIN, BS, JIS, EN and GB standards have been welcomed by clients in China and abroad.
