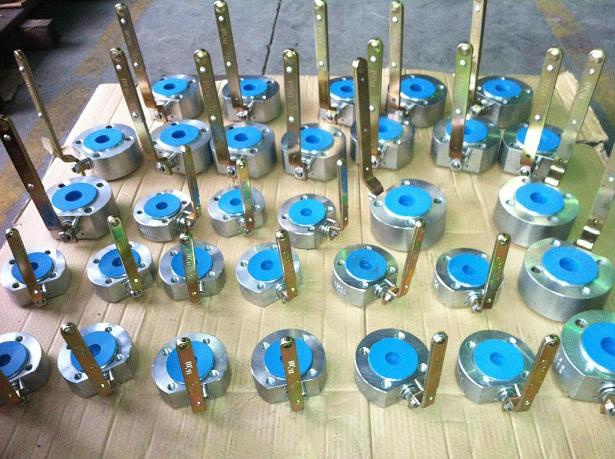

Forged Steel Wafer Ball Valve (RF) DN15-DN100 PN16
Body A105
Ball A182 304
Stem A182 304
Seat R. PTFE
Packing GRAPHITE
Size DN15-DN100
MAX Pressure 1.6Mpa(16Bar)
Design Standard ASME B16.34
Face to Face Dimension MFG. Standard.
End Flange Dimension EN1092-1
Inspection API598/EN12266-1
Fire Safe Acc. To BS 6755/API607/6FA
Media MINERAL OIL, STEAM
Max Temp. 160 degree
UNICIMA VALVE MANUFACTURING
Co., Ltd.Is a Sino-Japan joint venture with Japan UNICIMA Corporation, specialized in developing and manufacturing ball valve and it actuator.
Our goal is to "satisfy customers by innovation, process control, and continuous improvement".Utilizing the advanced valve design, fabrication process of Japan UNICIMA Corporation, we adopt the design standard of ANSI, API, BS, JIS, GB, NF, JB to manufacture valves of various materials, including the cast steel and the forged steel .
Our Products include as following:
Floating Ball Valves;
Casting Steel Trunnion Mounted Ball Valves;
Forged Steel Trunnion Mounted Ball Valves;
Three Way Ball Valve;
High/Low Temperature Ball Valve;
Electric Ball Valve;
Pneumatic Ball Valve;
Threaded Ball Valve;
Cryogenic Ball Valve <-196 degree>;
Steam Jacketed Three Way Ball Valve;
Metal Seated Pneumatic Ball Valve;
Pressure:Class150 lb---Class 2500 lb,
Size:1/2 "---24",
Seat:Soft seated, Metal seated, High temperature seated.
Application:Oil & Gas, Pulp & Paper, Chemical, Marine, Mining, Metallurgical, Refinery, Power station, Food, Pharmaceutical, etc.
UCM-C is an ISO 9001, API 6D <6D-0882>, Lloyd's Register Fire Safe Test and Manufacture License of Special Equipment certified manufacturer for its complete set of quality assurance system.And also conforms to API 6FA.
