Size : 1/4~36"(DN8~DN900)
Rating : 150LB~2500LB (PN16 ~ PN100)
Connection:Welding
Working Temperature:-46~540ºC
Seat:PTFE,RPTFE,NYLON,MOLON,PEEK,DEVLON,POM,PCTFE,PPL,
STL NI60,STL NI55,STL20#,STL6,WC,TCC
Material:
WCB,LCB,LCC,WC9,WC12,A105,LF2,F304,F316,F316L,F304L,F321,F51,F53,F55,F60,F6a, 20 Alloy,C61900,C63200,C83600,C37700,Inconel625,Inconel825,Monel400,Monel500,H.C-276ect.
Application Specifications:
1.Design and manufacture conform to BS5351 ASME B16.34
2.Face to face ANSI B16.10
3.End flange to ANSI B16.5
4.Bw end to ANSI B16.25
5.Test and inspection conform to API598
6.Material conform to ANSI/ASTM
Features:
1.Two-Pieces Forged Body
2.Both Floating Type and Fixed type
3.Blow-out Proof Stem
4.Fire Safe Design
5.Anti-Static Device
6.Interlocking Device
7.High-powered stability
Mode of Operation:
Turbine,Manual,Electrical.

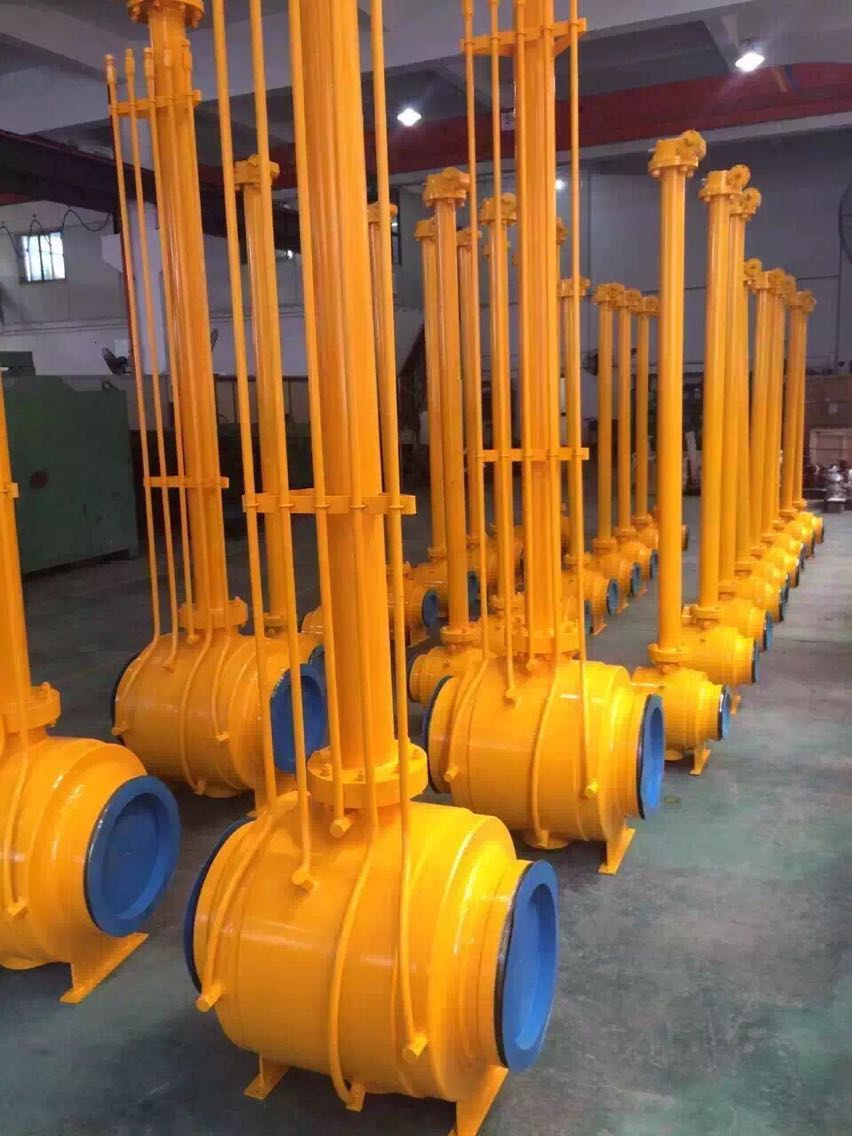

Full welded ball valve is widely used in city gas, urban heating, petroleum chemical industry, shipbuilding, iron and steel, gas stations, power plants all kinds of pipelines and equipment, it can buried in underground without building tall valve and reduce the project cost, but can also avoid the valve operation cause personnel injury, long-term operation
