Gas Cylinder Valve QF-6C for Gas Cylinders Tanks:
-Mat: Brass;
-DN: 4mm; W. P: 15Mpa;
-Inlet Thread: PZ 27.8;
-Outlet thread: Female 5/8''G.
-Without handwheel.

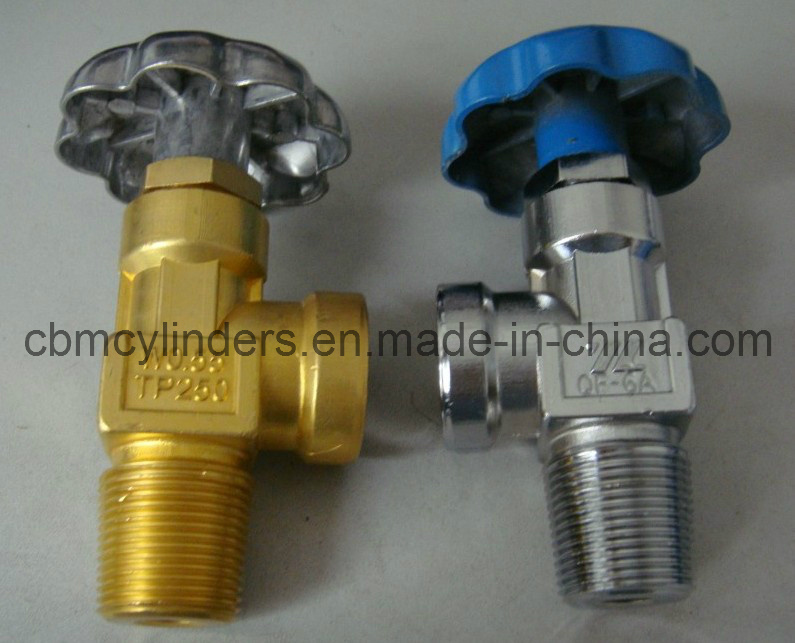

(Referenced Brass gas valve QF-6A & chromed gas valve QF-6A)A valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. Valves are technically valves fittings, but are usually discussed as a separate category. In an open valve, fluid flows in a direction from higher pressure to lower pressure.
The simplest, and very ancient, valve is simply a freely hinged flap which drops to obstruct fluid (gas or liquid) flow in one direction, but is pushed open by flow in the opposite direction. This is called a check valve, as it prevents or "checks" the flow in one direction.
Valves have many uses, including controlling water for Irrigation, industrial uses for controlling processes, residential uses such as on / off & pressure control to dish and clothes washers & taps in the home. Even aerosols have a tiny valve built in. Valves are also used in the military & transport sectors.
Gas cylinder valves are found in virtually every industrial process, including water & sewage processing, mining, power generation, processing of oil, gas & petroleum, food manufacturing, chemical & plastic manufacturing and many other fields.
Should you have any intersts or some more info needed on our gas cylinder valves, just pls feel free to enquire us!
|
NO. |
Type No. |
Produce Name |
suitable
Medium |
PN
(Mpa) |
DN
(mm) |
Outlet thread(mm) |
Jiont Thread
to cylinder (mm) |
Temp./Pressure
of safety device |
|
1 |
QF-6A |
|
Valve type oxygen bottle valve |
|
|
15 |
4 |
G5/8 |
GB8335 PZ27.8 |
21±1.5 |
|
2 |
QF-2A1 |
Brass Shaft Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
7 |
W22 x 1/14 |
GB8335 PZ27.8 |
21±1.5 |
|
3 |
QF-2A8 |
Brass Shaft Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W21.8 x 1/14 |
GB8335 PZ27.8 |
21±1.5 |
|
4 |
QF-2A17 |
Brass Shaft Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
CGA320 |
GB8335 PZ27.8 |
21±1.5 |
|
5 |
QF-17 |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
12.5 |
4 |
CGA320 |
UNF1.125-12 |
15-18.75 |
|
6 |
QF-16A |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
2.5 |
W21.8 x 1/14 |
M18 x 1.5 |
21±1.5 |
|
7 |
QF-35 |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
CGA320 |
UNF1.125-12 |
21±1.5 |
|
8 |
QF-35A |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W22 x 1/14 |
UNF1.125-12 |
21±1.5 |
|
9 |
QF-35B |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W22 x 1/14 |
UNT(1A)3/4-16 |
21±1.5 |
|
10 |
QF-35C |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
G1/2 |
UNF1.125-12 |
21±1.5 |
|
11 |
F-5 |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
7 |
Female Thread G5/8 |
GB8335 PZ27.8 |
21±1.5 |
|
12 |
F-2M |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W22 x 1/14 |
JIS B 8246 V2 |
21±1.5 |
|
13 |
F-2M1 |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W22 x 1/14 |
GB8335 PZ27.8 |
21±1.5 |
|
14 |
F-2M2 |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W22 x 1/14 |
GB8335 PZ19.2 |
21±1.5 |
|
15 |
F-2N |
Brass Flapper Coupling type Cylinder
valve for CO2 |
CO2 |
15 |
4 |
W21.8 x 1/14 |
JIS B 8246 V2 28 |
Zhejiang Shengwei High Pressure Vessel Co., Ltd. is located in Yuyao, a famous historical and cultural city abutting on the Hangzhou Bay. The company established in June 2010, engaged in industry of high-pressure vessels. The factory covers about 21000square meters and an plant building with 15000 square meters. Now the company has the fixed asset more than 30 million RMB, and 120 employees. And there are 32 technicians among them. Also company has three advanced production lines of steel seamless cylinder and corresponding testing equipment. The company aims to produce and sales over 400000 0.2L-15L steel seamless cylinders each year.
Zhejiang Shengwei High Pressure Vessel Co., Ltd. is based the company mission of Quality First, Customer First, Technology advanced and Service Best. Establishing the quality assurance system for gas vessel producing. The company has B1 level qualification on pressure vessel, and also passed the ISO9001: 2008 International Quality Management System Certification. The company uses the most strict standard management to manage the procession of producing and testing and dedicates to design and make high-quality products with the most advanced technology.

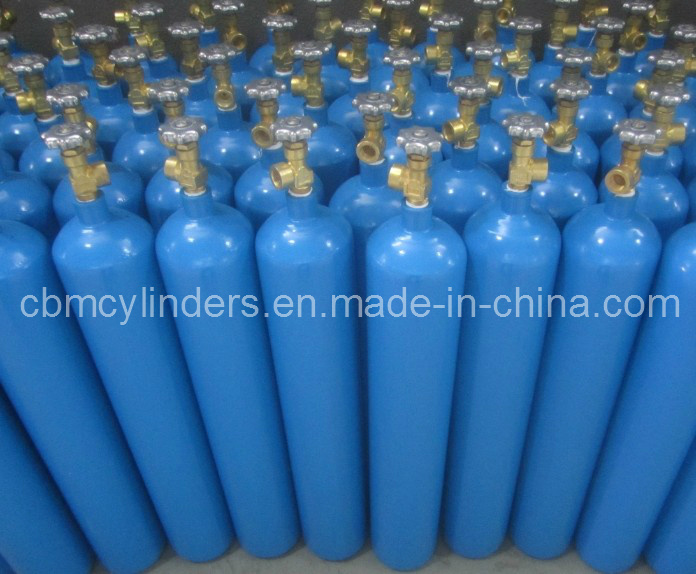

Our company has advanced equipment, and consummate equipment for product Testing. The main production including nitrogen bottles, argon bottle, carbon dioxide bottle and seamless steel cylinders. The products are sold very well all over the world. The company welcomes all friends come to communicate and discuss with us for seeking common win-win development, and dedicates to offer the users with the high quality products and excellent service.
