Geothermal Heat Pump for Hot Water (SFXRS-40II)
Geothermal Heat Pump
1) it can be worked as an air conditioner, and while the same time, it can provide you with hot water; Also can be worked separately, such as an air conditioner or water heater.
2) LCD display controller, easy and automatic control.
3) insufficient water flow protection of heat pump
4) high/low pressure protection of heat pump.
5) automatic reversing defrosting function enables, units to work reliably in hard winter.
Wä Rmepumpe, wä Rme pumpe, pompa ciepa, pompy ciepa, bomba calor, pompe chaleur, pompa di calore, α ν τ λ α θ ρ μ τ η τ α , varmepumpe, varmepumpen, varme pumpe, warmtepomp, warmte pomp, tepelné Erpadlo, hszivattyú , hszivattyú S, s pompas, toplinska pumpa, siltumsknis, toplinska pumpa, toplinska crpka, ilumos siurblys, soojuspump, bomba calor
6) unit runs automatically according to set water temperature.

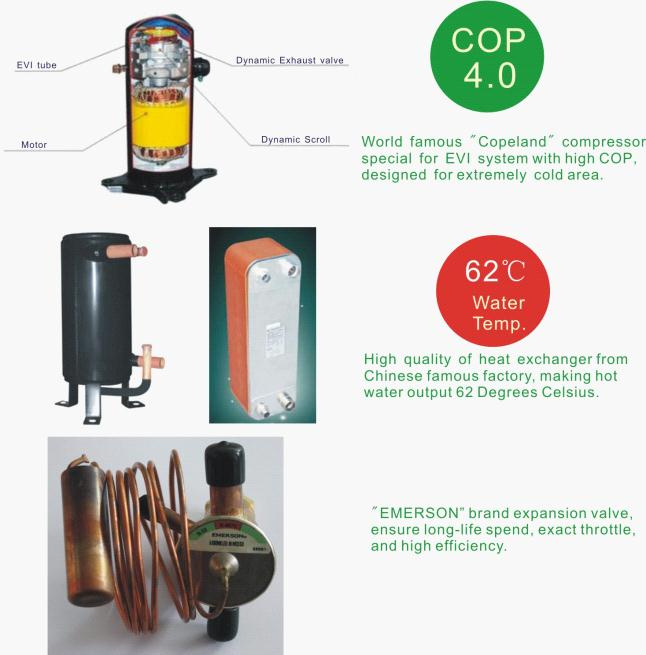

7) qualified components: Branded compressor, emerson expansion valve, high efficient heat exchanger, durable and low noise fans.
|
Water Source Heat Pump |
|
|
|
SFXRS-8I |
SFXRS-12II |
SFXRS-20II |
SFXRS-40II |
SFXRS-60II |
|
Heating capacity |
kW |
8 |
12 |
20 |
40 |
60 |
|
Input Power |
kW |
1.7 |
2.5 |
4.1 |
8.3 |
12.6 |
|
Input Current |
A |
9.2 |
4.7 |
7.7 |
15.9 |
23.8 |
|
Rated Outlet Hotwater Temperature |
Degree |
55 |
|
Max Outlet Hotwater Temperature |
Degree |
60 |
|
Voltage |
220V/50Hz |
380V/50Hz |
|
compressor |
Type |
Rotor Type |
Scroll Type |
|
Start Mode |
Indirect Start |
|
No. |
Unit |
1 |
1 |
1 |
2 |
2 |
|
source side heat exchanger |
Type |
plate-type heat exchanger |
Shell and tube exchanger |
|
Water flow |
m3/h |
1.1 |
1.6 |
2.7 |
5.3 |
8.0 |
|
Water pressure |
kPa |
< 20 |
< 38 |
< 40 |
|
Water Pipe |
mm |
DN20 |
DN20 |
DN25 |
DN32 |
DN50 |
|
Application side heat exchanger |
Type |
shell and tube heat exchanger |
Shell and tube exchanger |
|
Water flow |
m3/h |
1.4 |
2.1 |
3.4 |
6.9 |
10.3 |
|
Warte pressure |
kPa |
< 20 |
< 35 |
< 40 |
|
Pipe Size |
mm |
DN20 |
DN20 |
DN25 |
DN32 |
DN50 |
|
Protection |
high pressure and low pressure protection, anti-freezing protection, high temperature protection, safety valve, overload protection, lack phase protection, reverse phase protection, water flow protection ect. |
|
Refrigerant |
Type |
R22/R410A/R407C/R134A |
|
Throttle Type |
Thermostatic Expansion Valve |
|
quantity |
kg |
1.1 |
1.9 |
2.8 |
2.7× 2 |
4.5× 2 |
|
Noise |
≤ dB |
35 |
38 |
42 |
62 |
62 |
|
Weight |
kg |
45 |
69 |
93 |
340 |
570 |
