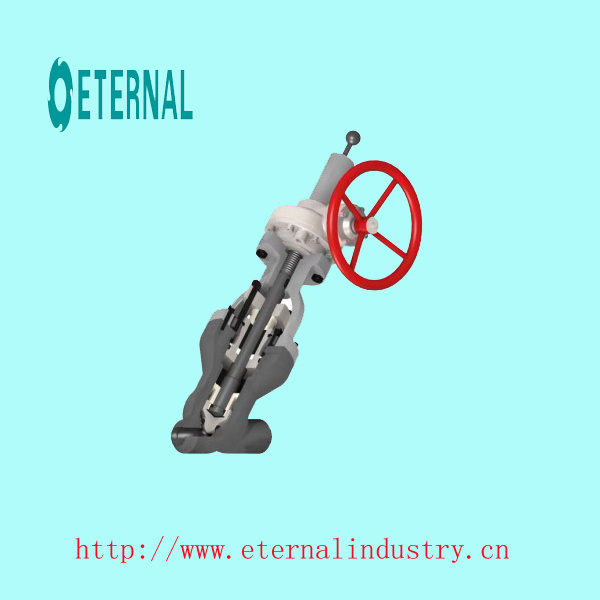

Y type Pressure Seal Bonnet Globe Valve Body
We could manufacture all kinds of globe valve body according to our customers' requirements.
Main Description about Y type Pressure Seal Bonnet
It is the type of valve with an inclined stem configuration, called Y-pattern type or T-pattern with the following features:
---fully guided disc in the body
---alternative shapes of disc(plug type, needle type, parabolic shape)
---swivel type stem-to-disc connection
1. Materials:
Carbon steel, low alloy steel(including the widely used 9% Cr alloys), austenitic stainless steel, nickel alloys.
Materials are either to ASTM/ASME standards or to EN standards, either harmonized or calculated to design conditions.
2. Pressure classes:
900#, 1500#, 2500# as per ANSI standard. Class 4500# is also available to customer request.
3. Size:
Size range depends on pressure class requirements.
We could design and manufacture various valve bodied according to the customers' different requirements.
And welcome to send inquiry to us.
