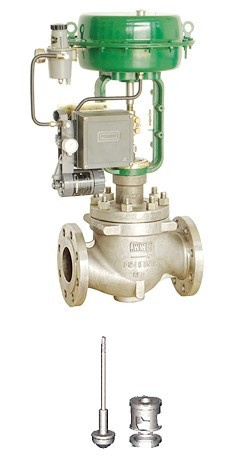

High pressure Control Valve with Speed-limit Cage. Designed for application in flow control of high pressure, high spped and high pressure differential with construction of:
A. A balanced plug
B. A sleeve cage
C. A caged seat
D. Flow-to-close
E. Dually guided flow
Designed to avoid the dramatic drop of pressure that creates turbulence of flow and vibration of parts so to prevent cavitation and vaporization from happening by greatly cutting down the flow speed and noise.
Control Valve with Speed-limit Cage offers the best combination of a full-range control with the improved stable performance of the plug in high pressure or in a dramatic decrease of pressure as well as the adjustability of the plug when approaching the seat. Furthermore, the life of the valve is prolonged as the cage guiding the flow reduces the vibration and friction of the plug.
To meet the requirements of different standards, Control Valve with Speed-limit Cage is ideally designed for low noise and cavitation resistance in flow control process in various kinds of critical conditions.
|
Specification |
|
DN mm |
DN40-400 mm |
|
PN |
ANSI 150,300,600 JIS10K,30K 60K |
|
Material of parts |
Body |
WCB,CF8,CF8M,Hastelloy B-2, Hastelloy C-276 |
|
Disc |
WCB,CF8,CF8M |
|
Stem |
310S,304,316L |
|
Packing |
PTFE, graphite |
|
Sealing ring |
CGM,316L |
|
Fluid temperature |
Normal temp. |
-17-230 °c |
|
Extension1(E1) |
-45°c ~-17°c,+230°c ~+566°c |
|
Extension2(E2) |
-100~ -45 °c |
|
Extension3(E3) |
-196~ -100 °c |
|
|
|
|
Rated stroke |
0- 90° |
|
Ambient temp. |
-20~ +80 °c |
|
Flow characteristics |
Almost equal percentage |
|
Range ability |
100:1 |
|
Leakage |
ANSI Class IV, Bubble tight |
