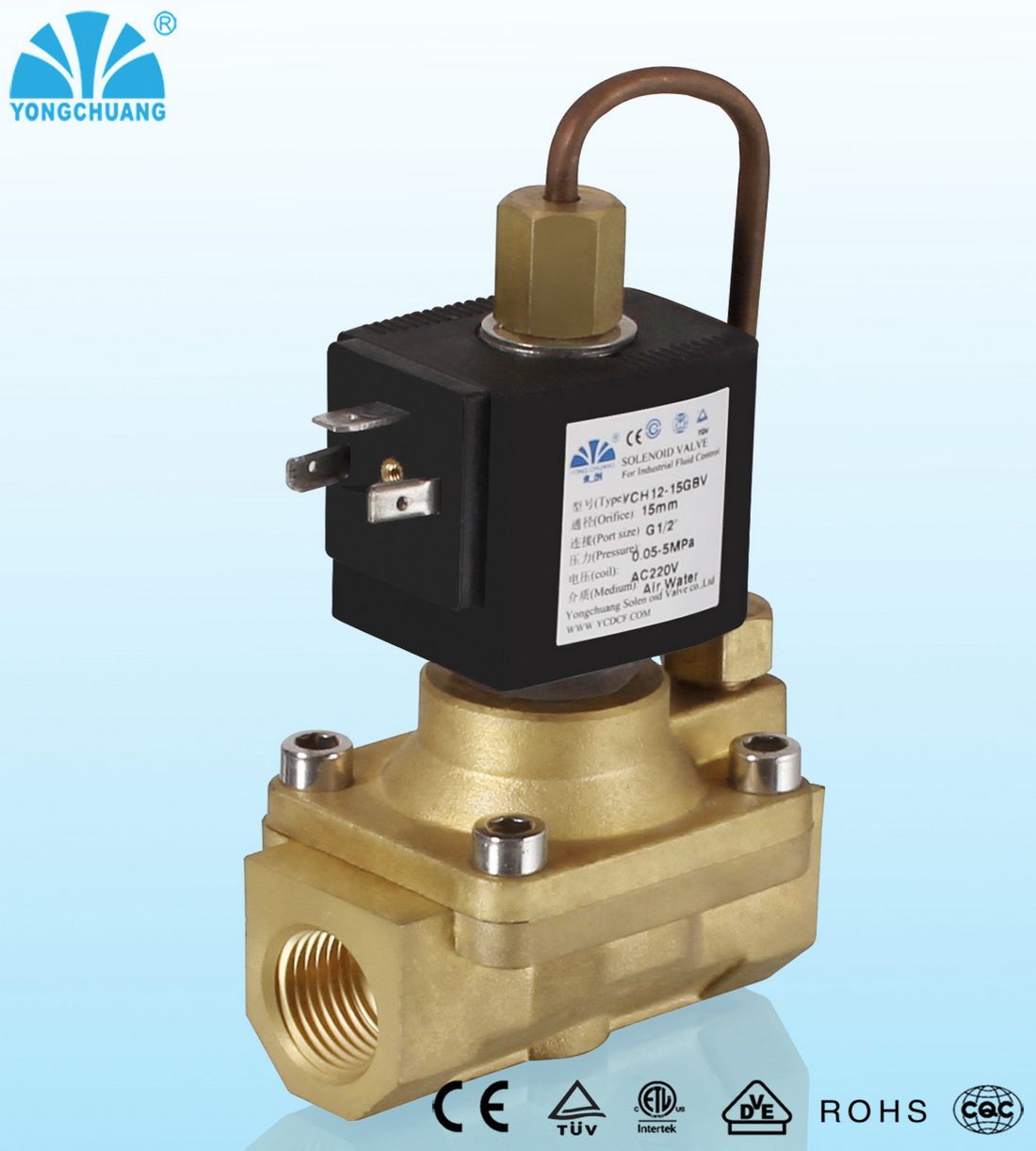

YCH12 Series
High Pressure Diaphragm Pilot Operated
Normally open
Characteristic: 1. High pressure solenoid valve with pilot operated diaphragm construction for
Compress air machine, injecting plastic machine
2. With PAPKER seals to improve the quality
Medium: Hot Water, Compressed Air, Water, Oil
Temperature: VITON Seal: -10 to 150
Pressure: YCH11: 0.03MPa~ 5.0MPa NC
YCH12: 0.03MPa~5.0MPa NO
Port Size: 3/8'', 1/2'', 3/4''
Port Thread: BSPP, BSPT, NPT, FLANGE
Orifice(mm): 15
Voltage: DC- 12V, 24V
AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Tolerance: +/-10%
Coins: S91B, 22VA(AC), 17W(DC), IP65, 100%ED
NASS COIL 0543 on request
Material: Body- Brass / SUS304
Seal- PU
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop - Stainless Steel 430F
Springs - SS304
Shading Rings - Stainless Steel304
EXAMPLE: YCH11 15 GBP S91B, YCH11 SERIES, N. C, 1/2''G, . 15MM ORIFICE, BRASS BODY, PU SEAL, COIL S91B, AC220V, DIN
|
Valve Body |
Port size |
Orifice |
CV |
Min pressure |
Max pressure |
Seals Material |
Body material |
Coil |
|
AC(22VA) |
DC(17W) |
|
YCH1212xxx |
3/8" |
15 |
4.5 |
0.03MPA |
5.0MPA |
5.0MPA |
PU/ VITON |
Brass |
S91B |
|
YCH12120xxx |
1/2" |
15 |
4.5 |
0.03MPA |
5.0MPA |
5.0MPA |
S91B |
|
YCH12028xxx |
3/4" |
15 |
4.5 |
0.03MPA |
5.0MPA |
5.0MPA |
S91B |
Founded in 1998, Yuyao Yongchuang Solenoid Valve Co., Ltd. is a technical company specialized in designing and manufacturing solenoid valves, cylinders, flow meters, and heating air-conditioning control products. Our products have been widely applied in the automation of the fluid control.
We have three sales and service branches in Beijing, Guangzhou and Chengdu cities and our sales network covers more than 20 important cities. In 2000, our products merged into the North American market. Now, they have already expanded to different countries and regions in Europe, Southeast Asia and South America.
Since our establishment, we have been working with a clear aim ahead to provide high quality products and service to our clients. We have paid close attention to product development and innovation. From receipt of the firm order to release the items, we have serious procedure to control the quality, and offer the best service to our clients. There are specific persons in charge of providing technical expertise for quality problems and the quality control. There are procedures defining in process inspection and testing stages for the manufacturing process.
Concerning the global competition, we have import advanced equipment and invite many outstanding engineers to improve the product performance. According to the rough statistic, our total annual output is about 700, 000 valves. There are three production lines for industrial use valve, household appliances use valves and pneumatic cylinders.
Complied to ISO9001: 2000, we get the CE and TUV certificates and we can also offer high standard materials on the special request which conforms to our principles: Innovation, endless development; Individual solution for customer at best service; Attention to quality is one of our main guidelines.
We hope to develop the business of fluid control with more companies in the world, and we are convinced with our joint efforts the business will bring us a bright future.
