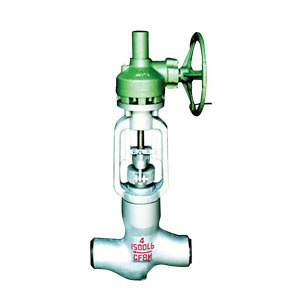

High Pressure Pressure Sealed Globe Valves
| Price: |
US $ 500-20000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Set |
| Pay Type: |
L/C,T/T,D/P |
Pressure Sealed Globe Valves-High pressure PSB globe valveStandard compliance:
1) Design and manufacture: ANSI B16.34
2) Test and inspection: API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5
5) Butt-welding end: ANSI B16.25
Specifications:
1) Size: 2" to 24"
2) Class: 600LB - 2500LB
3) Type: Pressure sealed bonnet, OS&Y, Rising Stem, Plug disc, Threaded or Welded seat ring
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, DUPLEX SS, MONEL, ALLOY 20 etc
5) Operation: Handwheel or gear
size |
2" to 24" |
pressure |
600LB to 2500LB |
material |
CARBON STEEL,ALLOY STEEL,STAINLESS STEEL |
Class 150/300/600/900/1500Design and manufacture: ANSI B16.34 and BS1873Test and inspection: API 598 . Face to face dimensions: ANSI B16.10 End flange dimensions: ANSI B16.5 Butt-welding ends: ANSI B16.25 Size: 2" ~ 16"Materials of body/bonnet and trim| Body/bonnet/Disc | WCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc. |
| Trim (Disc/body seat) | F6/F6, 304/304,304L/304L, HF/HF, F6/HF, Monel/Monel, 316/316, 316L/316L,Monel/HF and 316/HF etc. |
Type of operation: hand wheel, gear, electric or pneumatic actuator etc. Standard materials of parts| No. | Parts | Materials |
| 1 | Body | ASTM A216 WCB |
| 2 | Seat ring | A105 + 13CR |
| 3 | Disc | ASTM A216+13CR |
| 4 | Disc nut | ASTM A182 F6a |
| 5 | Stem | ASTM A182 F6a |
| 6 | Gasket | Stainless steel and graphite spiral wound |
| 7 | Backseat bushing | ATM A182 F6 |
| 8 | Bonnet | ASTM A216 WCB |
| 9 | Bonnet bolt | ASTM A193 B7 |
| 10 | Bonnet nut | ASTM A194 2H |
| 11 | Stem packing | Graphite |
| 12 | Gland | ASTM A182 F6 |
| 13 | Gland flange | ASTM A216 WCB |
| 14 | Gland eyebolt | ASTM A193 B7 |
| 15 | Gland nut | ASTM A194 2H |
| 16 | Stem nut | ZCuAl10Fe3 / A394 D2 |
| 17 | Handwheel | Ductile iron |
| 18 | H.W.Lock Nut | ANSI 1020 |
Dimensions (in mm & inch) and weightClass 150| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| NPS | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
| L-L1(RF-BW) | 203 | 216 | 241 | 292 | 356 | 406 | 495 | 622 | 699 | 787 | 914 |
| L2(RTJ) | 216 | 229 | 254 | 305 | 368 | 419 | 508 | 635 | 711 |
|
|
| H(OPEN) | 380 | 435 | 465 | 530 | 580 | 650 | 760 | 860 | 1000 | 1050 | 1150 |
| W | 200 | 250 | 250 | 300 | 300 | 350 | 400 | 500 | 600 | 600 | 750 |
| RF (Kgs) | 22 | 30 | 37 | 61 | 90 | 110 | 168 | 238 | 410 | 450 | 636 |
| BW (Kgs) | 19 | 27 | 34 | 51 | 75 | 88 | 146 | 215 | 370 | 400 | 550 |
Class 300| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| NPS | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
| L-L1(RF-BW) | 267 | 292 | 318 | 356 | 400 | 445 | 559 | 622 | 711 | 838 | 864 |
| L2(RTJ) | 283 | 308 | 333 | 371 | 416 | 460 | 575 | 638 | 727 |
|
|
| H(OPEN) | 425 | 465 | 530 | 610 | 695 | 790 | 870 | 1040 | 1140 | 1200 | 1400 |
| W | 200 | 250 | 250 | 300 | 300 | 400 | 500 | 500 | 600 | 750 | 850 |
| RF (Kgs) | 27 | 40 | 53 | 80 | 130 | 155 | 240 | 340 | 495 | 650 | 850 |
| BW (Kgs) | 21 | 33 | 44 | 66 | 110 | 128 | 210 | 280 | 410 | 520 | 700 |
Class 600| DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| L-L1(RF-BW) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 |
| L2(RTJ) | 295 | 333 | 359 | 435 | 562 | 664 | 664 | 791 | 840 |
|
| H(OPEN) | 475 | 515 | 585 | 675 | 885 | 945 | 1040 | 1280 | 1350 | 1550 |
| W | 250 | 250 | 300 | 350 | 450 | 500 | 600 | 750 | 850 | 960 |
| RF (Kgs) | 40 | 57 | 72 | 121 | 250 | 450 | 700 | 900 | 1115 | 1480 |
| BW (Kgs) | 36 | 45 | 61 | 97 | 222 | 356 | 588 | 800 | 900 | 1100 |
Class 900| DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| L-L1(RF-BW) | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 |
| L2(RTJ) | 371 | 422 | 384 | 460 | 613 | 740 |
|
|
|
|
| H(OPEN) | 600 | 660 | 665 | 800 | 1015 | 1145 | 1360 | 1610 | 1650 | 1800 |
| W | 300 | 350 | 350 | 500 | 600 | 600 | 750 | 850 | 960 | 960 |
| RF (Kgs) | 87 | 130 | 122 | 182 | 434 | 730 | 1120 | 1630 | 2000 | 2650 |
| BW (Kgs) | 80 | 115 | 102 | 167 | 385 | 620 | 950 | 1410 | 1760 | 2350 |
Class 1500| DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| L-L1(RF-BW) | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 |
| L2(RTJ) | 371 | 422 | 473 | 549 | 711 | 841 |
|
|
|
|
| H(OPEN) | 600 | 660 | 770 | 850 | 1145 | 1345 | 1510 | 1870 | 1950 | 2200 |
| W | 300 | 350 | 500 | 500 | 600 | 600 | 750 | 850 | 960 | 1100 |
| RF (Kgs) | 87 | 130 | 250 | 435 | 540 | 970 | 1520 | 2200 | 2700 | 3580 |
| BW (Kgs) | 80 | 115 | 220 | 385 | 450 | 790 | 1320 | 1960 | 2400 | 3250 |
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B.Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
| Prod Model: |
high pressure psb globe valve |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2" to 24" |
| Body Material: |
Carbon Steel,Alloy Steel,Stainless Steel |
| Ending Type: |
Butt Welded |
| Pressure: |
600lb to 2500lb |
| Trim: |
1#,8#,5#,10#,12# |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Standard: |
ANSI |
| Material: |
Cast Steel |
| Sealing Form: |
Pressure Sealed Bonnet |
| Application: |
Pressure Sealed |
