Packing:cartoons

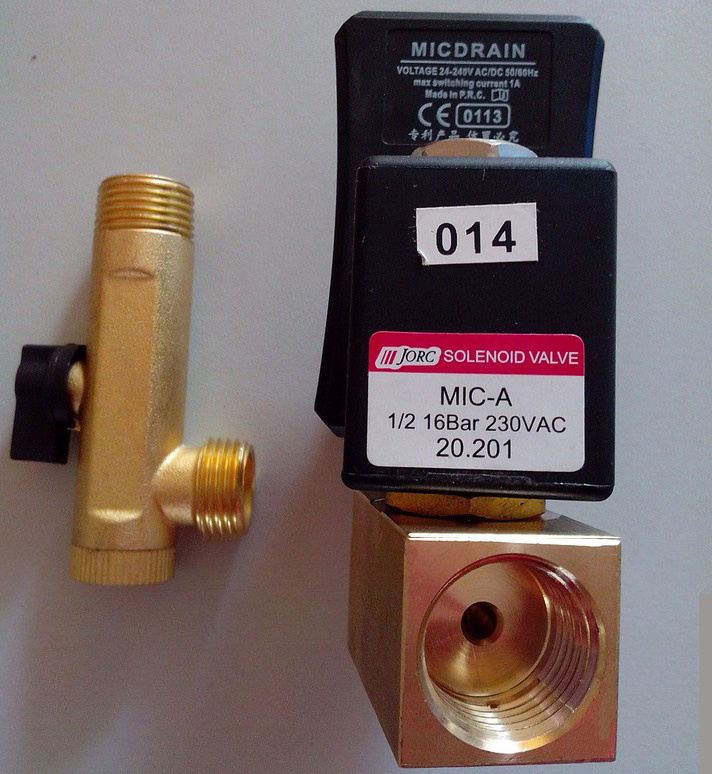

Function:general electron drain valve match analogous circuit solid state electron timer with the solenoid valve to realize discharging the condensed water of compressed pneumatic system at fixed time automatically. electron drain valve widely be applied in compressed pneumatic system parts like filter, separator, dryer machine, gas tank, water drop foot and so on. Discharge time and interval time can be carried on adjustment according to different requirements.
Feature: High quality, low cost
One kind of model suits all applications, simple installment,completely automatic, exempts maintains
Interval time and discharge time can be adjustable and have test buttons
Pressure 16Bar, 40Bar, 60Bar,80Bar. Many kinds of voltages and connections to be chose
Entire stainless steel valve, explosion-proof valve to be chose
CE authentication, protection rank IP65, insulation grade H level
5.0mm large latus rectum direct-acting valve, fluorine rubber seal
Match ball valve filter, fission with drain valve, assumed L structure
External dimensions: 112×44×90mm, weight 600g
|
Valve |
MIC-A/B |
|
Species |
Two two straight valve |
|
In / out interface size |
1/2 "3/8" or 1/4" |
|
The maximum working pressure |
16Bar;40Bar;60Bar;80Bar |
|
Minimum / maximum ambient temperature |
2°C/55°C |
|
The maximum temperature of the medium |
90°C |
|
The valve body |
Forging brass, flow aperture 5.0mm (all stainless steel valve can special order) |
|
Insulation |
Heat group H |
|
Protection grade |
IP65 |
|
Voltage |
24-230V AC/DC(voltage 380VAC can special order) |
|
Voltage range |
+/-10% |
|
Installation position |
Arbitrarily |
