Product Description
Regis's all-new directional valves are available in two-way, three-way configurations in port sizes from M5 to 1/2". Select either a direct-acting poppet or solenoid-controlled pilot operated balanced spool design. Spool valves are body ported but can be bolted to a parallel circuit manifold.
These electronic valves offer high flow in a small package, and are constructed of aluminum, stainless steel and thermoplastic materials. The four-way valves are also available in 3 position versions with either pressure center, closed center or exhaust center spool options.
Materials: Aluminum, Stainless Steel, Thermoplastic
Maximum Pressure: Vacuum to 150 psig (direct acting only); 20 to 125 psig (spool valves)
Response Time: Less than 20 ms
Mounting: Manifold standard.
Manual Override: Locking or non-locking
Electrical Connection: DIN terminal with LED Indicator or Wire Lead
Temperature Range: 0 to 65°C (32° to 150°F)
Seals: NBR

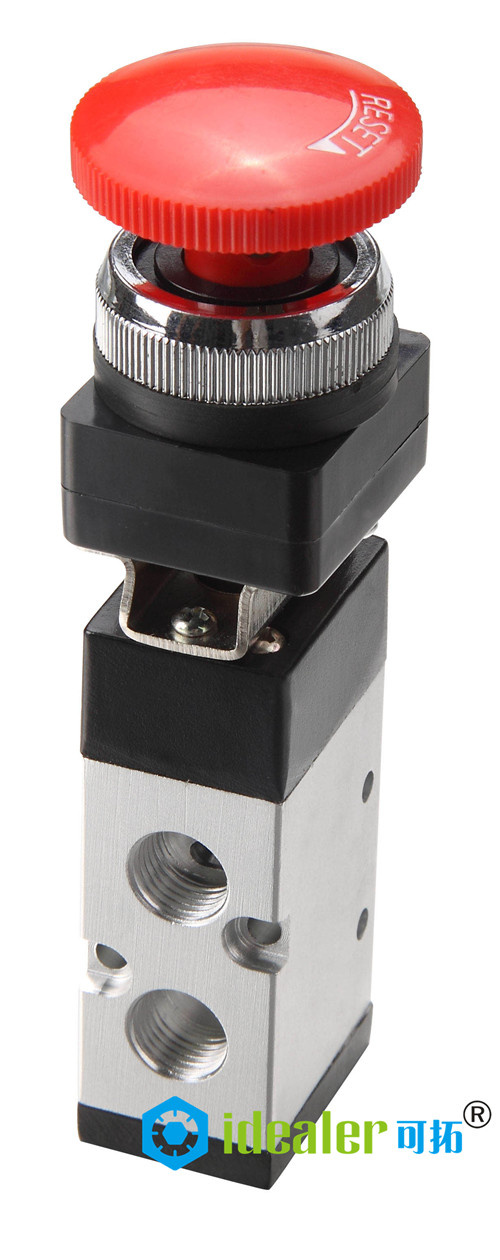

| Example | MSV86321R |
| Meanings | Model | Code | position and way number | Port Size | Control unite type |
| Explain | MSV:Machanical valve | 86 series:
98 Series | 32 : 3/2 way
52 : 5/2 way | 1 :G1/8"
2 :G1/4" | blank : basic type
R : Rolier lever
TB : turning selector
LB : lever selector
PB : Push boutton
PP : plat round button
PPL : convex round button
EB : stop lock button |
|
|
|
|
| Model | MSV86321 | MSV86522 | MSV98322 |
| Fluid | AIR |
| position number | 3/2way | 5/2way | 3/2way |
| Operating Pressure | 0-0.8mpa | 0-0.8mpa | 0-0.8mpa |
| Temparature | 0~60 |
| effective section area | 12.0MM2 | 16.0MM2 | 16.0MM2 |
| port connection | G1/4 | G1/4 | G1/4 |
Ideal-bell originated in 2007 as a professional manufacturer of pneumatic components. We owning and operating "IDEALER" trademark fittings, but also is experienced in ODM & OEM service.
We offer a wide range of products to satisfy your requirements. Such as Push in fittings, Pneumatic Cylinders, Solenoid valves, Air source Unit, Air Tube, Muffler & air gun etc., which are widely used in automotive industry, auto-machinery, environmental protection, medical equipments, construction, and packaging industries and so on.
Ideal Bell production plant locates in Panan Industrial park, Jinhua, which is 2 hours away from Ningbo port. It covers 10000meters, equipped with dust-free work shop & auto assembly lines & modernized laboratory, annual production capacity reaches 25 million PCS. Quality is the priority of Ideal bell, cost efficiency constant! In order to earning that, we passed ISO9001: 2008 to standardize our production procedure and quality control system, also getting CE, SGS, etc. Certifications. Our goods are well recognized in world market, such as Europe, South America, North America, Asia, Middle East, etc.
To work better with our customers, we will continually develop new and innovative solutions to meet your needs. Our experienced staff and high equipped facility enabled us to support you competitive on your market!
Please try to ask us for a no obligation quote, you won't be disappointed!
-Problem-Solving Salespeople to meet your needs
-24 Hours we're there when you need us
-Work with you to satisfy your customers
- Most competitive Pricing, high & stable products performance
-Powerful technology team, give you individual technical support
- 100% test before delivery
-Conferencing for quick resolution of urgent issues
-We are happy to add stock lines to suit your requirements
