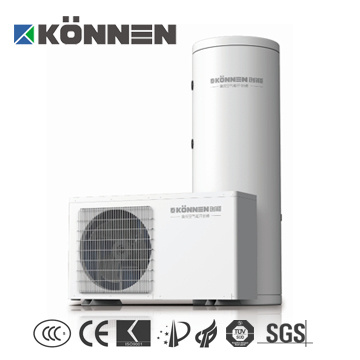

Home use air source Heat Pump with Panasonic compressor and R410a refrigerant,
Japan Saginomiya electronic expansion valve,
Wilo or Xinhu water pump built-in,
LCD controller,
Chines famous brand Shell & coil condensor,
18 months warranty
Strong R&D team with 25HP complete laboratory.
Testing all the heat pump one by one.

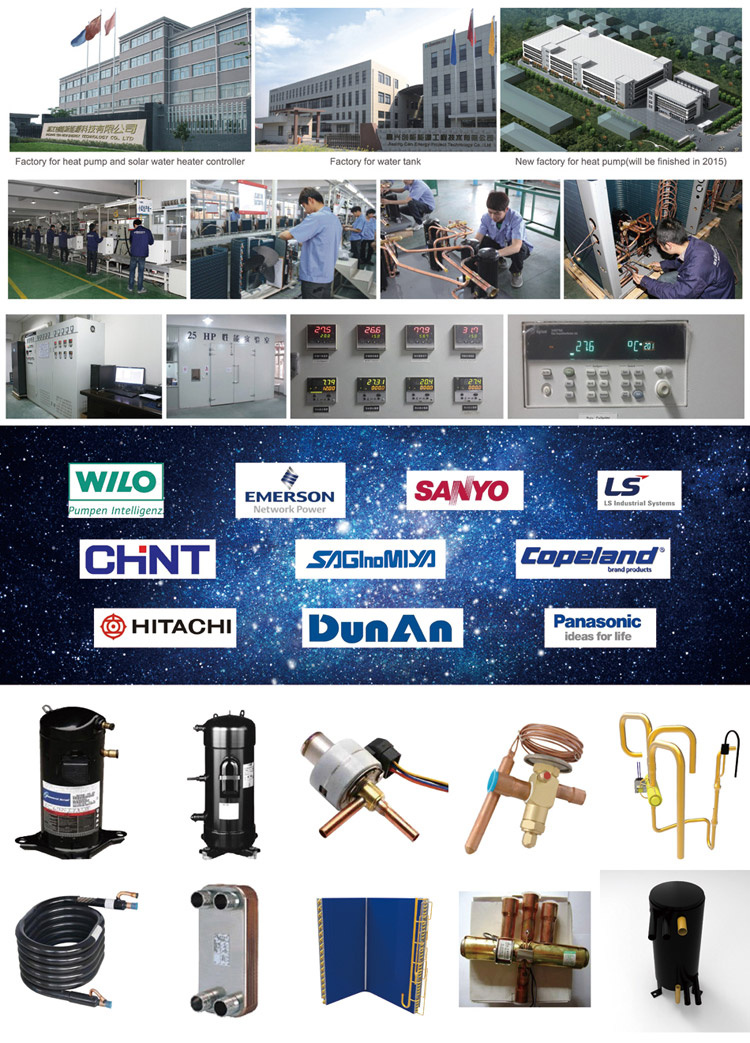

Own professional home use water tank factory, OEM for famous companies in China.
| Air Source Heat Pump Domestic Type (circulation type) |
| Model Parameter | KXRS-3.5 IH | KXRS-5.0 IH | KXRS-7.0 IH | KXRS-9.0 IH |
| Rated Heating capacity (KW) | 3.5 | 5 | 7 | 9 |
| Rated outlet hot water quantity (L/H) | 75 | 107 | 150 | 193 |
| Outlet water rated temp ( Degrees C ) | 55 |
| Outlet water max temp ( Degrees C ) | 60 |
| Electricity Parameter | Rated power (KW) | 0.9 | 1.24 | 1.71 | 2.26 |
| Rated current (A) | 4.1 | 5.6 | 7.8 | 10.3 |
| Power supply | 220V~/50HZ |
| Max power (KW) | 1.25 | 1.58 | 2.25 | 2.72 |
| Max current (A) | 5.7 | 7.2 | 10.3 | 12.4 |
| Refrigerant | R410a(R134a/R407c/R22) |
| Dimensions mm | 950*360*560 | 1010*360*630 |
| Weight KG | 40 | 60 | 67 | 72 |
| Waterproof grade | IPX4 |
| Defend electric shock grade | GRADE 1 |
| Noise Db | 50Db | 53Db |
| Compressor | Panasonic |
| Testing Conditions | Ambient Temperature | Water Inlet/Outlet Temp. |
| Dry Bulb Temp. | Wet Bulb Temp. | Water Inlet Temp. | Water Outlet Temp. |
| 20°C | 15°C | 15°C | 55°C |
| |
| Water Tank |
| Specifications | 150L | 200L | 300L | 500L |
| Pipe size (mm) | 2 x DN15 | 2 x DN20 |
| Water Tank Size | φ470 x 1390 | φ520 x 1535 | φ620 x 1455 | φ700 x 1775 |
| Installation | floor type |
| Concurrent User | 3-4 people | 4-5 people | 6-8 people | 10-13 people |
Zhejiang Cen New Energy Technology Co., Ltd. Our company is still developing more styles of products. We take the technology as the core\regard the quality as life\treat the user as god. We dedicated to provide you with the highest cost-effective energy-saving products\high-quality engineering design and meticulous transformation of after-sales service!
Our main products as follows:
Air-source heat pump unit for household and commercial
Ground source heat pump unit
Water source heat pump unit
Combine cooling\heating and hot water heat pump unit
Swimming pool heat pump unit
Heat recovery of centre air-conditioner so on energy-saving products, our products passed prove ISO9001\CCC\CE certificate.
Product features: Reasonable structure\stable quality\reliable and nice.
We consistently insist on the sane business strategy. We don't demand the biggest, only best. Take the most serious attitude, do the most professional thing. Let us enhance friendship with large clients and sincere cooperation, create brilliance!
