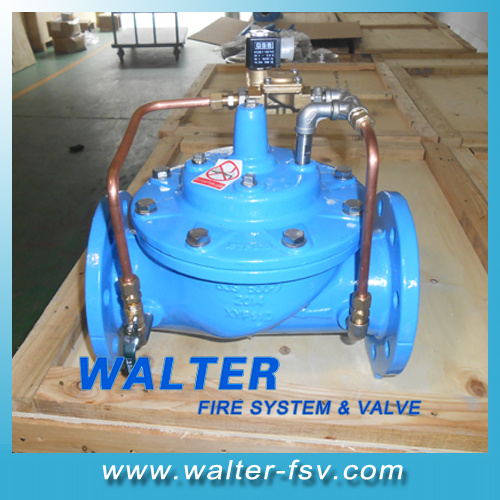

Solenoid Control Valve is an on-off control valve that either opens or closes upon receiving an electrical signal to the solenoid pilot control. This valve consists of a main valve and a two-way solenoid valve that alternately applies pressure to or relieves pressure from the diaphragm chamber of the main valve. It is furnished either normally open (de-energized solenoid to open) or normally closed (energized solenoid to open).
Industrial uses for the solenoid control valve are many and include accurate control of process water for batching, mixing, washing, blending or other on-off type uses.
Normal Opened and Normal Closed Type.
1- Body/Bonnet: GGG40/50 or Staninless Steel
2- Seat/Stem/Spring: SS304
3- Nut: SS/Bronze
4- DISC Guide: SS/Brass/Bronze
5- Diaphragm: Nylon + EPDM/NBR
6- Epoxy Resin coating internal & external, thickness above 300 micron
7- Work pressure: PN10/16/25; Size range: 2" to 24"
8- Design: BS EN1567, EN 1074-5, EN 1092-2, ISO 7005-2
WALTER-FSV Company also produce and supply Float Control Valve, Pressure Reducing Valve, Slow Control Valve, Solenoid Control Valve, Pump Contrl Valve. Hydraulic control valve solenoid, Water Solenoid Control Valves
