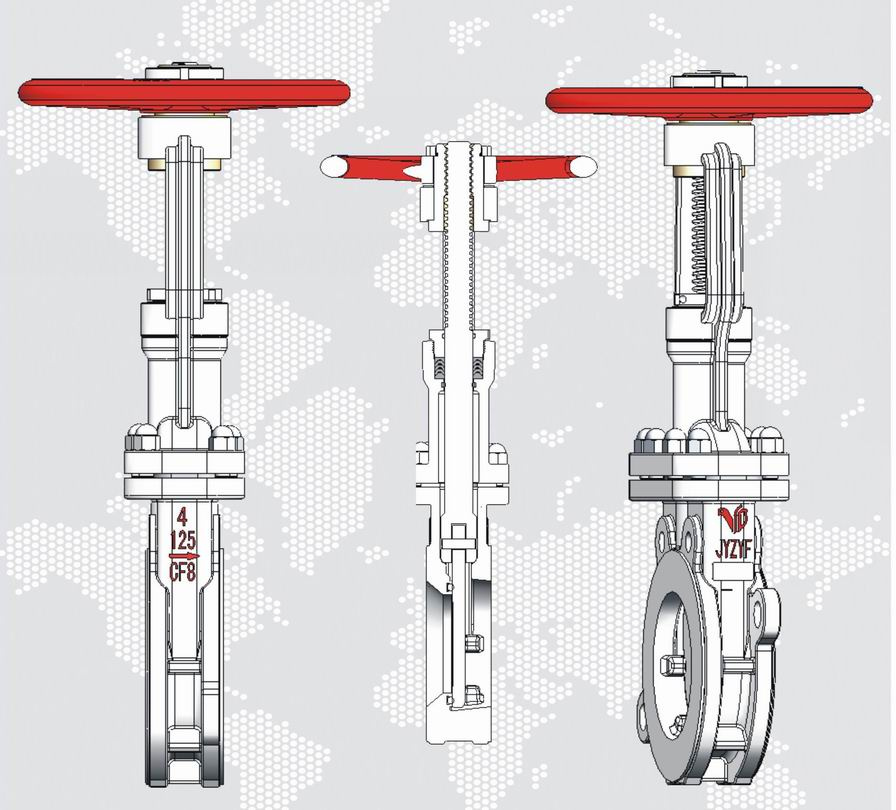

Innovative slurry gate valve by Brad Industry is our unique creature based on existing valves for paper pulp at home and abroad.
Product Features:
1. Valve structure is thin type one way seal. It has advantages of compact structure, convenient operation, small volume, light weight and easily transportation, meanwhile, it also can reduce cost, lighter pipe load and keep nice shape of pipe and valve.
2. Flow-through no-groove sturcture solve serious current valves problems at home and abroad, such as easy sticky, scaring and locking materials because of its groove.
3. Seal face in the seat is in hidden place to avoid to be damaged by the scouring directly by medium in the flow way. It upgrade seal grade and extend seat seal service life.
4. Seat seal face is designed to be renewable seal structure with easy installation and quick-detachment considering special medium.
5. Quick-detachable and renewable seat seal ring is made of our independant intellectual property rights-Nanometer ceramic plastic compound materials with anti-scouring, anti-wearing, heat resistance and anti-aging.
6. Plates all round have no seal packing and packing gland, which clear up plates friction because of gravity of its seal packing, and greatly longer service life of plate and stem as well as save labor intensity.
|
Nominal pressure(Mpa) |
1.0(125LB) |
Nominal Diameter(mm)(In) |
80~1000(3" ~40" ) |
|
Shell test(Mpa) |
1.5 |
Seal test(Mpa) |
1.1 |
|
Working temperature |
-40° C-200° C |
Suitable medium |
pulp, mud fluid, waste water |
