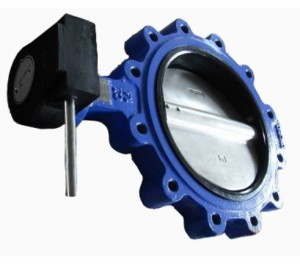

Iron Casting Wafer Lug Type Butterfly Valve

Iron Casting Wafer Lug Type Butterfly Valve
Price: US $ 10/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
 (1). the body of hight strength and high safety factor so that the valve can with stand high pipeline pressure.
 (2).the overall curing high-performance seat can effectively resist earing and defomation.
 (3).Long service life.Standing the test of tens of thousands opening/closing operations.
 (4).Wide selection of materials,applicable,applicable for various medium
 2.Technical Data:
 (1) Nominal Diameter DN(mm): 50(2'')~900(36'')
 (2) Nominal Pressure PN(MPa): 1.0~4.0
 (3) Testing Pressure PN(MPa): Shell: 1.5~6.0   Sealing: 1.1~4.4
 (4) Suitable Mediums: Fresh water,Sewage,Sea Water,Air,Steam,Food,Medicine,Oils,Acid,etc.
 (5) Working Temperature:-100~+460°C
3.Body Meterial could be:
 Cast lron / Cast steel / Ductile lron / stainless steel
Prod Model: D373
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard: Standard
Size: Dn50-Dn1000
Certificate: ISO9001, CE, RoHS
Delivery Time: in 45days
Warranty: 18months
Connection Form: Wafer
Work Pressure: Mid-Pressure (',2.5mpa< Pn <6.4mpa)
Structure: Centre Sealing
Seal Form: Force Sealed
Working Temperature: Medium Temperature (',120??C
Application: Water Industrial Usage
Material Of Seal Surface: Soft Sealed
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.

We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
