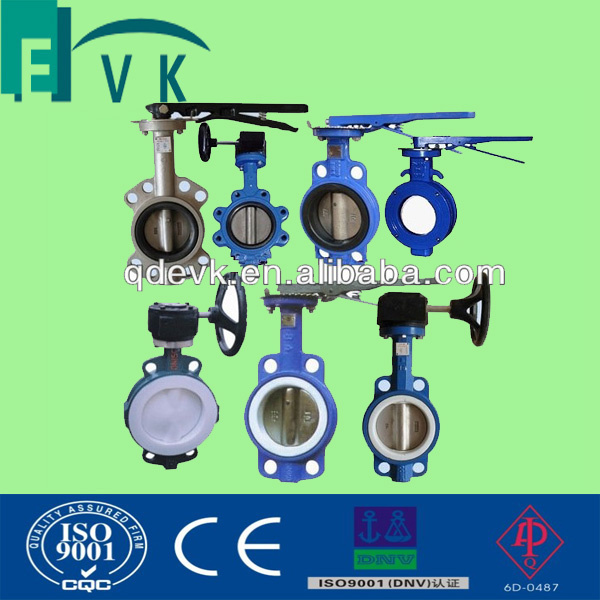

JIS 10k Lug Type Cast Iron Butterfly Valve
| Price: |
US $ 12/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
？Features:
1.Small in size and light in weight. Easy installation and maintenance. It can be mounted wherever needed.
2.Simple and compact construction, quick 90 degree on-off operation.
3.Flow curve tending to straight line. Excellent regulation performance.
4.Long service life. Standing the test of thousands opening/closing operation.
5.Wide selection of materials, applicable for various media.
？
Application:
1.Face to face is according to BS/DIN/ANSI/JIS Stainless etc
2.Flange drilled is according to BS/DIN/ANSI/JIS Stainless etc.
Components:
1.Body:Cast iron or Ductile iron
2.Top shaft:Stainless steel or brass
3.Bottom shaft:Stainless steel or brass
4.Disk:Stainless steel,Brass,Ductile,iron
5.Rubber sleeve:Rubber,NBR,EPDM
6.Sealing ring:Rubber,NBR,EPDM
7.Steand ring:Stainless steel or brass
8.Expanding ring:Stainless steel or brass.
Our customer:
Packing:
Our factory :
|
Item |
Part Name |
Material |
1 |
Body |
Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200; Ductile Iron:ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15; Stainless Steel: ASTM A351 CF8, CF8M; Carbon Steel: ASTM A216 WCB |
|
2 |
Stem |
Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416; |
|
3 |
Taper Pin |
Stainless Steel: ASTM A276 Type 304, Type 316; EN 1.4501; |
|
4 |
Seat |
NBR, EPDM, Neoprene, PTFE, Viton; |
5 |
Disc |
Ductile Cast Iron (Nickel plated):ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, Stainless Steel:ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501; AL-Bronze: ASTM B148 C95400; |
|
6 |
O-ring |
NBR, EPDM |
|
7 |
Rushing |
Polymer water-proof materials ,Nylon, Bronze; |
|
8 |
Pin |
SS201 |
|
| Prod Model: |
Butterfly |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure: |
Pn10 Pn16 Class 125/150 /5k 10k |
| Material: |
Casting |
| Size: |
Dn40-Dn2000 |
| Place Of Origin: |
Tianjin China (Mainland) |
| Color: |
Blue |
| Standard Or Nonstandard: |
Standard |
| Power: |
Manual |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Wafer |
| Seal Form: |
Auto Sealed |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Water Industrial Usage |
| Structure: |
Wafer Type, Butterfly |
EVK FITTING GROUP Co., Ltd (China) is a leading group, engaged in manufacturing valve, pipe fitting and flange, affilicating Qingdao EVK Industrial Co., Ltd, Yantai EVK Valve Manufacturing Co., Ltd, Hebei EVK Pipe Fitting Co., Ltd and Tianjin EVK Flange Fabrication Co., Ltd. EVK Group has more than 2000 staffs and covers around 150000 square meters totally.
Main production includes:
Valve: Cast iron/Ductile iron/Cast steel/Forged steel Valve( DIN3352 Resilient seated F4/F5 Gate valve, DIN3352 F4/F5 metal seated Gate valve, BS5163/BS5150/AWWA C509 Gate valve, API600 Gate valve, Wafer/Lug/Double flange butterfly valve, DIN/MSS Globe valve, Wafer/swing check valve, Y-strainer, JIS marine valve)
Pipe fitting: Carbon steel butt welding pipe fitting(Elbow, Straight and reducing tee, concentric and eccentric reducer, cap), Forged steel pipe fitting(Elbow, Tee, Reducer), Malleable iron pipe fitting.
Flange: Carbon steel and stainless steel forged flange(Flat flange, welding neck flange, slip on flange, blind flange).
Autoparts: Brake shoes, Brake pads, Brake discs, Brake drums.
We exported to more than 25 countries in the world, our main customers have CRANE, WALWORTH, OARI, etc. Our company was awarded with ISO9001 certificate and CE for our valve, pipe fitting and flange products.
Our blief is "Do friend first, Do business second", we welcome all friends from all over the world to do business together!
