What is a Thermostatic Radiator Valve?
A thermostatic radiator valve (TRV) controls the temperature of a room by determining the flow of hot water to a radiator. Fitted to radiators on an individual basis, the valves allow you to vary temperature according to room, so if you have a south-facing room which receives a lot of sunlight, a TRV would limit the flow to that particular radiator when the rest of the house needs heating.
How Does it Work?
When a room drops below a specified temperature, a wax plug expands or contracts, controlling a pin connected to a valve. When the valve is triggered, it will open to allow warm water to flow into the radiator. When the room has reached the desired temperature, the valve will gradually close.
Valves gauge the temperature of a room using the air directly around them so it's imperative to ensure that they are not covered by curtains or any other material. They need an uninhibited passage of air flow to allow them to effectively read the temperature of the room.

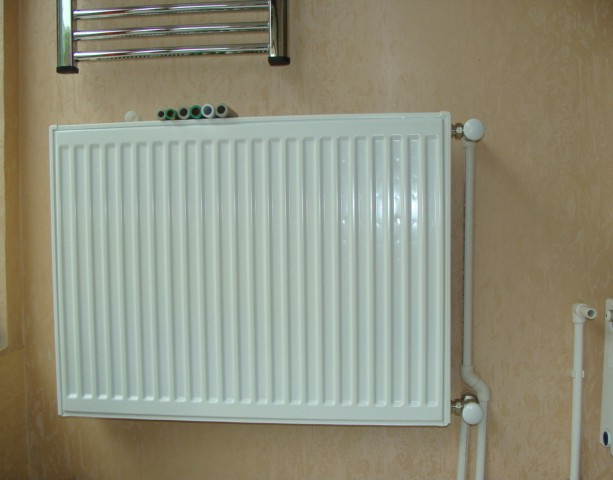

Application :

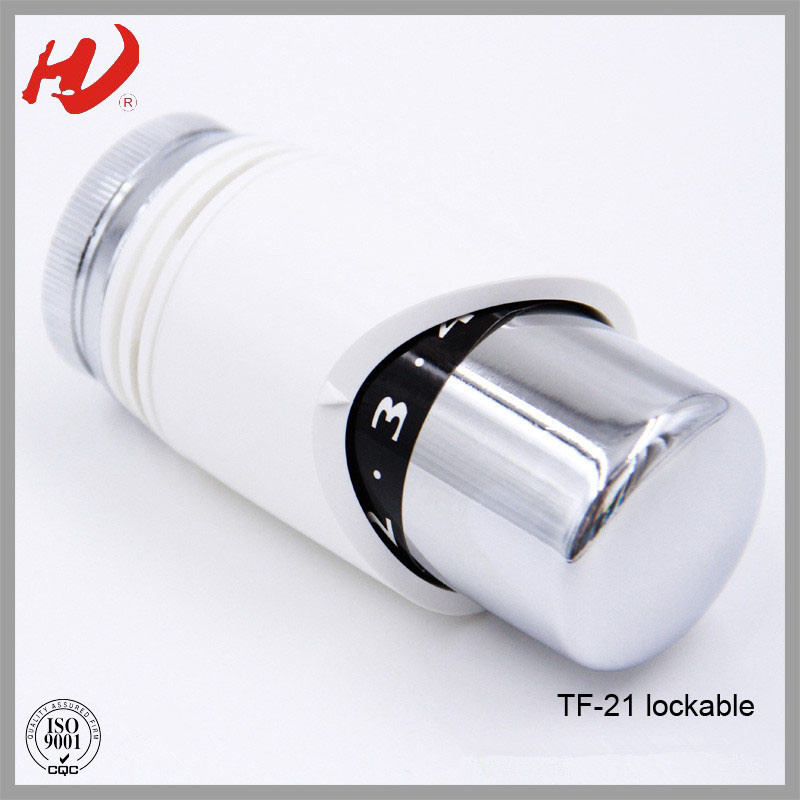

Model |
TF-21 |
Color |
white and chromed |
Sensor |
built-in liquid sensor |
Control range |
6- 28 degree C |
Max.admissible static pressure |
1.0MPa |
Max.admissible differentital pressure |
0.1MPa |
Connection |
M30X1.5 |
Closing dimension |
12.4 mm |
Antifreeze position |
6 degree C |
|
|
Packing |
100 pcs/CTN |
G.W. |
16 KG |
Wuxi Huishan Automatic Controller Co. Ltd., was founded in 1988. We are located in Wuxi city, which is 40 mins Far away From Shanghai by train. Financial and commercial center of China. After 20 years development, we have set up a new 8400m2 standard moredn workshop, equipped with advanced machinery and testing laboratory which enable us to be a professional manufacturer for temperature control porducts. 35% of our employees are mechanic and engineer and we are ISO9001: 2000 approved.
After 20 years continuous of developing, we have been producing high quality of room thermostats, thermostatic valves, thermostatic heads, liquid sensor for TRV, temperature and pressure safety valve, industrial thermostats, pressure switches, flow switches etc. We produce strictly according to the standard with a result that many products are CQC, EN215, CE, VDE, RoHS approved. With over 10 years export experience, we expanded our market to Europe, Middle East, North America, South America, and some of our customers are famous for international companies. We also offer OEM and ODM services to our customers, based on our strong technical force. For the same reason our customers are satisfied with our quality and service. Our production capacity is over than 3 million piecess. Looking forward to developing the market and technology togther with our overseas partners, and build up a mutual prosperous future.
