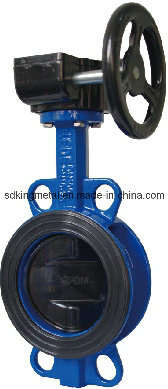

Feature
1. Long service life with reliable seal and without frequent main tenance
2. Pressure loss
Too much pressure loss will bring increased cost of correlative energy
Butterfly valve have flow characteristics three times better than globe valve, and about 75%
Of a same size gate valve
3. Multi-Function
Butterfly valve can be used for on/off service and throttling, They are superior in Multi-function
As compared to gate or globe valves. Butterfly valve can be widely used in chemical field due
To trim options and choice of elastomeric liner.
4. Weight
Butterfly valve have feature of light in weight and small in size, for example, weight and size of
A 10'' butterfly valve are 1/9 and 1/6 of a 10'' gate valve. So butterfly valve is easy to install and
Save cost of piping system.
5. Bubble Tight
Butterfly valve with resilient seat design can be bubble tight as compared to metal seated gate
Or globe valves.
6. Easy of operation
Butterfly valve offer 90-degree open to close.
7. Butterfly valves is approximate 35-40% cost of a same size gate valve. Also low
Installed cost than gate valve.
8. Maintenance
Properly installed butterfly valves are self cleaning and are less susceptible to failure due to
Trash material in pipe.
9. Delivery Time: 25 days after order conformed.
10. Standard: EN, MSS, API, AWWA, BS
11. Operation: Level operation
12. Body: Cast iron, stainless steel 304/316, aluminum bronze
13. Painting: PTFE coating, nylon painting
14. Stem: CS, SS416, SS410, SS304, SS431
15. Seat: NBR, EPDM, PTFE
16. Pressure: PN10, PN16
17. Size: 2''-24''
18. Packaging: Export poly wooden cases, or as per customers' requirements
19. Payment: By L/C, T/T and D/P
| Technical Specification |
|
|
|
|
|
|
|
|
|
|
|
|
| Nominal Diameter | DN40-DN1200 | DN40-DN800 | DN40-DN600 |
|
|
|
|
|
|
|
|
|
|
|
|
| Nominal Pressure | 1.0MPa | 1.6MPa | 2.0MPa |
|
|
|
|
|
|
|
|
|
|
|
|
| Test Pressure on Shell | 1.5MPa | 2.4MPa | 3.0MPa |
|
|
|
|
|
|
|
|
|
|
|
|
| Test Pressure on Seal | 1.1MPa | 1.76MPa | 2.2MPa |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Service Temperature |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1-NR | -20°--85° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2-HYPALON | -18°--135° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3-EPDM | -30°--110° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4-NEOPRENE | -7°--93° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5-NBR | -12°--82° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6-WRR | -10°--50° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7-VITON | -23°--150° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8-HRR | -20°--150° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9-PTFE | 10°--150° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Outline and connection dimension |
| Nominal DN | H1 | H2 | H3 | L | Φ1 | Φ2 | Φ3 | Φ4 | n-M | n-Φd |
| mm | inch | ANSI B16.1 | GB9119-88 | ISO 2084 | BS4504 | DIN |
| 50 | 2'' | 76 | 162 | 32 | 45 | 12.7 | 57.15 | 120.65 | 125 | 125 | 125 | 125 | 88 |
| 4-Φ18/19 |
| 65 | 2 1/2'' | 89 | 175 | 32 | 48 | 12.7 | 57.15 | 139.7 | 145 | 145 | 145 | 145 | 108 |
| 4-Φ18/19 |
| 80 | 3'' | 95 | 181 | 32 | 49 | 12.7 | 57.15 | 152.4 | 160 | 160 | 160 | 160 | 118 |
| 4-Φ18/19 |
| 100 | 4'' | 114 | 200 | 32 | 55 | 15.9 | 69.85 | 190.5 | 180 | 180 | 180 | 180 | 156 |
| 4-Φ18/19 |
| 125 | 5'' | 127 | 213 | 32 | 58 | 19 | 69.85 | 215.9 | 210 | 210 | 210 | 210 | 181 |
| 4-Φ18/22.4 |
| 150 | 6'' | 140 | 225 | 32 | 59 | 19 | 69.85 | 241.3 | 240 | 240 | 240 | 240 | 210 |
| 4-Φ22/22.4 |
| 200 | 8'' | 177 | 260 | 45 | 64 | 22.2 | 88.9 | 298.45 | 295 | 295 | 295 | 295 | 260 |
| 4-Φ22/22.4 |
| 250 | 10'' | 203 | 292 | 45 | 70 | 28.6 | 88.9 | 361.95 | 350/355 | 350/355 | 350/355 | 350/355 | 321 |
| 4-Φ22/25.4 |
| 300 | 12'' | 242 | 337 | 45 | 80 | 31.7 | 107.95 | 431.8 | 400/410 | 400/410 | 400/410 | 400/410 | 384 |
| 4-Φ22/25.4 |
| 350 | 14'' | 267 | 368 | 45 | 80 | 31.7 | 107.95 | 476.25 | 460/470 | 460/470 | 460/470 | 460/470 | 400 |
| 4-Φ22/28.4 |
| 400 | 16'' | 298 | 400 | 51 | 90 | 33.34 | 158.75 | 539.75 | 515/525 | 515/525 | 515/525 | 515/525 | 465 |
| 4-Φ22/28.4 |
| 450 | 18'' | 318 | 422 | 51 | 109 | 38 | 158.75 | 577.85 | 565/585 | 565/585 | 565/585 | 565/585 | 514 |
| 4-Φ26/31.8 |
| 500 | 20'' | 349 | 479 | 64 | 135 | 41.15 | 158.75 | 635 | 620/650 | 620/650 | 620/650 | 620/650 | 559 |
| 4-Φ26/31.8 |
| 600 | 24'' | 410 | 562 | 71 | 156 | 50.65 | 215.9 | 749.3 | 725/770 | 725/770 | 725/770 | 725/770 | 686 |
| 4-Φ30/35.1 |
| 700 | 28'' | 520 | 624 | 72 | 169 | 55 | 254 |
| 840 | 840 | 840 | 840 | 795 |
| 4-Φ30 |
| 800 | 32'' | 591 | 672 | 83 | 195 | 55 | 254 | 977.9 | 950 | 950 | 950 | 950 | 900 |
| 4-Φ30/41.1 |
| 900 | 36'' | 611 | 768 | 77 | 211 | 75 | 254/215.9 | 1086 | 1050 | 1050 | 1050 | 1050 | 1002 |
| 4-Φ33/28-Φ41 4-1/4-7 |
| 1000 | 40'' | 664 | 823 | 85 | 229 | 85 | 254 |
| 1160 | 1160 | 1160 | 1160 | 1111 |
| 4-Φ36 |
| 1200 | 48'' | 955 | 880 | 206 | 249 | 92 | 298 |
| 1380 |
|
|
|
| 4-M36 | 28-Φ39 |
| 1400 | 56'' | 991 | 1015 | 226 | 390 | 105 | 298 |
| 1590 |
|
|
|
|
| 36-Φ42 |
| 1600 | 64'' | 1116 | 1145 | 199 | 457 | 120 | 365 |
| 1820 |
|
|
|
| 4-M45 | 36-Φ48 |
| Note:1. The numberator of Φ3 item is 1.0Mpa,the denominator is 1.6Mpa. |
|
|
|
|
|
|
|
|
| 2. The denominator n-d item is GB9119-98,ISO2084,BS4504,1.0Mpa,it suitable DIN standard system. |
|
|
|
|
|
|
|
|
| The denominator is the dimention of ANSI B16.1 |
|
|
|
|
|
|
|
|
| 3. The H2 dimensions may be changed into lengthened butterfly valve according to rquest of the user. |
|
|
|
|
|
|
|
|
