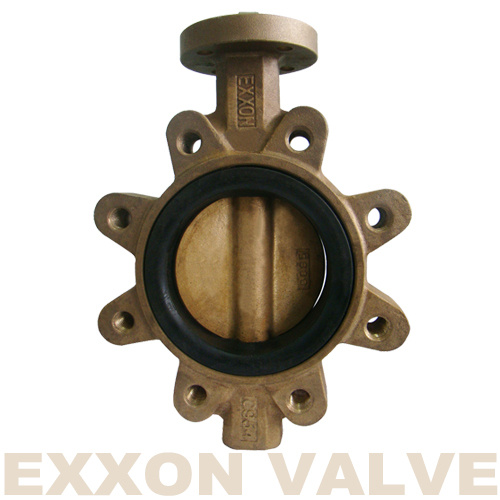

Lugged Type Aluminium Bronze Butterfly Valve
| Price: |
US $ 630/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
This general purpose soft seated butterfly valve has a fully rubber lined single piece body with a centric disc construction and is available in wafer lugged style body pattern to ensure precise location in pipe line. The body liner which also functions as the soft seat comes either in a replaceable version or an integrally bonded version and offers 100% bi-directional sealing against vacuum to rated pressures of PN 10 / PN 16 and fully rated to ANSI 150lb.
Materials Range:
Body: aluminium bronze.
Disc: aluminum bronze.
Stem: aluminum bronze.
Seat: EPDM
Actuator: bare stem type.
Design Features:
Without pin design for avoiding the leakage of pin holes;
High performance zero leakage saves wafter and energy;
Double tight sealing design for high pressure sealing;
Lugged or wafer design;
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Lug Support |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Water Industrial Usage |
Tianjin Exxon Valve Co., Ltd. Offers several styles of Rubber Lined Concentric Butterfly Valves, Resilient Seated Gate Valves and Soft Seated Dual Plate Check Valves to meet your requirements. We would like to help you choose the correct valve style according to the process conditions and system needs of the valves.
Our company has a comprehensive computer-aided design systems and sophisticated computer numerically equipment in production, processing and testing. We are strictly according to the international quality system standard ISO9001 for production.
We specialize in soft sealed butterfly valves and gate valves of wafer type, flange type and groove type, which are widely applied in petroleum, chemical, natural gas, food, water supply and other industrial areas.
The valves of EXXON are highly appreciated at home and abroad. Even though there is a fierce competition in the market nowadays, EXXON obtains a steady and efficient development being guided by our manage principle, that is, guided by the science & technology, guaranteed by the quality, adhere to sincerity and target at excellent service...
We persist in the pursuit of excellence, strive to build EXXON brand. Great effort will be made to achieve common progress and development with all of you and creating a better future.
