Specification
Pressure: Class150LB~2500LB
Size: DN12-DN600Product
Material: Carbon steel, stainless steel, alloy steel, dual phase steel, special materials, etc
Design standard: API 6D, ASME B 16.34
Structural length: API 6D, ASME B 16.10
Butt-welding ends: ASME B 16.25
Flanged ends: ASME B 16.5
Test & inspection: API598, BS6755
Main Feature:

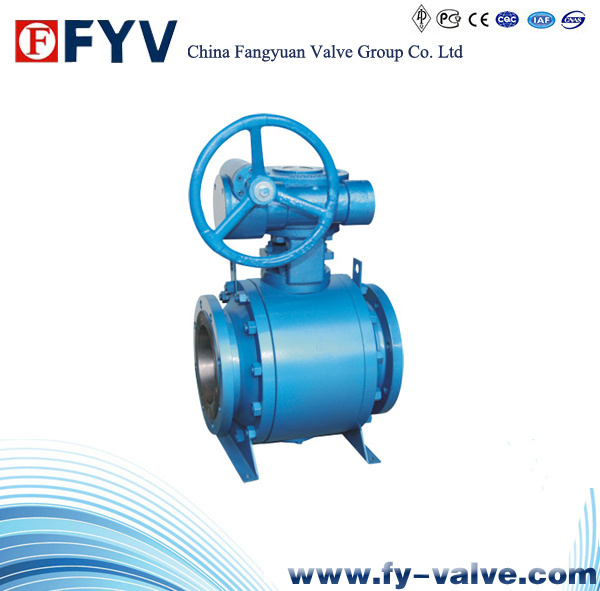

Design features of metal to metal sealed ball valve
Except for such features as wrong operation prevention, stem blow-out proof, mounting, pad provided, the metal to metal sealed ball valves made by our company's possess the following unique features.
Valve stuck under high temperature prevented
In the case of high temperature working condition, the valve seat and ball would easily get stuck due to heat expansion, and the valve could not be open. Metal to metal sealed ball valves made by our company's are employ the patented design of bevelling spring loading, which would absorb the heat expansion of parts caused by the bevelling spring. So it is ensured that the valve would not get stuck and be opened and closed easily in the case of high temperature condition.
An entire fire safe structure
The metal to metal sealed structure has been adopted for the valve sealing surface design. Packing is so designed with graphite, and gasket is so designed with stainless steel, plus graphite that the valve can assure reliable tightness even under fire condition.
Natural anti-static structure
Metal to metal sealed ball valve with its bodyseat, ball, other metal parts, and so forth, closely contact with each other, having naturally formed a static electricity passage. In this respect, there is no need to provide special anti-static device.
Double-block and bleed function
Our company's metal to metal sealed trunnion ball valve is in general of the front ball sealing structure. Actually, two seats of the metal to metal sealed trunnion ball valve can both cut off separately the medium at inlet and outlet to realize double-block function. When the valve is closed, the body vavity and both the bore ends can be blocked with each other even if both ends of the valve are under pressure at the same time. Whereas the medium left in the body cavity may relieve through the relief valve.
Our company's metal to metal sealed floating ball valve is of behind ball sealing structure, employing in general single direction tightness. The flow direction is indicated on the valve body. If specially required by customers, Our's bi-direction sealing design may be selected.
Our Advantages:
1. We Are Factory: FYV has 3 production bases and 1 foundry which located in Wenzhou, Shanghai and Lishui city of China. The Factory Size in Square Meters: 110, 000. FYV has over 600 staff members, more than 60 technical engineers, a digital process center and more than 350 sets of various middle and large equipments. The annual sales revenue reaches above $80 million US Dollars.
2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.
5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.
6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.
7. Quick Delivery: We have the large stock for some hot products.
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
