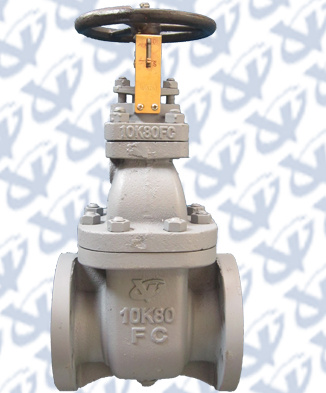

The JIS marine valve are used for controlling the medium to open and close in fuel oil , lubricating oil, water and steam piping at or under the temperature of 120ºC. The flange dimensions are according to JIS B2220 standard of steel pipe.
Size: DN50-400
Capability
Materials of Major Parts
|
Nominal Pressure |
16kgf/cm²(1.57Mpa) |
|
Seal Pressure |
17.6kgf/cm²(1.73Mpa) |
|
Intensity Pressure |
24kgf/cm²(2.36Mpa) |
|
Medium |
Max Pressure kgf/cm²(Mpa) |
|
Saturation steam |
Φ< 200 8kgf/cm² |
Φ< 250 5kgf/cm² |
|
Oil & flow water |
16kgf/cm² |
|
Lenitic water ≤120ºC |
21kgf/cm² |
|
Nominal Pressure |
5kgf/cm²(0.49Mpa) |
|
Seal Pressure |
7.7kgf/cm²(0.76Mpa) |
|
Intensity Pressure |
10.5kgf/cm²(1.03Mpa) |
|
Medium |
Max Pressure kgf/cm²(Mpa) |
|
Saturation steam |
Φ< 200 3kgf/cm² |
Φ< 250 2kgf/cm² |
|
Oil & flow water |
5kgf/cm² |
|
Lenitic water ≤120ºC |
7kgf/cm² |
|
Nominal Pressure |
10kgf/cm²(0.92Mpa) |
|
Seal Pressure |
15.4kgf/cm²(1.52Mpa) |
|
Intensity Pressure |
21kgf/cm²(2.06Mpa) |
|
Medium |
Max Pressure kgf/cm²(Mpa) |
|
Saturation steam |
Φ< 200 5kgf/cm² |
Φ< 250 3kgf/cm² |
|
Oil & flow water |
10kgf/cm² |
|
Lenitic water ≤120ºC |
14kgf/cm² |
|
Part Name |
Material |
|
Name |
Mark (B) |
Name |
Mark (S) |
|
Body/Bonnet |
CI |
DI |
HT200.QT400-15 |
CI |
DI |
HT200.QT400-15 |
|
Disc/Seat |
Cast bronze |
ZCuSn5Pb5Znb |
S.S. |
2cr13 |
|
Stem |
Bronze |
QAI 9-2 |
S.S. |
2cr13 |
|
Packing |
Flexible graphite |
|
Flexible graphite |
|
